Cold shrink joint kit 1-36KV BH-CJK

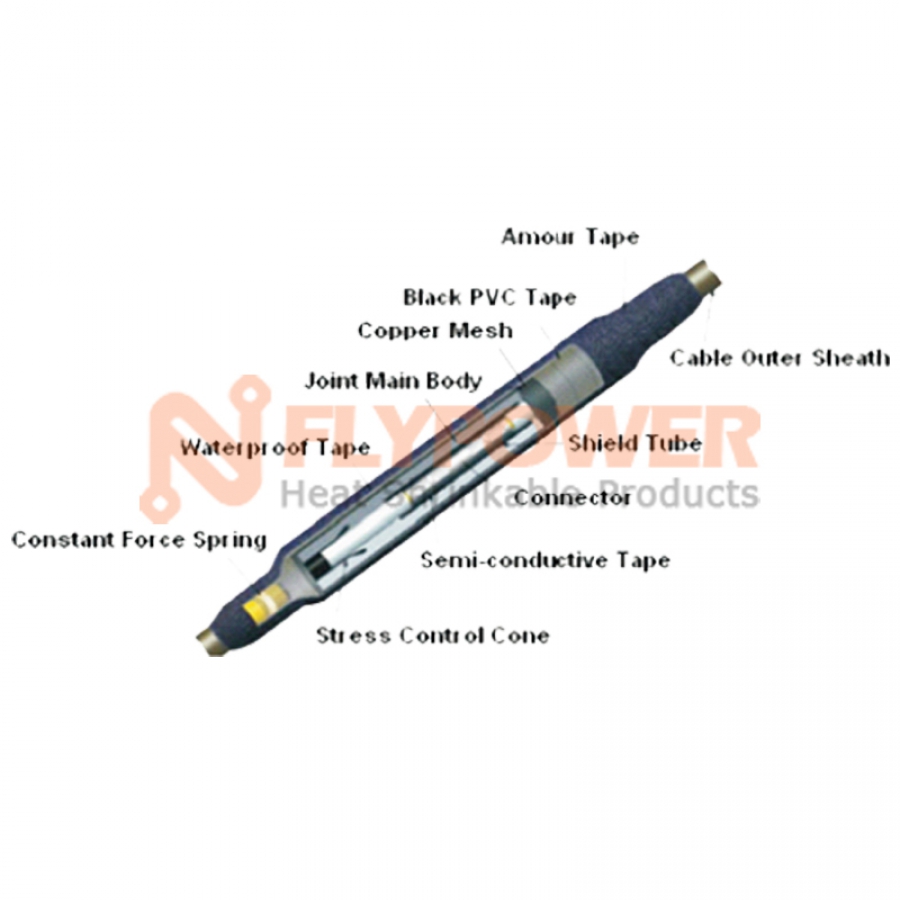

- Applications: BH-CJK cold shrink joint kit is suitable for 1 or 3-core XLPE cable with Al or Cu conductor (1-36kV). The joint body is made of advanced liquid silicone rubber with integrated stress control. This design vouches for the best possible interface,thereby greatly minimizing partial discharge and improving its performance during operation. The joint kit includes all the necessary components to make the installation.
-
Characteristics: Simple and fast installation, no tools required.
Sealing tight, high rebound even after prolonged years of aging and exposure.
No mastic or tape required. No torches or heat required.
Resists fungus, water, acids, alkalis and ozone. - Operating temperature range: N/A.
- Approvals / Specifications: RoHS
- Colors: Gray
|
Voltage U0/U (Um) |
Cores |
Cable Cross Section/mm2 |
Diameter over Insulation/mm |
Product No. |
|
26/35kV（36） |
1, 3 |
35-50 |
22-28 |
18/30kV--BH-CJ-1/1(3/1) |
|
70-120 |
26.5-33 |
18/30kV--BH-CJ-1/2(3/2) |
||
|
150-240 |
31.5-39 |
18/30kV--BH-CJ-1/3(3/3) |
||
|
300-400 |
35.5-43 |
18/30kV--BH-CJ-1/4(3/4) |
||
|
500-630 |
40.5-49 |
18/30kV--BH-CJ-1/5(3/5) |
||
|
12/20kV（24） |
1, 3 |
25-50 |
18-22.5 |
12/20kV--BH-CJ-1/1(3/1) |
|
70-120 |
21-26.5 |
12/20kV--BH-CJ-1/2(3/2) |
||
|
150-240 |
25.5-32 |
12/20kV--BH-CJ-1/3(3/3) |
||
|
300-400 |
32.5-37 |
12/20kV--BH-CJ-1/4(3/4) |
||
|
500-630 |
39-44.5 |
12/20kV--BH-CJ-1/5(3/5) |
||
|
8.7/15kV(17.5) |
1, 3 |
25-50 |
16-19.5 |
8.7/15kV--BH-CJ-1/1(3/1) |
|
70-120 |
19-27.5 |
8.7/15kV--BH-CJ-1/2(3/2) |
||
|
150-240 |
23.5-30 |
8.7/15kV--BH-CJ-1/3(3/3) |
||
|
300-400 |
30.5-35 |
8.7/15kV--BH-CJ-1/4(3/4) |
||
|
500-630 |
37-42.3 |
8.7/15kV--BH-CJ-1/5(3/5) |
||
|
6/10kV(12) |
1, 3 |
50-70 |
16-19.5 |
6/10kV--BH-CJ-1/1(3/1) |
|
95-150 |
19-24.5 |
6/10kV--BH-CJ-1/2(3/2) |
||
|
185-300 |
23.5-30 |
6/10kV--BH-CJ-1/3(3/3) |
||
|
400-500 |
30.5-38 |
6/10kV--BH-CJ-1/4(3/4) |
||
|
630 |
37-42.3 |
6/10kV--BH-CJ-1/4(3/4) |
||
|
0.6/1kV(1.2) |
1, 3, 4, 5 |
25-50 |
— |
0.6/1kV--BH-CJ-1(3,4,5)/1 |
|
70-120 |
0.6/1kV--BH-CJ-1(3,4,5)/2 |
|||
|
150-240 |
0.6/1kV--BH-CJ-1(3,4,5)/3 |
|||
|
300-400 |
0.6/1kV--BH-CJ-1(3,4,5)/4 |
