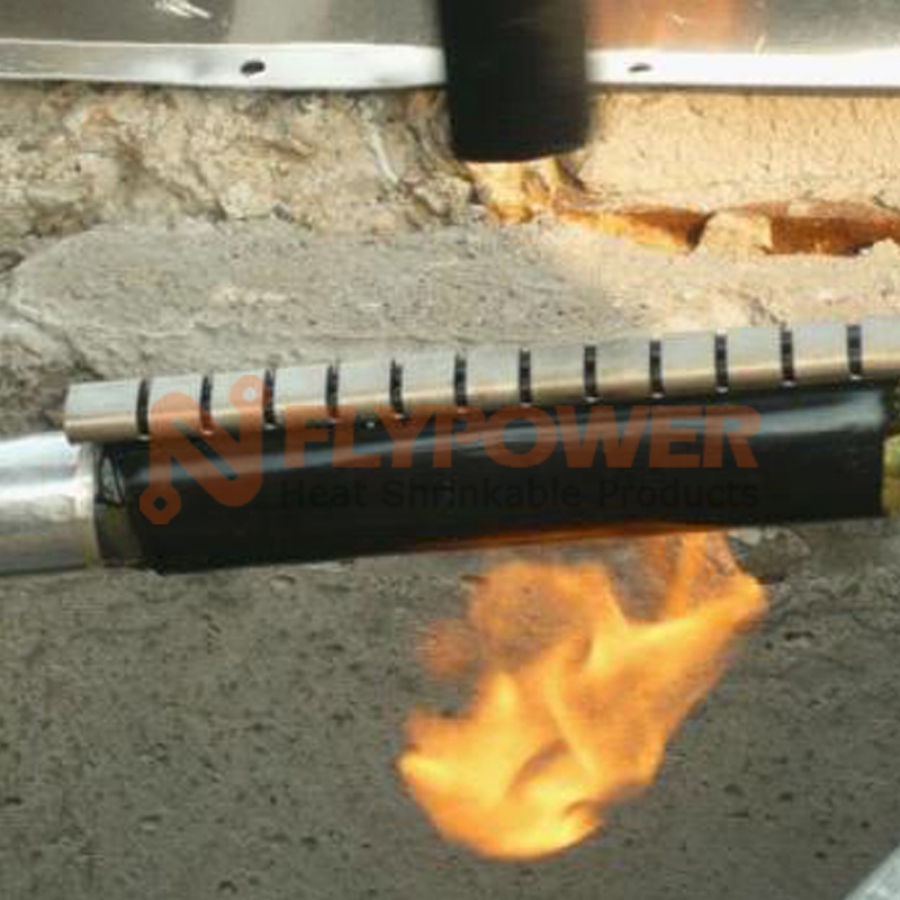

Cable Repair sleeve BH-RSW
- Applications: BH-RSW Cable Repair Sleeve which provides exceptional benefits in the repair and retrofit protection of aging cable infrastructures without disconnection of service.
- Characteristics: Reduces total installed costs by 80%,eliminates system downtime during installation; Provides moisture proof seal with a fully encapsulating hot melt adhesive; Offers quick and easy application using an innovative closure mechanism.
- Operating temperature range: Minimum fully recovery temperature: 120ºC
- Approvals / Specifications: RoHS
- Colors: Black
|
Model No. |
As supplied Min. ID（mm） |
After covered Max ID（mm） |
Standard Length(mm) |
Application for cable OD(mm) |
|
BH-RSW 22/6-500 |
22 |
6 |
500 |
7～15 |
|
BH-RSW 36/10-500 |
36 |
10 |
500 |
12～20 |
|
BH-RSW 50/15-600 |
50 |
15 |
600 |
20～40 |
|
BH-RSW 60/18-700 |
60 |
18 |
700 |
30～50 |
|
BH-RSW 70/22-800 |
70 |
22 |
800 |
35～60 |
|
BH-RSW 80/25-900 |
80 |
25 |
900 |
40～70 |
|
BH-RSW 100/30-900 |
100 |
30 |
900 |
50～90 |
|
BH-RSW 135/35-900 |
135 |
38 |
900 |
60～120 |
|
BH-RSW 164/45-900 |
164 |
45 |
900 |
80～150 |
|
BH-RSW 185/55-900 |
185 |
55 |
900 |
90～170 |
|
BH-RSW 200/60-900 |
200 |
60 |
900 |
100～180 |
|
BH-RSW 220/65-900 |
220 |
65 |
900 |
120～210 |
|
BH-RSW 240/70-1000 |
240 |
70 |
1000 |
130～220 |
|
BH-RSW 260/75-1000 |
260 |
75 |
1000 |
150～240 |
|
BH-RSW 280/80-1000 |
280 |
80 |
1000 |
180～260 |
|
BH-RSW 300/85-1000 |
300 |
85 |
1000 |
200～280 |
Remarks:
1. Special size, cut pieces are available on request;
2. Accessories: Heat shrinkable sleeve,stainless steel channel clip, cleaning tissue, aluminum foil,sandper.
|
Property |
Test Method |
Typical Data |
|
Tensile Strength |
ISO 37 |
17 MPa min. |
|
Ultimate Elongation |
ISO 37 |
350% min. |
|
Density |
ISO 1183 Method A |
1.0 – 1.2 g/cm3 |
|
Hardness |
ISO 868 |
50 – 70 D |
|
Accelerated Aging |
7 days at 150℃±2℃ ISO 188 |
|
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Thermal Endurance |
IEC 60216 |
120℃ |
|
Low Temperature Flexibility |
4 hours at –40℃±3℃ |
No cracking |
|
ASTM D2671 Procedure C |
||
|
Dielectric Strength |
IEC 60243 |
1 mm 180kV/cm |
|
min. 3.5 mm |
||
|
120kV/cm min. |
||
|
Volume Resistivity |
IEC 60093 |
1 x 1012Ω cm min. |
|
Dielectric Constant |
IEC 60250 |
5 max. |
|
Water Absorption |
14 days at 23℃±2℃ ISO 62 Method |
0.5% max. |
|
Resistance to Liquids |
7 days in transformer oil |
|
|
at 23℃±2℃(VDE 0370) ISO 1817 |
||
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Resistance to Fungi |
ASTM G21 |
Pass Rating 1 |
