630A top bus bar flexible connection system BH-FCS

630A top bus bar flexible connection system BH-FCS
Download attachments: English BH-FCS 中文 BH-FCS

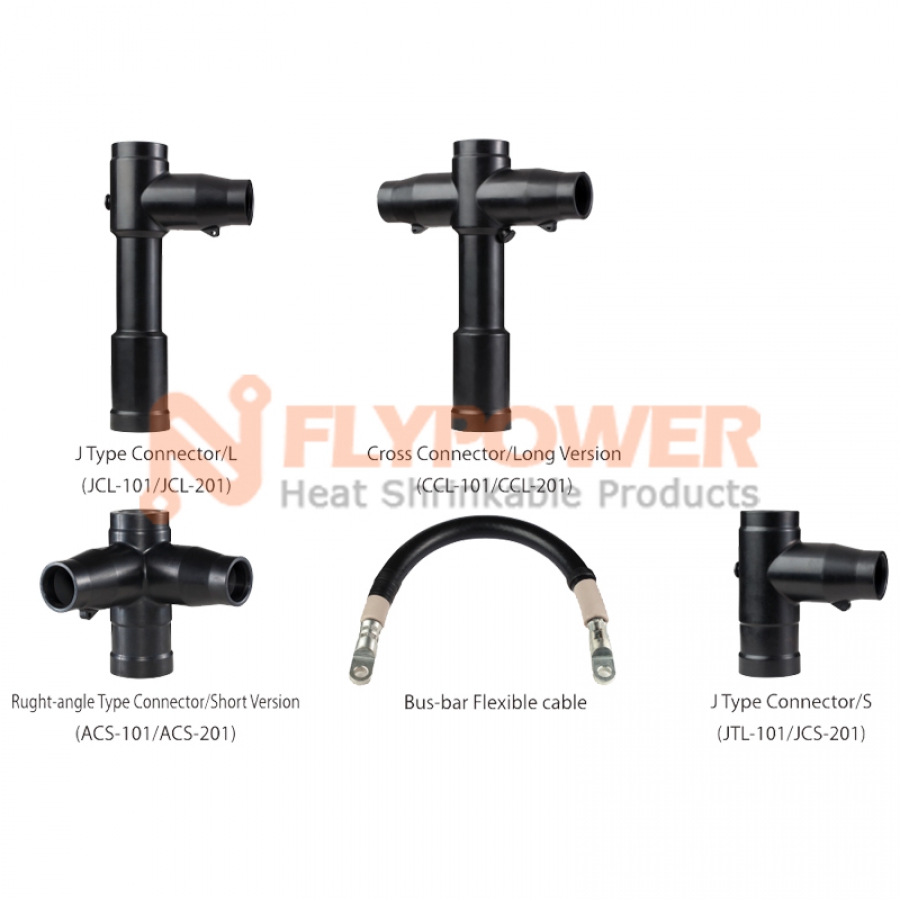

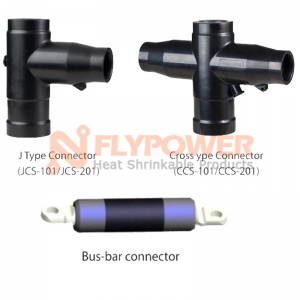

  • Applications: BH-FCS 630A top bus bar flexible connection system, Europe style cross connector and J type connector is made of EPDM rubber, mainly applied for the top connection of RMU and cable branch system to fit the loaded switch socket with sealing and insulation function; such special designed connector can be also made screened or unscreened, the RMU can be made more compact and reliable with such special designed connector to balance performance and cost at the same time. Assembled with 630A Europe style cross type connector and bus bar connector, the bas bar system can be realized with multi-connection to the series of switch gears to optimize the connection solution.
  • Characteristics: 100% factory tested before shipment, quality guaranteed;
    With special designed bus bar to realize quick and easy installation;
    With compact design to fit different RMU and cable branch box with various requirements;
    Complete insulation, sealing, screened/unscreened and touchable/untouchable.
  • Operating temperature range: N/A.
  • Approvals / Specifications: Meet: IEC60502-4, GB/T 12706.4.
  • Colors: Black




Performance

CC/JS/AC-101

CC/JS/AC-201

Rated voltage

8.7/15(17.5)kV

12/20(24)kV

Max. operating voltage

17.5kV

24 KV

Rated continuous current

630A

630A

Partial discharge

15kV/≤10pC

21kV/≤10pC

A.C withstand voltage

39kV/5min

54kV/5min
