Self supporting aerial cable closure BH-SAC
- Applications: BH-SAC self supporting aerial cable closure or aerial free breathing mechanical joint closure. It is free breathing and suitable for straight, butt, and branch splices of non-pressurized communication cables. aerial closure is a single piece aerial closure easily used in installation and maintenance of aerial telecom cables. The one piece construction permits complete splice access, without removal of the closure or bonding of the cables.
-
Characteristics: Easy-clip closing and re-opening;
Suitable for suspension from overhead spans;
Up to 3 cable inlets and outlets at each end;
Free opening/closing with latches, which verily achieve a zero-cost reentry without any special tools;
Ventilation holes at both sides of closure body perform both venting and draining functions;
Made from durable, rugged material. -
Operating temperature range: Environmental Temperature: -40°C to +65°C
Pressure: 70~106Kpa
Operation Temperature: -30°C~+65°C - Approvals / Specifications: RoHS
- Colors: Black
| Model | Closure Outer Dia. (mm) |
Closure Overall Length (mm) |
Max. Opening Length (mm) |
Max. Splice Dia.(mm) | Cable Dia. | Applicable Cable Pairs(wire gauge 0.4mm) | Notes | |
| Main Cable | Branch Cable(up to two branches) | |||||||
| BH-SAC-50/20-200 | 77 | 305 | 200 | 50 | 5-25 | - | 10-50 | Straight Type |
| BH-SAC-56/25-350 | 82 | 480 | 350 | 56 | 5-25 | - | 50-100 | |
| BH-SAC-56/25-500 | 82 | 690 | 500 | 56 | 5-25 | - | 100-200 | |
| BH-SAC-92/45-500 | 115 | 690 | 500 | 92 | 5-45 | - | 200-400 | |
| BH-SAC-50/25-200 | 77 | 305 | 200 | 50 | 5-25 | 5—15 | 10-50 | Branch Type |
| BH-SAC-56/25-350 | 82 | 480 | 350 | 56 | 5-25 | 5—15 | 50-100 | |
| BH-SAC-56/25-500 | 82 | 690 | 500 | 56 | 5-25 | 5—15 | 100-200 | |
| BH-SAC-92/45-500 | 115 | 690 | 500 | 92 | 5-45 | 5—15 | 200-400 | |

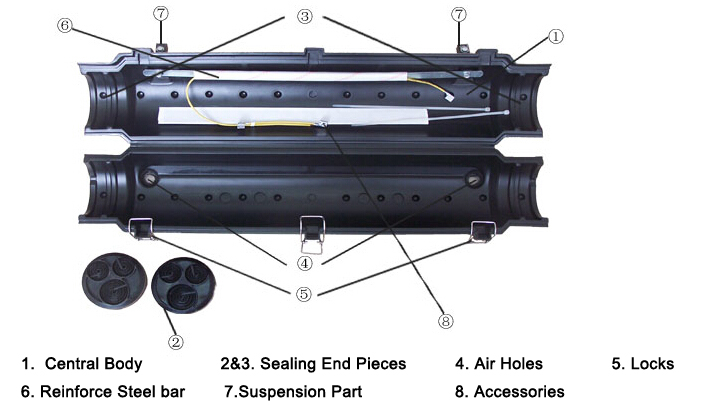

Accessories: Closure Body, End seals(2 pieces) ,Ruler (1 piece, to measure the circumferential length of cables),
Nylon cable ties(4 pieces), Shield continuity wire and connector (1 kit), Knife , PVC tape (1 roll).
