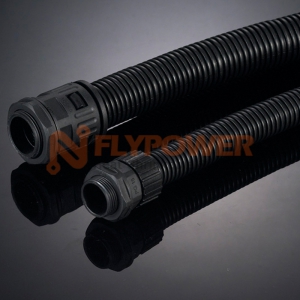

Standard soft PE(Polyethylene) corrugated pipe BH-PE

Standard soft PE(Polyethylene) corrugated pipe BH-PE
  • Applications: For machine tools, electrical equipment, food machinery, automation instrument, motors, Protection the cables and wires to avoid abrasion.
  • Characteristics: Excellent flexibility,not recommend use outdoor. Anti-ozone force: General; Load bearing: General; Alkali resistance: General; Cutting fluid resistance: Excellent; Acid resistance: Excellent; Oil resistance: Excellent.free of halogen, phosphor and cadmium passed RoHS
  • Operating temperature range: -30 ºC ~ +100 ºC, short time up to +120 ºC
  • Approvals / Specifications: RoHS
  • Colors: Black, Gray, Other colors available on request
FLYPOWER recommends using PE (polyethylene) corrugated pipe in the following condistions:

No oxidizing acid,animal oil, vegetable oils, mineral oil environment.no environmental aliphatic hydrocarbons, aromatic hydrocarbons, ketones, esters and other organic solvents.

Mainly used in the environmental temperature range of -30 ~ 100 ºC; used automoibles, motorcycles and other vehicles wiring harness protection. can be used for household appliances, precision machine tools and other equipment wiring harness protection .

Product Dimensions

Model ID * OD
(mm)
Curving radius Units
(M/Roll)
BH-PE-7.0 4.5 * 7.0 10 200
BH-PE-10.0 6.5 * 10.0 15 100
BH-PE-11.6 8.6 * 11.6 20 100
BH-PE-13.0 10.0 * 13.0 20 100
BH-PE-15.8 12.0 * 15.8 28 100
BH-PE-18.5 14.3 * 18.5 35 100
BH-PE-20.0 16.0 * 20.0 38 100
BH-PE-21.2 17.0 * 21.2 40 100
BH-PE-25.0 20.0 * 25.0 42 100
BH-PE-28.5 23.0 * 28.5 45 100
BH-PE-30.0 24.0 * 30.0 50 100
BH-PE-32.0 25.0 * 32.0 50 50
BH-PE-34.5 29.0 * 34.5 55 50
BH-PE-42.5 36.0 * 42.5 70 25
BH-PE-54.5 48.0 * 54.5 80 25

Special size, cut pieces are available on request.
