SEMI-RIGID ADHESIVE-LINED HEAT SHRINK TUBING SHRINK RATIO 4:1 BH-BK

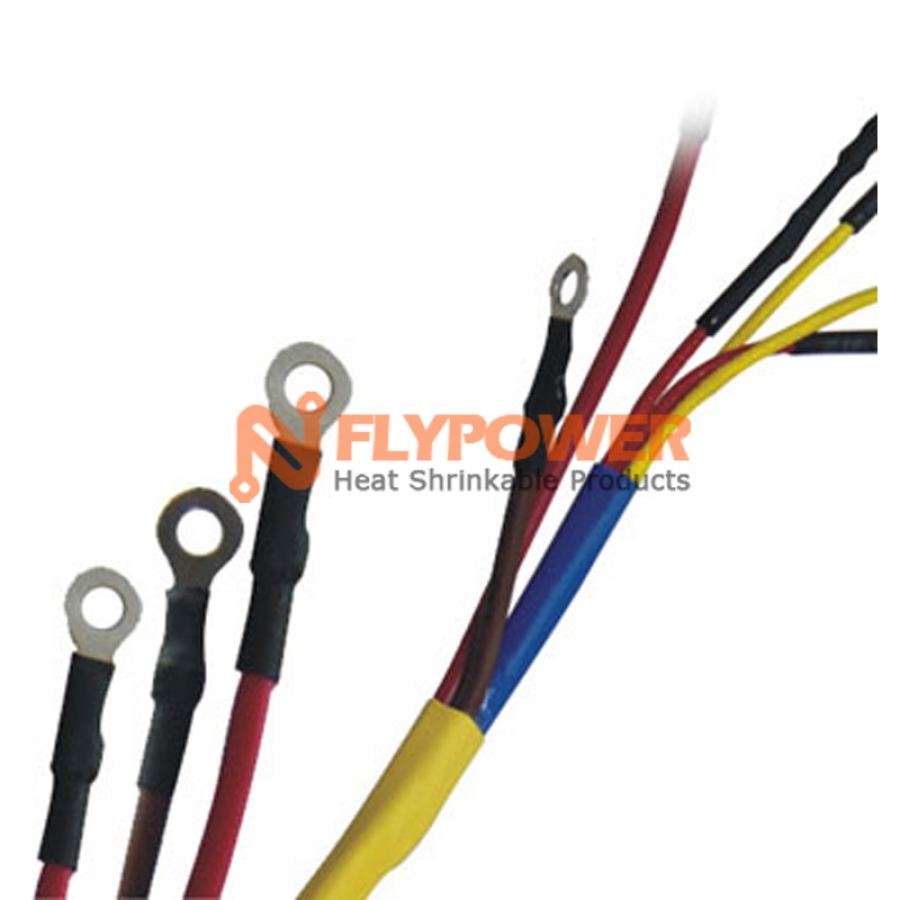

- Applications: Semi-rigid adhesive-lined heat shrink tubing specially designed to protect splices and joint of wire harness, and other components against environment damage
- Characteristics: Semi-rigid make it more abrasion resistant component with common tubing,4:1 shrink ratio make it easily to fit a wide range of component, and thicker adhesive coated layer forms effective barrier against fluids and moisture
-
Operating temperature range: Operating temperature: -45℃~+125℃
Minimum shrink temperature: 120℃ - Approvals / Specifications: CE
- Colors: Black, Transparent
| Normal size (mm) |
As supplied(mm) | After recovered (mm) | Standard length (m) | ||
| Inside diameter（Min.） | Inside diameter(Max.) | Wall thickness (mm) | Adhesive thickness (mm)(nom.) | ||
| BH-BK6/1.27 | 6 | 1.27 | 1.3 | 0.56 | 1.22 |
| BH-BK 8/1.65 | 8 | 1.65 | 1.52 | 0.76 | 1.22 |
| BH-BK 12/2.41 | 12 | 2.41 | 1.91 | 1.02 | 1.22 |
| BH-BK 18/4.45 | 18 | 4.45 | 2.41 | 1.37 | 1.22 |
Special size, cut pieces are available on request.
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
14MPa (min.) |
|
Tensile strength after aging(158℃, 168hrs) |
ASTM D 2671 |
Remains 70% |
|
Elongation at break |
ASTM D 2671 |
300% (min.) |
|
Elongation at break after aging (158℃, 168hrs) |
ASTM D 2671 |
100% (min.) |
|
Longitudinal shrinkage |
UL 224 |
0 to -10% |
|
Heat shock |
250℃, 4hrs. |
No cracking, no dropping |
|
Cold bend (-30℃,1hr.) |
ASTM D 2671 |
No cracking |
|
Voltage withstand (AC 2500V, 60 seconds) |
ASTM D 2671 |
No breakdown |
|
Volume resistance |
ASTM D 876 |
1014Ω.cm(min.) |
|
Flammability |
SAE-AMS-DTL-23053/5 |
Self-extinguish in 30 sec. |
|
Copper corrosion(158℃,168hrs.) |
UL 224 |
Pass |
|
Water absorption |
ASTM D 570 |
<0.5% |
