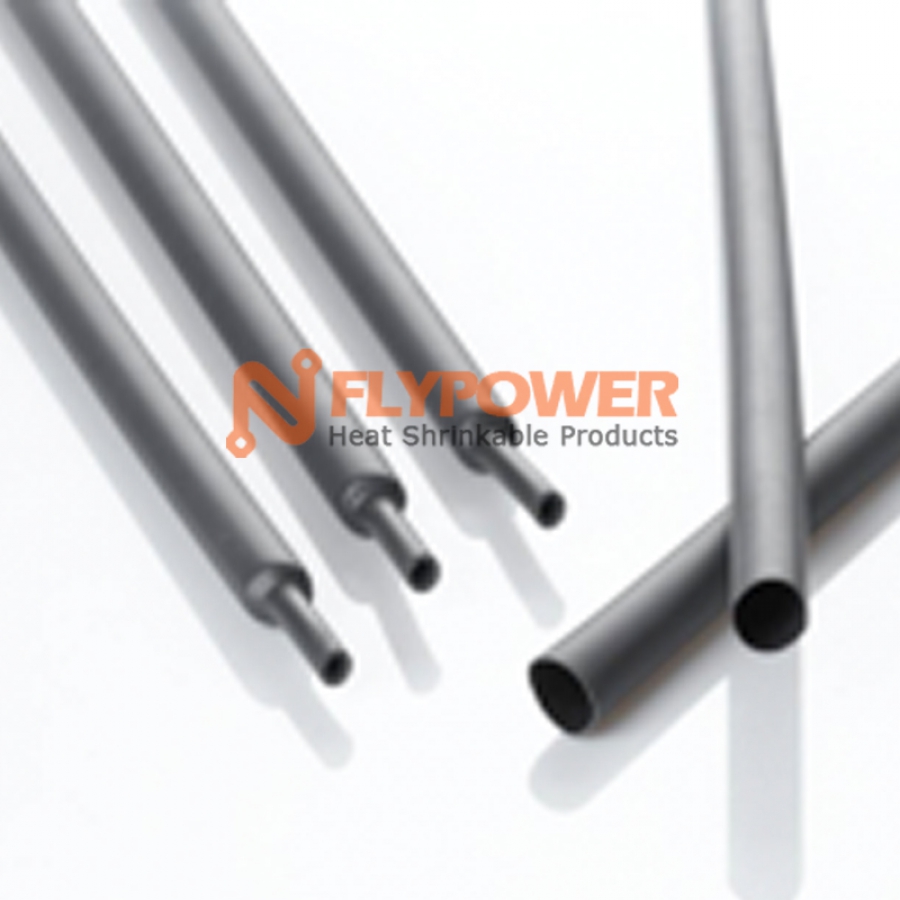

MEDIUM WALL POLYOLEFIN HEAT SHRINKABLE TUBING BH-B2
- Applications: Medium wall polyolefin heat shrinkable tubing designed for applications to seal and protect 1KV power cable terminations and joints
- Characteristics: BH-B2 is semi-flexible medium wall tubing with continuous length and without hot melt adhesive
- Operating temperature range: Minimum fully recovery temperature: 120℃
- Approvals / Specifications: CE
- Colors: Black, Red
|
Normal size(mm) |
As supplied (mm) |
After recovered (mm) |
Style |
Standard length(mm) |
|
|
Inside diameter(min.) |
Inside diameter(Max.) |
Wall thickness(mm) |
|||
|
8/2 |
8 |
2 |
1.7 |
— |
30 |
|
12/3 |
12 |
3 |
2.0 |
— |
30 |
|
16/5 |
16 |
5 |
2.2 |
— |
30 |
|
22/6 |
22 |
6 |
2.5 |
— |
30 |
|
33/10 |
33 |
10 |
2.7 |
— |
30 |
|
40/12 |
40 |
12 |
2.7 |
— |
30 |
|
48/16 |
48 |
16 |
2.7 |
— |
30 |
|
55/19 |
55 |
19 |
2.7 |
— |
30 |
*Style “O” : Round shape or Oval, “ – ”:Flattened
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55 to +110℃ |
|
Tensile strength |
ASTM D2671 |
≥14MPa |
|
Elongation at break |
ASTM D2671 |
≥600% |
|
Density |
ASTM D792 |
1.05g/cm3 |
|
Longitudinal shrinkage |
UL224 |
0 to -10% |
|
Dielectric strength |
IEC243 |
≥20kV/mm |
|
Volume resistance |
IEC93 |
≥1014Ω.cm |
|
Dielectric constant |
IEC250 |
3.0 |
|
Water absorption |
ISO 62/23℃,14days |
<0.15% |
