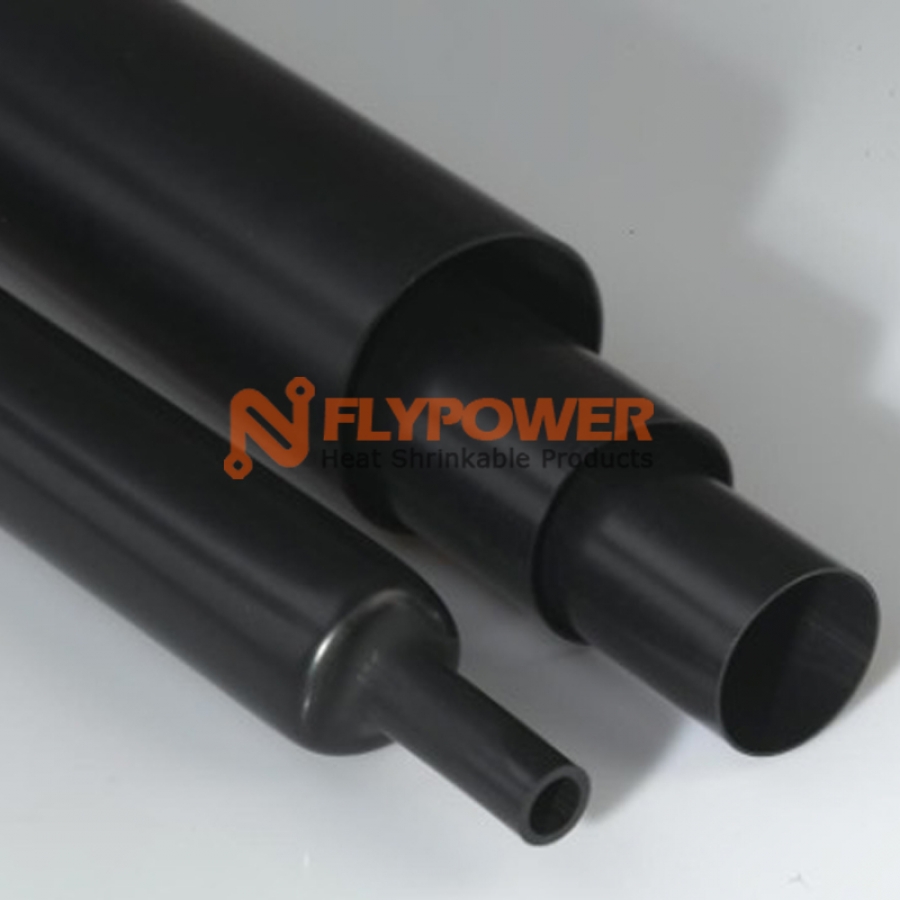

SEMI-CONDUCTIVE HEAT SHRINKABLE TUBING BH-CT
- Applications: BH-CT Simi-conductive tubing is manufactured with radiation cross-linked conductive polyolefin and suitable for application in power cable accessory.
- Characteristics: Specially developed chemical formulation makes the tubing provide effective insulation screen on the high voltage cable connectors manufactured with special technology.
-
Operating temperature range: Minimum shrink temperature: 100℃
Minimum fully recovery temperature: 120℃ - Approvals / Specifications: RoHS
- Colors: Black
|
Normal size (mm) |
As supplied (mm) |
After recovered (mm) |
Style |
Standard length (m/ea) |
|
|
Inside diameter (min.) |
Inside diameter (Max.) |
Total Wall thickness (Nom.) |
|||
|
BH-CT 33/8 |
33 |
8 |
2.4 |
O |
1.0-1.5m |
|
BH-CT 40/12 |
40 |
12 |
2.5 |
O |
1.0-1.5m |
|
BH-CT 45/17 |
45 |
17 |
2.8 |
O |
1.0-1.5m |
|
BH-CT 55/16 |
55 |
16 |
2.8 |
O |
1.0-1.5m |
|
BH-CT 75/22 |
75 |
22 |
3.0 |
O |
1.0-1.5m |
|
BH-CT 95/25 |
95 |
30 |
3.1 |
O |
1.0-1.5m |
| Property | Test Method | Typical Data |
| Operating temperature | IEC 216 | -40℃to +110℃ |
| Tensile strength | ASTM D 638 | ≥13.5Mpa |
| Elongation at break | ASTM D 638 | ≥400% |
| Density | ASTM D792 | 1.05g/cm3 |
| Longitudinal shrinkage | UL224 | 0 to±5% |
| Volume resistance | IEC 93 | ≤104Ω.cm |
| Ultimate elongation after aging | ASTM D2671（150℃/168hrs） | ≥300% |
| Water absorption | ISO 62 | ≤0.15% |
