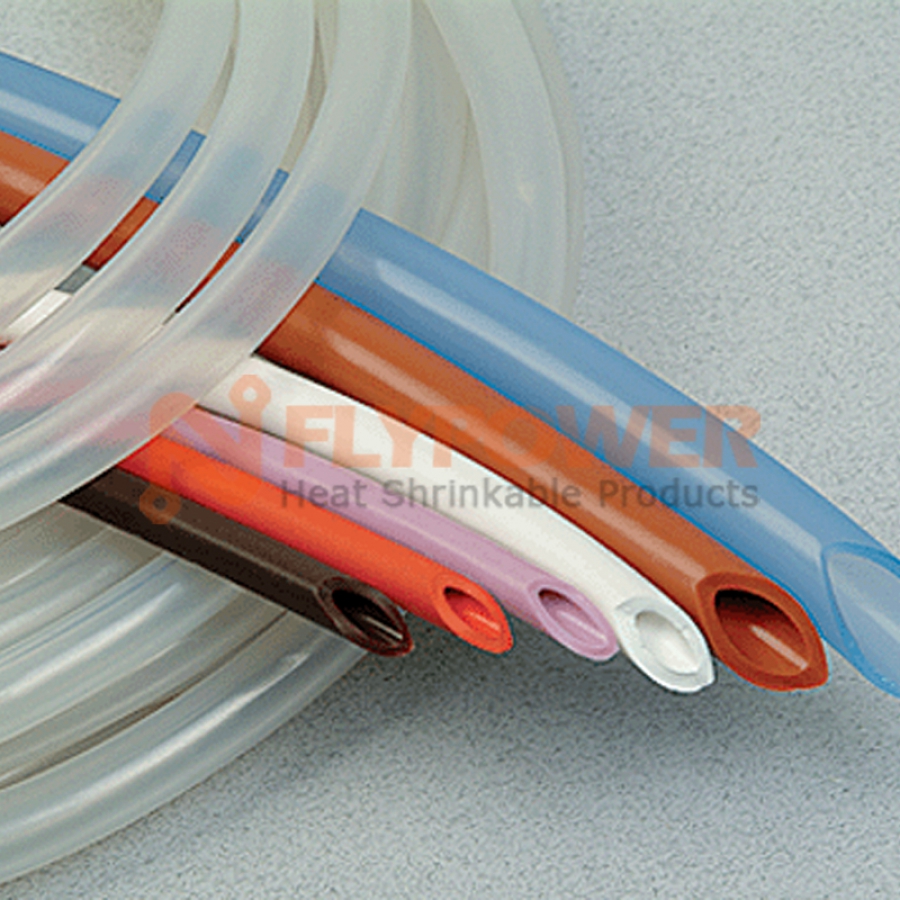

Food grade silicon rubber tubing BH-FSR
- Applications: BH-FSR food silicon rubber tubing general Insulating protection for various household appliances, light fitting, machines , electronic instruments, etc.
- Characteristics: Good flexibility and arc resistance performance.
- Operating temperature range: -60°C～ +200°C
- Approvals / Specifications: RoHS
- Colors: Red, Yellow, Blue, White, Transparent
I.D (mm)
I.D tolerance
(mm)
Average Wall Thickness (mm)
Standard Package
2500V
4000V
6000V
7000V
0.8
0.8±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
200
1.0
1.0±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
200
1.5
1.5±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
200
2.0
2.0±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
100
2.5
2.5±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
100
3.0
3.0±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
100
3.5
3.5±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
100
4.0
4.0±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
100
4.5
4.5±0.10
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
100
5.0
5.0±0.20
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
5.5
5.5±0.20
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
6.0
6.0±0.20
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
6.5
6.5±0.20
0.5 ± 0.10
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
7.0
7.0±0.20
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
7.5
7.5±0.20
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
8.0
8.0±0.25
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
9.0
9.0±0.25
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
25
10.0
10.0±0.25
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
11.0
11.0±0.30
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
25
12.0
12.0±0.30
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
25
13.0
13.0±0.30
/
1.0 ± 0.15
1.5 ± 0.20
2.0 ± 0.25
50
14.0
14.0±0.30
/
/
1.5 ± 0.20
2.0 ± 0.25
50
15.0
15.0±0.30
/
/
1.5 ± 0.20
2.0 ± 0.25
25
20.0
20.0±0.30
/
/
/
2.0 ± 0.30
10
Property
Test Method
Standard required
Dielectric strength (kV/mm)
IEC243
≥18
Volume resistance ( Ω. Cm)
IEC93
≥1X1014
Tensile strength (Mpa)
ASTM D412
≥4 Mpa
Elongation
ASTM D412
≥201
Flammablility (White color only)
ISO 1210
FV-1
(M/Spool)
