Heat shrink joint kit 1-36KV BH-HJK

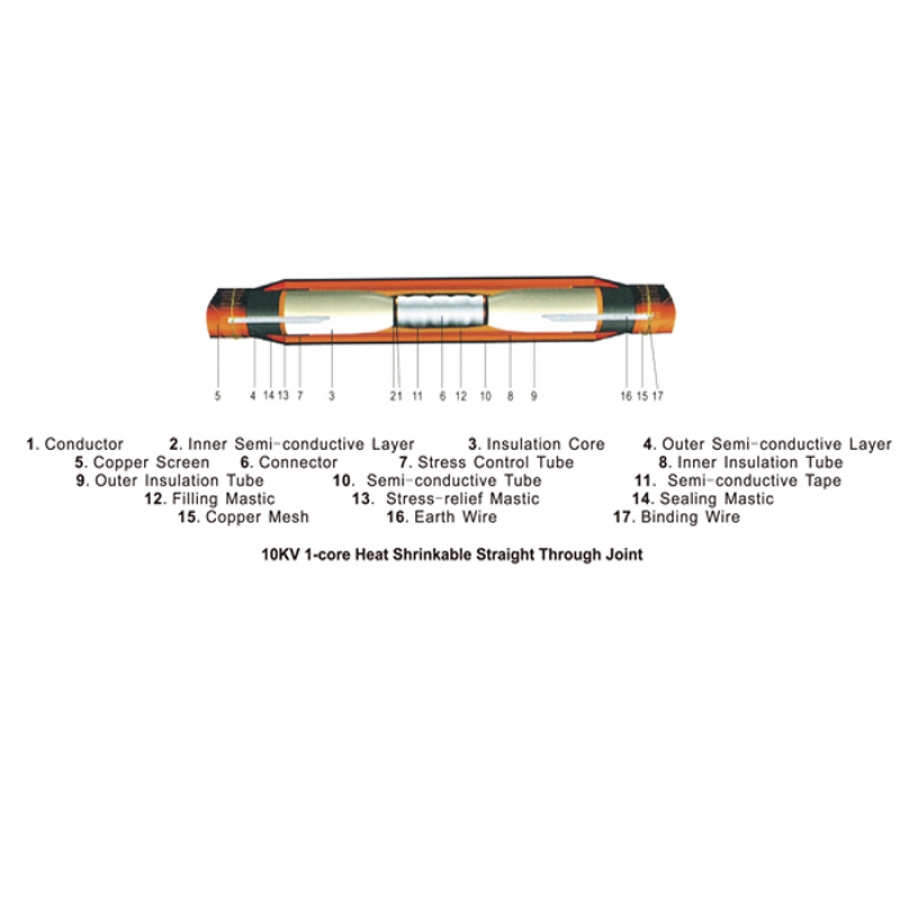

- Applications: BH-HJK heat shrink joint kit is suitable for 1 or 3-core XLPE cable(1-36kV). The joint body is made of advanced liquid silicone rubber with integrated stress control. This design vouches for the best possible interface, thereby greatly minimizing partial discharge and improving its performance during operation. The joint kit includes all the necessary components to make the installation.
- Characteristics: Simple and fast installation; Sealing tight, high rebound even after prolonged years of aging and exposure.
- Operating temperature range: N/A
- Approvals / Specifications: Meet:RWE Euro test according to DIN VDE0278-623.1997-01 (HD 623 S1: 1996-02)
- Colors: Red
Voltage U0/U (Um) Cores Cable Cross Section/mm2 Product No. 18/30kV（36） 1, 3 35-50 18/30kV--BH-HJ-1/1(3/1) 70-120 18/30kV--BH-HJ-1/2(3/2) 150-240 18/30kV--BH-HJ-1/3(3/3) 300-400 18/30kV--BH-HJ-1/4(3/4) 500-630 18/30kV--BH-HJ-1/5(3/5) 12/20kV（24） 1, 3 35-50 12/20kV--BH-HJ-1/1(3/1) 70-120 12/20kV--BH-HJ-1/2(3/2) 150-240 12/20kV--BH-HJ-1/3(3/3) 300-400 12/20kV--BH-HJ-1/4(3/4) 500-630 12/20kV--BH-HJ-1/5(3/5) 8.7/15kV(17.5) 1, 3 25-50 8.7/15kV--BH-HJ-1/1(3/1) 70-120 8.7/15kV--BH-HJ-1/2(3/2) 150-240 8.7/15kV--BH-HJ-1/3(3/3) 300-400 8.7/15kV--BH-HJ-1/4(3/4) 500-630 8.7/15kV--BH-HJ-1/5(3/5) 6/10kV--BH-HJ-1/4(3/4) 0.6/1kV(1.2) 1, 2,3, 4, 5 4-6 0.6/1kV--BH-HJ-1(2,3,4,5)/-1 10-16 0.6/1kV--BH-HJ-1(2,3,4,5)/0 25-50 0.6/1kV--BH-HJ-1(2,3,4,5)/1 70-120 0.6/1kV--BH-HJ-1(2,3,4,5)/2 150-240 0.6/1kV--BH-HJ-1(2,3,4,5)/3 300-400 0.6/1kV--BH-HJ-1(2,3,4,5)/4
