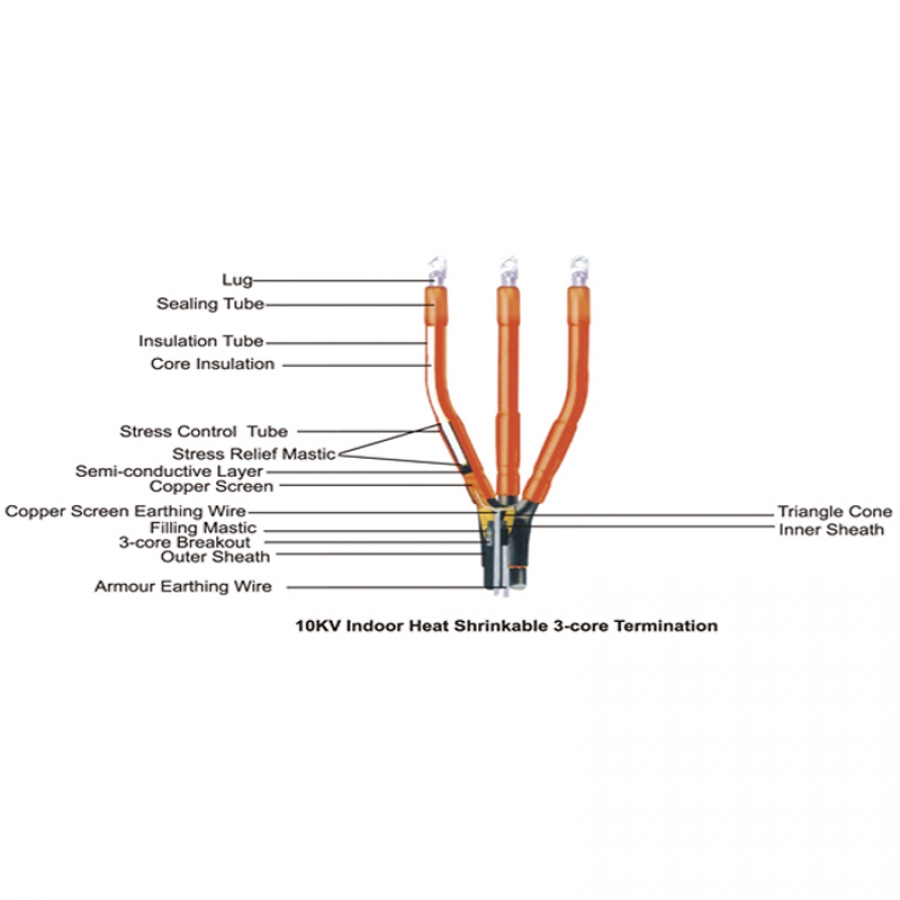

Heat shrink termination kit 1-36KV BH-HTK
- Applications: BH-HTK heat shrink termination kit is available for indoor & outdoor applications for single core and 3-core XLPE & PILLC cables up to 36kV. The termination kit includes all the necessary components to make the installation.
-
Characteristics: Simple and fast installation;
One-piece design with integrated stress control;
Offering protection against aging, tracking and erosion; High resistance to fungus, acid, alkalis and ozone; Accommodating a wide range of cable sizes. - Operating temperature range: N/A
- Approvals / Specifications: RoHS
- Colors: Red
|
Voltage U0 /U (Um) |
Cores |
Cross Section/mm2 |
Product No. |
|
|
Indoor Termination |
Outdoor Termination |
|||
|
18/30kV(36) |
3,1 |
35-50 |
18/30kV BH-HTI-3/1(1/1) |
18/30kV BH-HTO-3/1(1/1) |
|
70-120 |
18/30kV BH-HTI-3/2(1/2) |
18/30kV BH-HTO-3/2(1/2) |
||
|
150-240 |
18/30kV BH-HTI-3/3(1/3) |
18/30kV BH-HTO-3/3(1/3) |
||
|
300-400 |
18/30kV BH-HTI-3/4(1/4) |
18/30kV BH-HTO-3/4(1/4) |
||
|
500-630 |
18/30kV BH-HTI-3/5(1/5) |
18/30kV BH-HTO-3/5(1/5) |
||
|
12/20kV(24) |
3,1 |
35-50 |
12/20kV BH-HTI-3/1(1/1) |
12/20kV BH-HTO-3/1(1/1) |
|
70-120 |
12/20kV BH-HTI-3/2(1/2) |
12/20kV BH-HTO-3/2(1/2) |
||
|
150-240 |
12/20kV BH-HTI-3/3(1/3) |
12/20kV BH-HTO-3/3(1/3) |
||
|
300-400 |
12/20kV BH-HTI-3/4(1/4) |
12/20kV BH-HTO-3/4(1/4) |
||
|
500-630 |
12/20kV BH-HTI-3/5(1/5) |
12/20kV BH-HTO-3/5(1/5) |
||
|
8.7/15kV(17.5) |
3,1 |
25-50 |
8.7/15kV BH-HTI-3/1(1/1) |
8.7/15kV BH-HTO-3/1(1/1) |
|
70-120 |
8.7/15kV BH-HTI-3/2(1/2) |
8.7/15kV BH-HTO-3/2(1/2) |
||
|
150-240 |
8.7/15kV BH-HTI-3/3(1/3) |
8.7/15kV BH-HTO-3/3(1/3) |
||
|
300-400 |
8.7/15kV BH-HTI-3/4(1/4) |
8.7/15kV BH-HTO-3/4(1/4) |
||
|
500-630 |
8.7/15kV BH-HTI-3/5(1/5) |
8.7/15kV BH-HTO-3/5(1/5) |
||
|
0.6/1kV(1.2) |
4, 5, 3, 2, 1 |
4-6 |
0.6/1kV BH-HT-4(5,3,2,1)/(-1) |
|
|
10-16 |
0.6/1kV BH-HT-4(5,3,2,1)/0 |
|||
|
25-50 |
0.6/1kV BH-HT-4(5,3,2,1)/1 |
|||
|
70-120 |
0.6/1kV BH-HT-4(5,3,2,1)/2 |
|||
|
150-240 |
0.6/1kV BH-HT-4(5,3,2,1)/3 |
|||
|
300-400 |
0.6/1kV BH-HT-4(5,3,2,1)/4 |
|||
