15KV 200A screened elbow connector BH-ECA

15KV 200A screened elbow connector BH-ECA
Download attachments: English BH-ECA 中文 BH-ECA

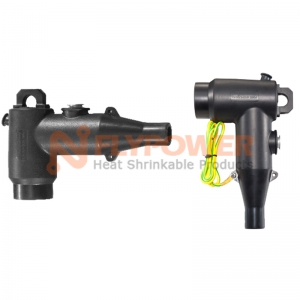

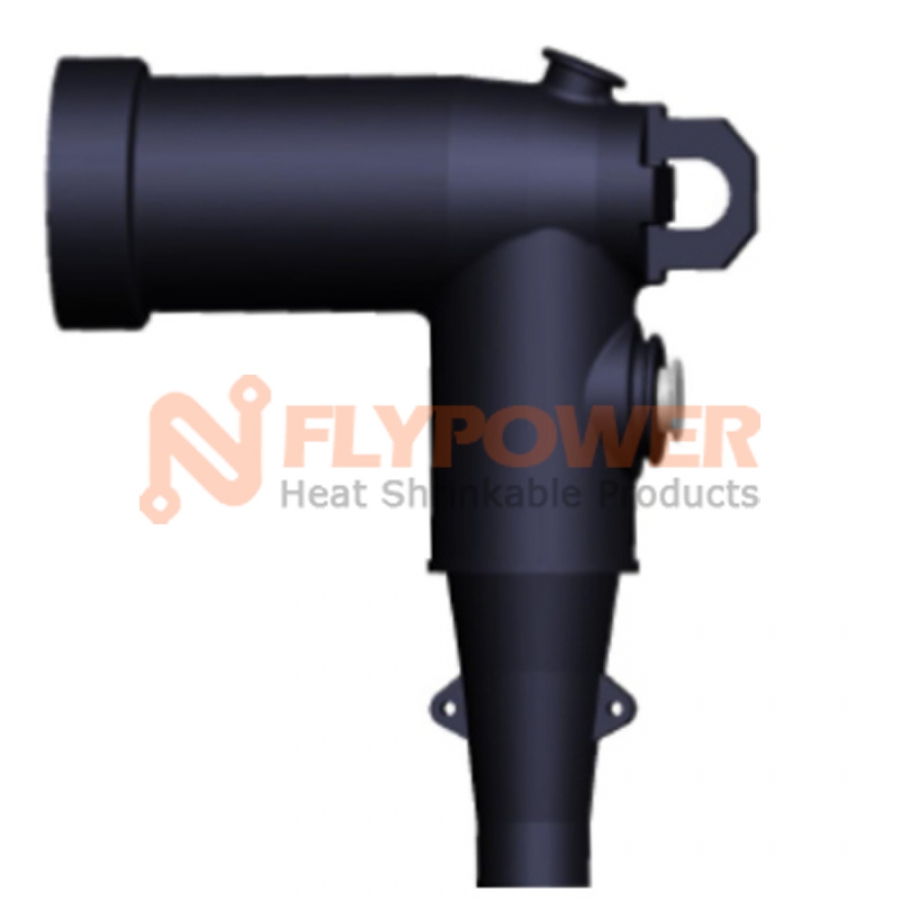

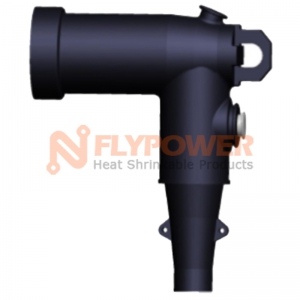

  • Applications: BH-ECA 15kV 200A Elbow type connector is applied for the connection to the transformer, RMU, cable branch system with the function of complete insulation, sealing and screened, the suitable range of cable is 35~120mm2.with function of arc distinguishing the special designed conductive connecting rod can be applied as the load breaker operating current at 200A.
  • Characteristics: 100% factory tested before shipment, quality guaranteed;
    Reliable locking system with simple and quick installation;
    Combined with insulation, sealing and touchable screened.
  • Operating temperature range: N/A
  • Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
  • Colors: Black



Size(mm)

Main insulation diameter (mm)

Cable cross-section

8.7/15 kV(mm2)

Φ 16

17-19

35-50

Φ 19

20-22

70-95

Φ 21

23-24

120





Main Compounds

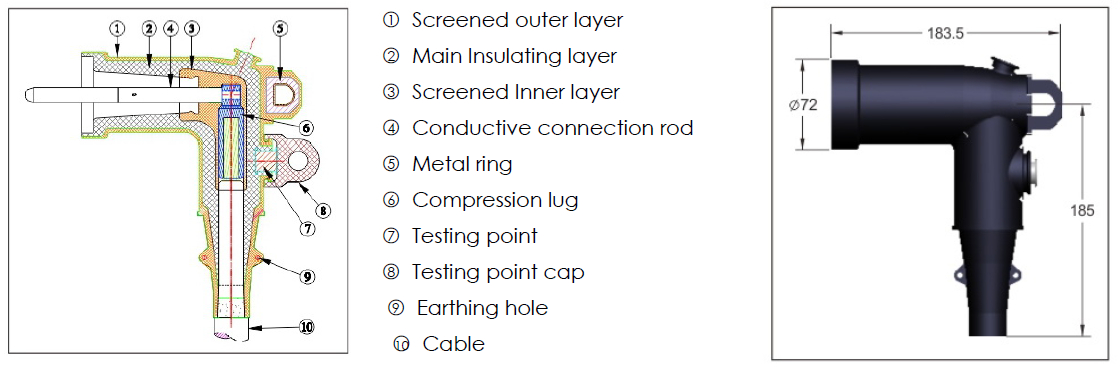

 1. Main body         2. Compression lugs       3. Testing point cap      4. Conductive connection rod

 5. Earthing wire     6.Sand paper                  7. Cleaning tissue         8. Silicon grease

Performance

BH-ECA-101

Rated voltage

8.7/15(17.5)kV

Rated continuous voltage

15kV

Max. operating voltage

17.5kV

Rated continuous current

200A

Partial discharge

15kV/≤10pC

A.C withstand voltage

39kV/5min
