Branch-off clip for the telecommunication cable branch connection BH-BOC
- Applications: BH-BOC branch-off clip is use together with the heat shrinkable tube as branching in the communication cable/railway signal cable joint connection, it could be divided into two, three and so on, to achieve a variety of cable perfect branch.
- Characteristics: It is casted by aluminum alloy which resists to high temperature and coating by high temperature paint on the surface, the middle toe is molding by EVA or PA hot melting adhesive.
- Operating temperature range: N/A
- Approvals / Specifications: RoHS
- Colors: Black
|

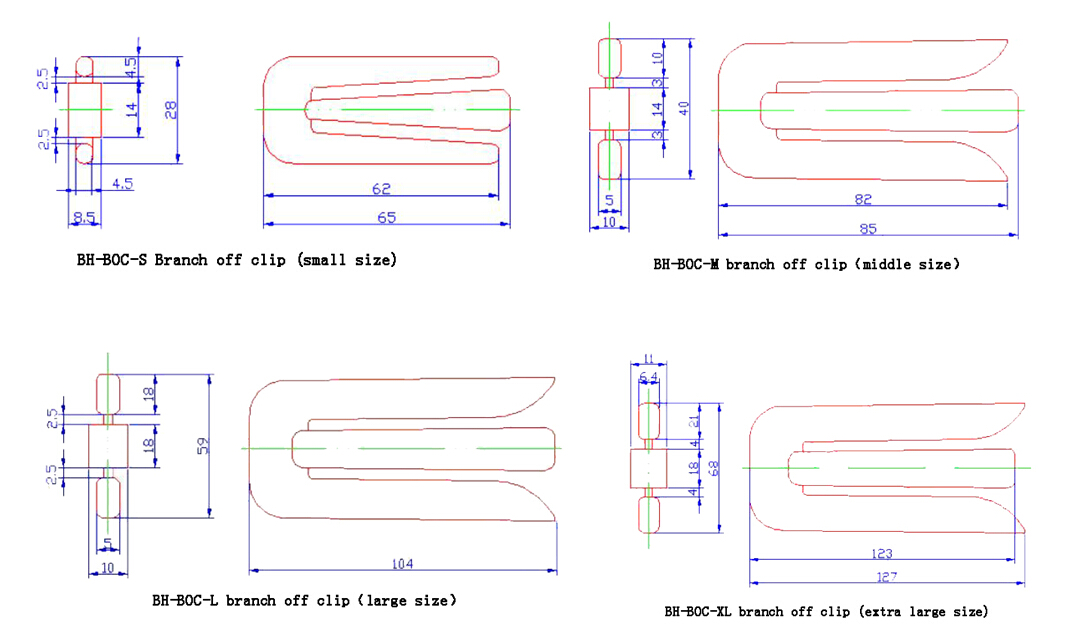

Model No. |
Applicable cable pairs |
Applicable heat shrinkable tubeDia.(mm) |
|
BH-BOC-S |
≤200 |
40-75 |
|
BH-BOC-M |
200-400 |
75-105 |
|
BH-BOC-L |
400-1200 |
105-140 |
|
BH-BOC-XL |
≥1200 |
≥140 |
