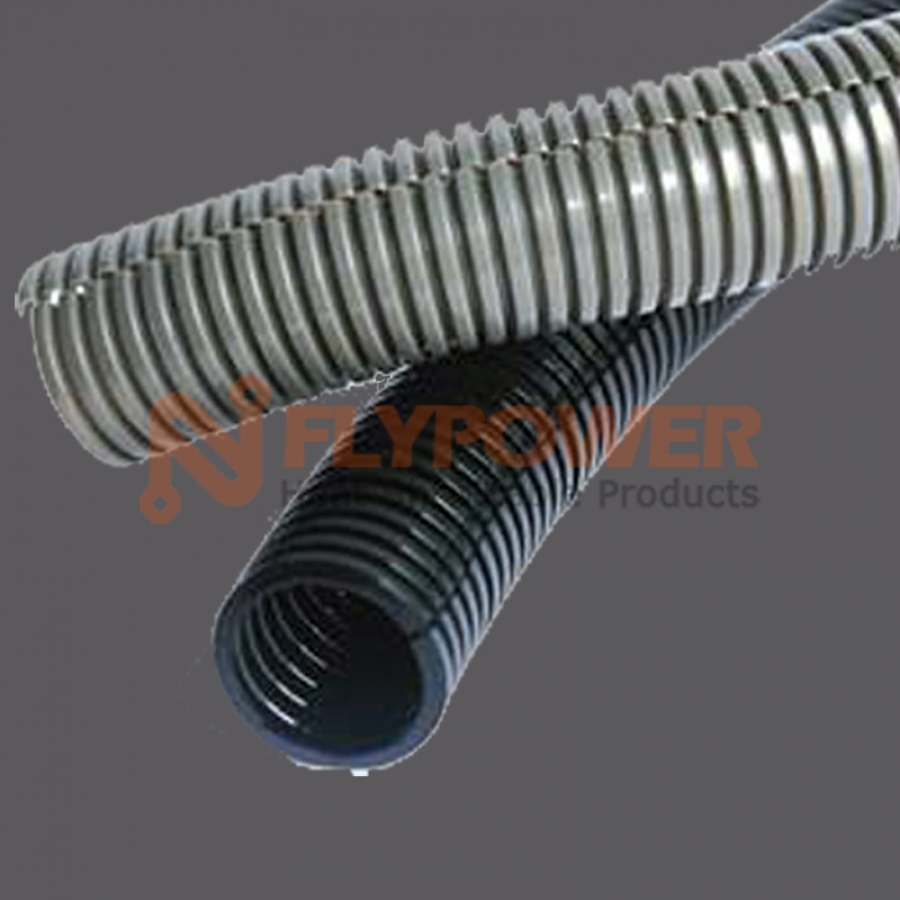

Split loom PP (Polypropylene ) corrugated pipe BH-PPK &PPKF
- Applications: For machine tools, electrical equipment, food machinery, automation instrument, motors, Protection the cables and wires to avoid abrasion.
- Characteristics: Oil resistant, excellent chemical resistance to acids,alkalies and corrosion, high mechanical strength, lack of flexibility,dim surface, free of halogen, phosphor and cadmium, passed RoHS .
-
Operating temperature range: -40 ºC ~ +110 ºC, short time up to
+130 ºC
Flame retardant: HB (UL94), according to FMVSS 302: <100mm/min - Approvals / Specifications: RoHS
- Colors: Black, Gray, Other colors available on request
FLYPOWER recommends using PPF (Polypropylene) corrugated pipe in the following condistions:
No high concentration of the oxidant and acid environment; it will be dissolved in benzene, toluene, chlorinated hydrocarbons and aromatic hydrocarbons uner temperaturer ≥ 80 ºC ;Oil resistant.
Mainly used in the environmental temperature range of -40 ~ 110 ºC ; Application for automobiles, motorcycles and other vehicles wiring harness prptection; can be used for household appliances, precision machine tools and other equipment wire harness sheath.
Product Dimensions
| Model | ID * OD (mm） |
Curving radius | Units (M/Roll) |
|
| Non-flame etardant | Flame retardant | |||
| BH-PPK-7.0 | BH-PPKF-7.0 | 4.5 * 7.0 | 10 | 200 |
| BH-PPK-10.0 | BH-PPKF-10.0 | 6.5 * 10.0 | 15 | 100 |
| BH-PPK-11.6 | BH-PPKF-11.6 | 8.6 * 11.6 | 20 | 100 |
| BH-PPK-13.0 | BH-PPKF-13.0 | 10.0 * 13.0 | 20 | 100 |
| BH-PPK-15.8 | BH-PPKF-15.8 | 12.0 * 15.8 | 28 | 100 |
| BH-PPK-18.5 | BH-PPKF-18.5 | 14.3 * 18.5 | 35 | 100 |
| BH-PPK-20.0 | BH-PPKF-20.0 | 16.0 * 20.0 | 38 | 100 |
| BH-PPK-21.2 | BH-PPKF-21.2 | 17.0 * 21.2 | 40 | 100 |
| BH-PPK-25.0 | BH-PPKF-25.0 | 20.0 * 25.0 | 42 | 100 |
| BH-PPK-28.5 | BH-PPKF-28.5 | 23.0 * 28.5 | 45 | 100 |
| BH-PPK-30.0 | BH-PPKF-30.0 | 24.0 * 30.0 | 50 | 100 |
| BH-PPK-32.0 | BH-PPKF-32.0 | 25.0 * 32.0 | 50 | 50 |
| BH-PPK-34.5 | BH-PPKF-34.5 | 29.0 * 34.5 | 55 | 50 |
| BH-PPK-42.5 | BH-PPKF-42.5 | 36.0 * 42.5 | 70 | 25 |
| BH-PPK-54.5 | BH-PPKF-54.5 | 48.0 * 54.5 | 80 | 25 |
Special size, cut pieces are available on request.
