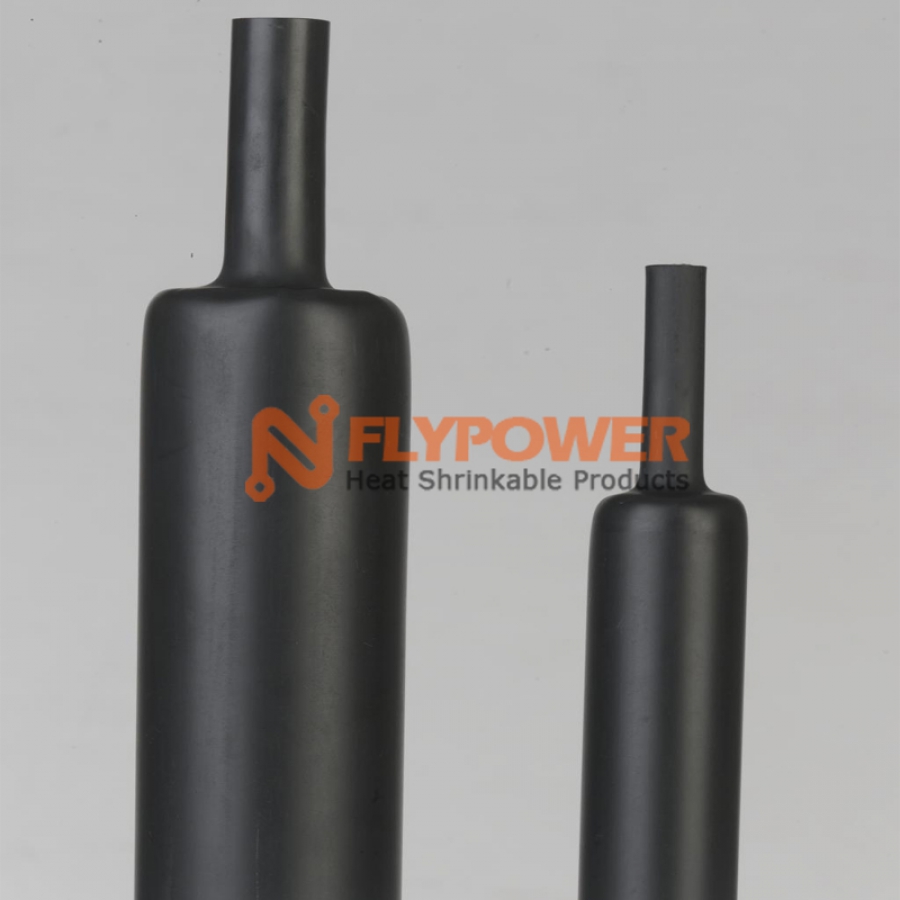

2:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing BH-5(2X)
- Applications: Dual wall adhesive-lined heat-shrink polyolefin tubing for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions
-
Characteristics: Out jacket flame retardant, inner adhesive self-extinguished
Super sealing against water, moisture or other contaminants -
Operating temperature range: Continuous operating temperature: -55℃~ 125℃
Shrink temperature: 120℃ - Approvals / Specifications: RoHS
- Colors: Black
|
Size |
As supplied |
After recovery |
Standard Package |
|||
|
Inch |
mm |
Internal Diameter(mm) |
Internal Diameter(mm) |
Total Wall Thickness(mm) |
Adhesive thickness(mm) |
Spool Length(m/spool) |
|
1/16 |
1.6 |
1.6 |
0.8 |
0.60±0.15 |
0.3±0.1 |
200 |
|
3/32 |
2.4 |
2.4 |
1.2 |
0.70±0.15 |
0.35±0.1 |
200 |
|
1/8 |
3.2 |
3.2 |
1.6 |
0.70±0.15 |
0.35±0.1 |
200 |
|
3/16 |
4.8 |
4.8 |
2.4 |
0.80±0.15 |
0.4±0.1 |
100 |
|
1/4 |
6.4 |
6.4 |
3.2 |
0.80±0.15 |
0.4±0.1 |
100 |
|
5/16 |
7.9 |
7.9 |
3.9 |
0.90±0.15 |
0.45±0.1 |
100 |
|
3/8 |
9.5 |
9.5 |
4.8 |
0.90±0.15 |
0.45±0.1 |
1.22 |
|
1/2 |
12.7 |
12.7 |
6.4 |
0.95±0.20 |
0.45±0.1 |
1.22 |
|
5/8 |
15.9 |
15.9 |
7.9 |
0.95±0.20 |
0.45±0.1 |
1.22 |
|
3/4 |
19.1 |
19.1 |
9.5 |
1.0±0.20 |
0.45±0.1 |
1.22 |
|
1 |
25.4 |
25.4 |
12.7 |
1.1±0.20 |
0.50±0.1 |
1.22 |
|
1 1/4 |
31.8 |
31.8 |
15 |
1.15±0.20 |
0.50±0.1 |
1.22 |
|
1 1/2 |
38.1 |
38.1 |
19 |
1.25±0.20 |
0.50±0.1 |
1.22 |
|
1/ 3/4 |
44.5 |
44.5 |
22 |
1.35±0.20 |
0.55±0.1 |
1.22 |
|
2 |
50.8 |
50.8 |
25.4 |
1.5±0.25 |
0.60±0.1 |
1.22 |
Technical Data
|
Test Item |
Test Method |
Test Result |
|
Tensile Strength(Mpa) |
ASTM D2671 |
≥10.4 |
|
Elongation% |
ASTM D2671 |
≥300 |
|
Tensile Strength afterAging (Mpa) |
UL 224 158×168hr |
≥7.3 |
|
Elongation after Aging% |
UL 224 158℃×168hr |
≥200 |
|
Dielectric Strength |
IEC 243 |
≥ 15 |
|
Volume Resistance(Ω.cm) |
ASTM D876 |
≥ 1014Ω.cm |
Hot Melting Adhesive Property
|
Test Item |
Test Method |
Test Result |
|
Water absorption ratio: |
ASTM-D570 |
<0.2% |
|
Softing point |
ASTM-E8 |
95℃ |
|
Strength of pearing(PE) |
ASTM-D1000 |
120N/25m |
|
Strength of pearing(AL) |
ASTM-D1000 |
80N/25m |
