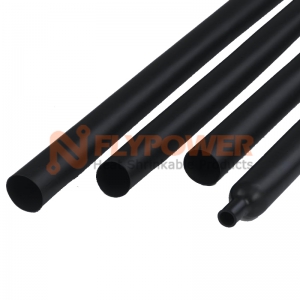

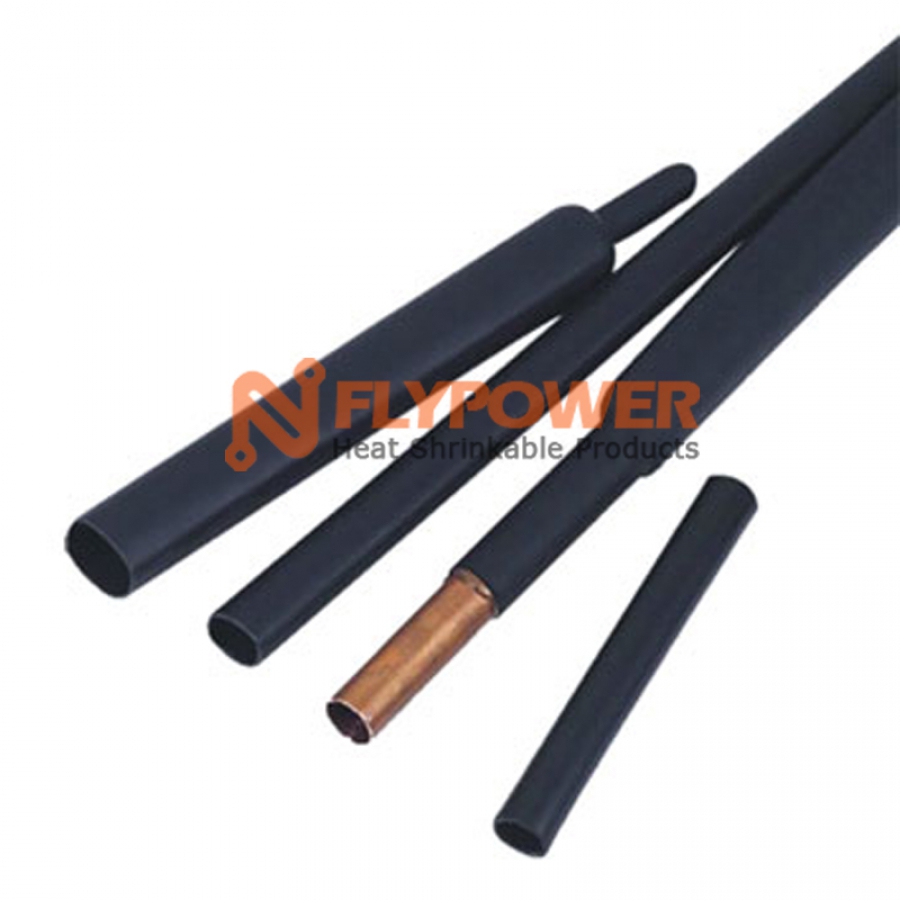

DUAL WALL ADHESIVE-LINED POLYOLEFIN TUBING FOR AUTOMOTIVE PIPE PROTECTION BH-5(2000)
- Applications: BH-5(2000) specially designed for protection of automotive metal pipes and fuel lines against environment damages
- Characteristics: This dual wall frame can effectively protect the pipes against any kinds of damages caused by vibration, friction , corrosion and thus improvethe reliability of these pipes.
-
Operating temperature range: Minimum fully recovery temperature: 120℃
Operating temperature: -55℃ to + 135℃ - Approvals / Specifications: CE
- Colors: Black
|
Normal size(mm) |
Standard pipe diameter |
As supplied(mm) |
After recovered(mm) |
Standard length(m) |
|||
|
(inch) |
(mm) |
Inside diameter(min.) |
Inside diameter(Max.) |
Wall thickness(mm) |
Adhesive Thickness(mm) |
||
|
BH-5(2000)-5 |
1/8 |
3.50 |
5.50 |
3.30 |
1.00 |
0.20 |
200 |
|
BH-5(2000)-6 |
3/16 |
4.76 |
6.50 |
4.60 |
1.00 |
0.20 |
200 |
|
BH-5(2000)-8 |
1/4 |
6.35 |
8.50 |
6.00 |
1.00 |
0.20 |
100 |
|
BH-5(2000)-10 |
5/16 |
8.00 |
11.50 |
7.00 |
1.00 |
0.20 |
100 |
|
BH-5(2000)-15 |
3/8 |
10.00 |
15.00 |
9.50 |
1.00 |
0.20 |
100 |
Special size, cut pieces are available on request.
| Property | Test Method | Typical Data |
| Operating temperature | IEC 216 | -55 to +105℃ |
| Longitudinal shrinkage | UL 224 | 0 to -10% |
| Eccentricity | ASTM D 2671 | ≤30% |
| Tensile strength | ASTM D 2671 | 12MPa(min) |
| Elongation at break | ASTM D 2671 | 300%(min) |
| Heat ageing Tensile strength Ultimate elongation |
after 24hrs. at 120℃ | 12Mpa(min) 270%(min) |
| Deformation resistance | 50%(min) | |
| Impact resistance | ASTMD 746 | No cracking at -35℃ |
| Drop impact resistance | No cracking | |
| Cold resistance | ASTM D 746 ( -35℃, 1hr) | No cracking |
| Stress cracking resistance | ASTM D 1693 (50℃,24hrs.) | No cracking |
| Fluid resistance | ASTM D 2671 25℃,72hrs. Brake fluid (Honda) Unleaded petrol |
Tensile strength 12Mpa(min) Ultimate elongation 300%(min) Tensile strength 7.8MPa(min) Ultimate elongation 150%(min) |
