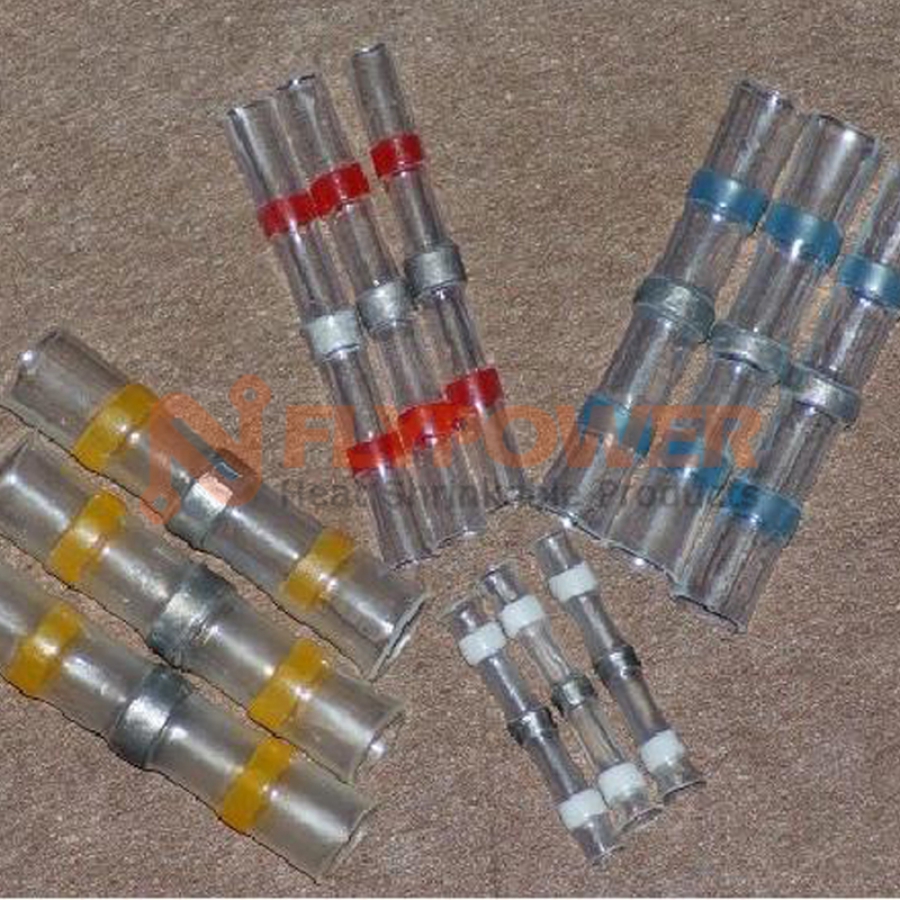

Solder ring wire splice heat shrinkable tubing BH-STG
- Applications: BH-STG general solder ring wire splice heat shrinkable tubing,One piece design, it consists of transparent heat shrinkable tubing and fluxed solder. Provides insulation, inspection, strain relief and water proof. Makes installation easily and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube, it very convenience to use exact wire dimension.
-
Characteristics: Shrink ratio 2:1;
Waterproof wiring splices;
Transparent tubing provides precise inspection, easy control soldering process. -
Operating temperature range: Operating temperature range: -55°C--- +125°C;
Minimum shrink temperature: +60°C;
Minimum fully recover temperature: +110°C;
Staring melt temperature of solder +125°C;
fully melt temperature of solder: +150°C. - Approvals / Specifications: RoHS
- Colors: Red, Yellow, Blue, White, Other colors available on request

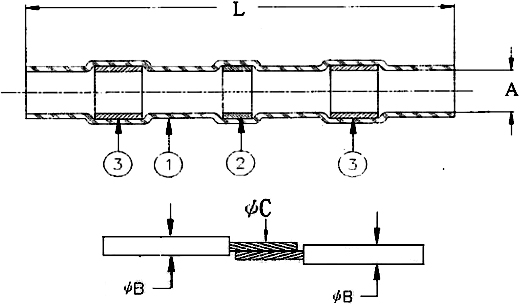

Part Number Product Dimensions Wire Dimensions(mm) Cable Size Standard Color Reference TE's Part Number A(Min) L(Max) B(Min) B(Max)/ C(Min) AWG(mm2) BH-STG-01 1.7 26.0 1.0 1.7 0.76 26～24(0.25～0.34) White CWT-9001 BH-STG-02-1 2.7 40.0 1.4 2.7 1.2 22～18(0.5～1.0) Red CWT-9002 BH-STG-02-2 2.7 18.5 1.4 2.7 1.2 22～18(0.5～1.0) Blue B-150-03-S BH-STG-03-1 4.5 40.0 2.3 4.5 2 16～14(1.5～2.5) Blue CWT-9003 BH-STG-03-2 4.5 21.0 2.3 4.5 2 16～14(1.5～2.5) Blue B-150-05-S BH-STG-03-3 4.5 30.0 2.3 4.5 2 16～14(1.5～2.5) Blue CWT-5 BH-STG-04-1 6.0 40.0 3.7 6.0 3.4 12～10(4.0～6.0) Yellow CWT-9004 BH-STG-04-2 7.0 41.5 3.7 7.0 3.8 12～10(4.0～6.0) Yellow CWT-9005 BH-STG-04-3 7.0 31.0 3.7 7.0 3.8 12～10(4.0～6.0) Blue CWT-7 BH-STG-04-4 7.0 20.0 3.7 7.0 3.8 12～10(4.0～6.0) Blue B-150-07-S BH-STG-05 11.5 34.0 5.8 11.5 5.5 10～6(6.0～14.0) Blue CWT-11/B-150-11 1. Heat shrinkable tubing 2. Low temperature solder ring 3. Waterproof hot melt adhesive
C(Max)
