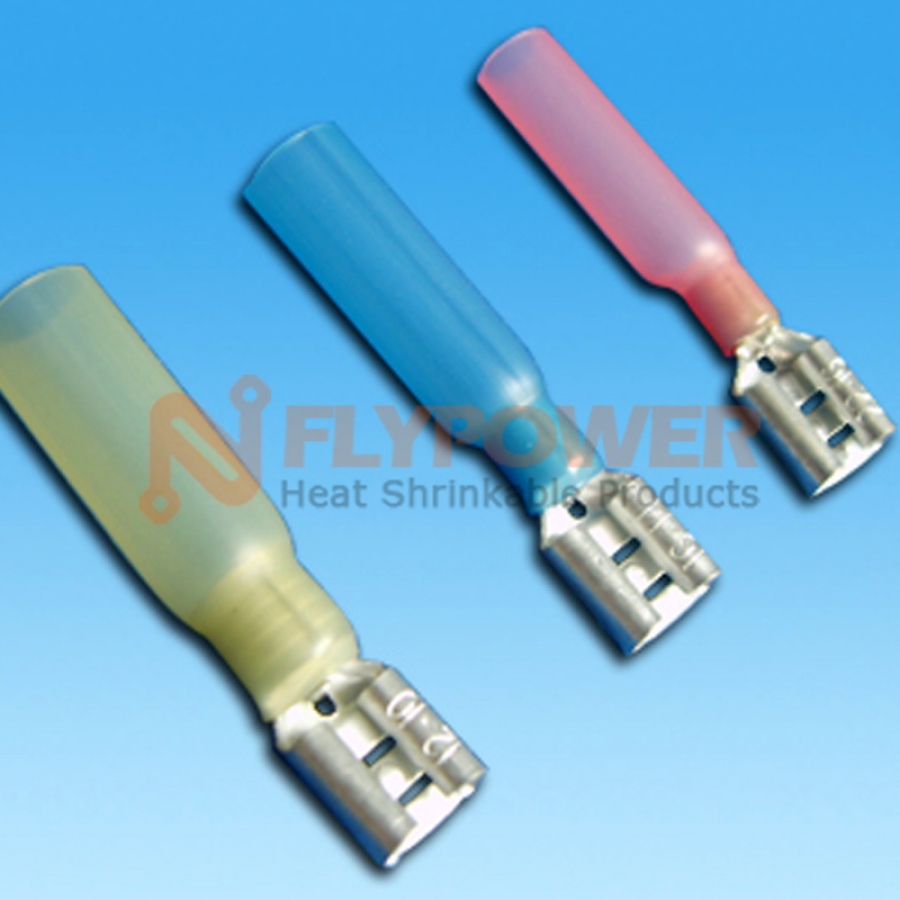

Semi-insulation female heat shrinkable terminal BH-FMT
- Applications: BH-FMT semi-insulation female heat shrinkable terminal, it is composed of tinned copper terminals and double wall heat shrinkable tube, crimp terminals provide wire connection protection, double wall heat shrinkable tube is made by polyethylene with a layer of hot melt adhesive, which provides excellent sealing, waterproofing,insulation for the wires. Widely used in cable waterproof, anti salt, anti corrosion, compressive strength, wear protection, convenient installation.Application: wire processing, automobile accessories installation, maintenance, repair wire in marine electric wire, submersible pump / drilling motor wire and cable connection.
-
Characteristics: Shrink ratio 3:1;
Terminal Body: Brass;
Insulation: Heat Shrink Tube;
Maximum Electric Current：22-16 AWG/0.5-1.5mm2：19A； 16-14AWG/1.5-2.5mm2：27A；12-10AWG/4-6mm2：48A
Plating: Tin -
Operating temperature range: Operating temperature range: -55°C--- +125°C;
Maximum Electric Rating：150℃ 300V - Approvals / Specifications: RoHS
- Colors: Red, Yellow, Blue, Other colors available on request
Wire Range mm2
Tab Size
Dimensions(mm/inch)
Color
Q'TY
W
L
D
0.5-1.5mm2
.020*.110（0.5*2.8）
3.2（.126）
27.0(1.062)
5.5(.216)
Red
1000
.032*.110 (0.8*2.8)
3.2（.126）
1000
.020*.187 (0.5*4.75)
5.0（.197）
1000
.032*.187(0.8*4.75)
5.0（.197）
1000
.032*.250(0.8*.635)
6.6（.260）
28.5（1.122）
1000
1.5-2.5mm2
.020*.110 (0.5*2.8)
3.2（.126）
27.0（1.062）
6.0(.236)
Blue
1000
.032*.110(0.8*2.8)
3.2（.126）
.020*.187 (0.5*4.75)
5.0（.197）
.032*.187 (0.5*4.75)
5.0（.197）
.032*.250(0.8*6.35)
6.6（.260）
28.5（1.122）
1000
.032*.312(0.8*8.0)
8.2（.323）
33.5（1.318）
1000
4-6mm2
.020*.187 (0.5*4.75)
5.0（.197）
29.0（1.141）
6.6(.259)
Yellow
500
.032*.187(0.8*4.75)
5.0（.197）
500
.032*.250(0.8*6.35)
6.6（.260）
500
.048*.375(1.2*6.35)
8.2（.323）
36.0(.259)
500
/AWG
(Pcs/Box)
22-16AWG
16-14AWG
1000
1000
1000
12-10AWG
