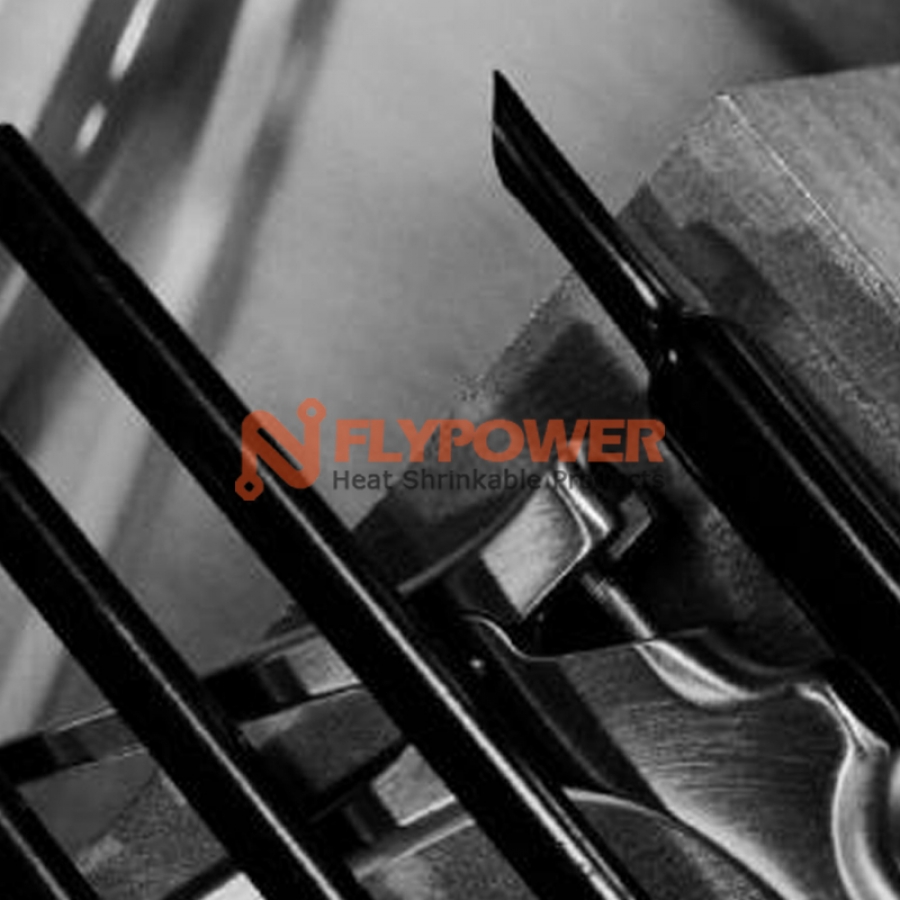

Medical grade LDPE thin wall heat shrink tubing BH-MT-LDPE
- Applications: The excellent electrical insulation property makes it can be used in the insulation protection of electrosurgical instruments, it’s the heat shrinkable tubing that widely used in medical devices.
- Characteristics: BH-MT-LDPE is a 2.5:1 shrink ratio medical grade heat shrinkable tubing made of medical grade polyolefin, and satisfies the demand of thin wall and smooth properties which invasive devices required for surgery.
-
Operating temperature range: Minimum shrink temperature: 70℃;
Minimum shrink temperature: 110℃; -
Approvals / Specifications: ISO 10993-1 compliant
Compatibility with gamma rays and ETO sterilization - Colors: Black, Transparent
|
Model |
Supplied (mm) |
Recovered(mm) |
||
|
Inside Diameter |
Wall Thickness |
Inside Diameter |
Wall Thickness |
|
|
BH-MT-LDPE-1.0 |
1.0 |
0.12±0.03 |
≤0.45 |
0.25±0.05 |
|
BH-MT-LDPE-2.0 |
2.0 |
0.12±0.03 |
≤0.80 |
0.25±0.05 |
|
BH-MT-LDPE-3.0 |
3.0 |
0.12±0.03 |
≤1.20 |
0.25±0.05 |
|
BH-MT-LDPE-4.0 |
4.0 |
0.12±0.03 |
≤1.80 |
0.25±0.05 |
|
BH-MT-LDPE-4.5 |
4.5 |
0.12±0.05 |
≤1.90 |
0.25±0.05 |
|
BH-MT-LDPE-4.8 |
4.8 |
0.12±0.05 |
≤2.00 |
0.25±0.05 |
|
BH-MT-LDPE-5.5 |
5.5 |
0.12±0.05 |
≤2.30 |
0.25±0.05 |
|
BH-MT-LDPE-6.0 |
6.0 |
0.12±0.05 |
≤2.40 |
0.25±0.05 |
|
BH-MT-LDPE-6.4 |
6.4 |
0.12±0.05 |
≤2.60 |
0.25±0.05 |
|
BH-MT-LDPE-9.5 |
9.5 |
0.12±0.08 |
≤3.80 |
0.25±0.05 |
|
BH-MT-LDPE-10.0 |
10.0 |
0.12±0.08 |
≤4.00 |
0.35±0.05 |
|
BH-MT-LDPE-12.7 |
12.7 |
0.12±0.08 |
≤5.20 |
0.35±0.05 |
Cross Reference
Tyco-Raychem: MT-2000
|
Property |
Test Method |
Typical Data |
|
Longitudinal change % |
ASTM D 2671 |
-10~+5 |
|
Tensile strength/MPa |
ASTM D 638 |
≥10.4 |
|
Elongation at break/% |
ASTM D 638 |
≥200 |
|
Low temperature flexibility(-30°C, 1h) |
ASM-DTL-23053 |
No cracking |
|
Heat shock(180˚C/4 h) |
ASTM D2671 |
No cracking |
|
Dielectric strength/kV/mm |
ASTM D 2671 |
≥15.7 |
|
Volume resistivity/Ω·cm |
ASTM D 876 |
≥1015 |
|
Water absorption（%）（23℃、24h） |
ASTM D 2671 B |
≤0.4 |
