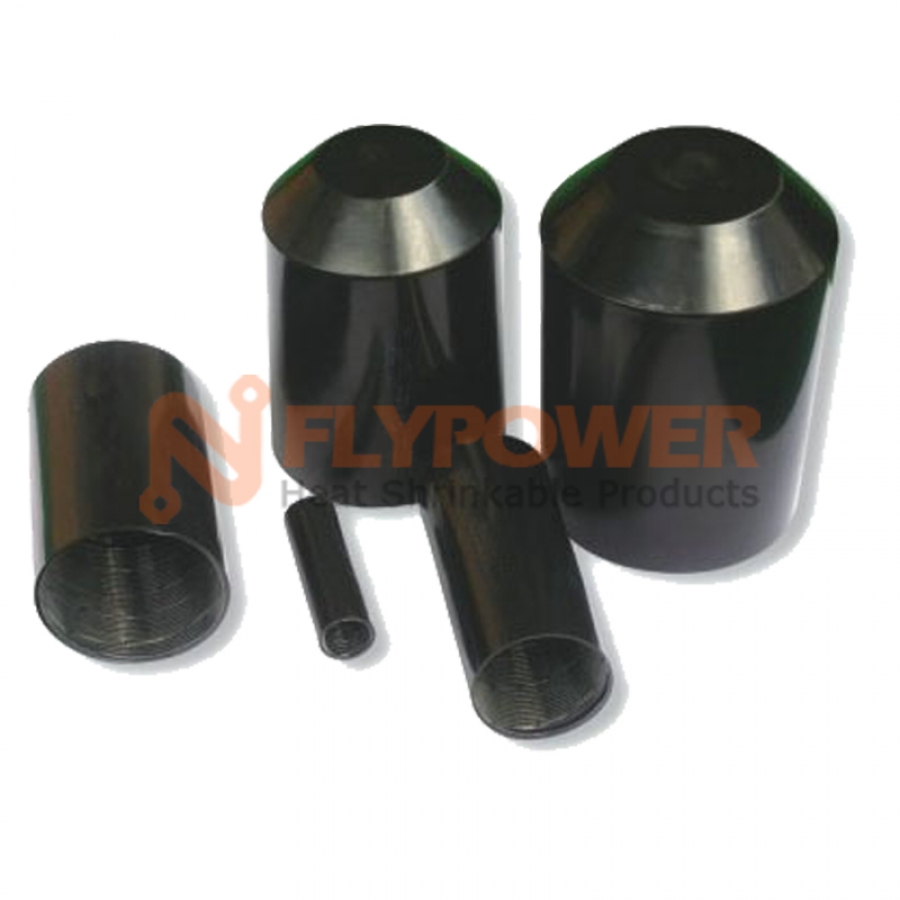

HEAT SHRINKABLE CALBE END CAPS WITH SPIRAL ADHESIVE AND CONDUCTIVE MASTIC BH-CEC
- Applications: BH-CEC heat shrinkable cable end caps with spiral adhesive and conductive mastic offers an economical means of sealing the ends of power and control cables to ensure a watertight seal. The internal surface of the end caps has a layer of spiral coated hot melt adhesive , which retains its flexible properties after recovery. BH-CEC is recommended for use both in open air and on underground power distribution cables with PVC, lead or XLPE sheaths.
-
Characteristics: Effectively offering protection against oxidation ,
ozone, UV radiation etc.;
Coated with hot melt adhesive to ensure environment seal;
Easily to fit over the cable end;
Protect power cable up to 1000V and telecommunication cable;
Material: thermally stabilized cross-linked polyolefin ,coated with specially designed hot melt adhesive, conductive mastic. - Operating temperature range: Minimum fully shrink temperature: 120℃
- Approvals / Specifications: CE,RoHS
- Colors: Black
|

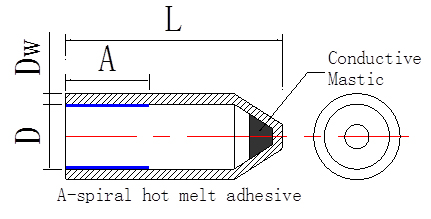

Part Number |
As supplied (mm) |
After recovered |
Conductive Mastic weight |
Cable diameter (mm) |
|||
|
D(min) |
A(±10%) |
D(Max.) |
L(±10%) |
Dw(±20%) |
|||
|
BH-CEC 68-25/8.5 |
25 |
30 |
8.5 |
68 |
2.8 |
6±1g |
10-20 |
|
BH-CEC 90-40/15 |
40 |
40 |
15 |
90 |
3.3 |
10±1g |
18-34 |
|
BH-CEC 110- 42/15 |
42 |
40 |
15 |
110 |
3.3 |
10±1g |
25-48 |
|
BH-CEC140-55/23 |
55 |
70 |
23 |
140 |
3.8 |
20±2g |
25-55 |
|
BH-CEC 140-62/23 |
62 |
70 |
23 |
140 |
3.8 |
25±2g |
42-68 |
|
BH-CEC 170-75/36 |
75 |
70 |
36 |
170 |
4.2 |
30±3g |
45-68 |
|
BH-CEC-155-100/47 |
100 |
65 |
47 |
155 |
4 |
35±4g |
50-90 |
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55℃to +110℃ |
|
Tensile strength |
ASTM D 638 |
>14 MPa |
|
Elongation at break |
ASTM D 638 |
>400% |
|
Density |
ASTM D 792 |
1.05 |
|
Elongation at break after aging |
150℃/168hrs |
>300% |
|
Dielectric strength |
IEC 243 |
>15KV/mm |
|
Volume resistance |
IEC 93 |
>1014Ω.cm |
