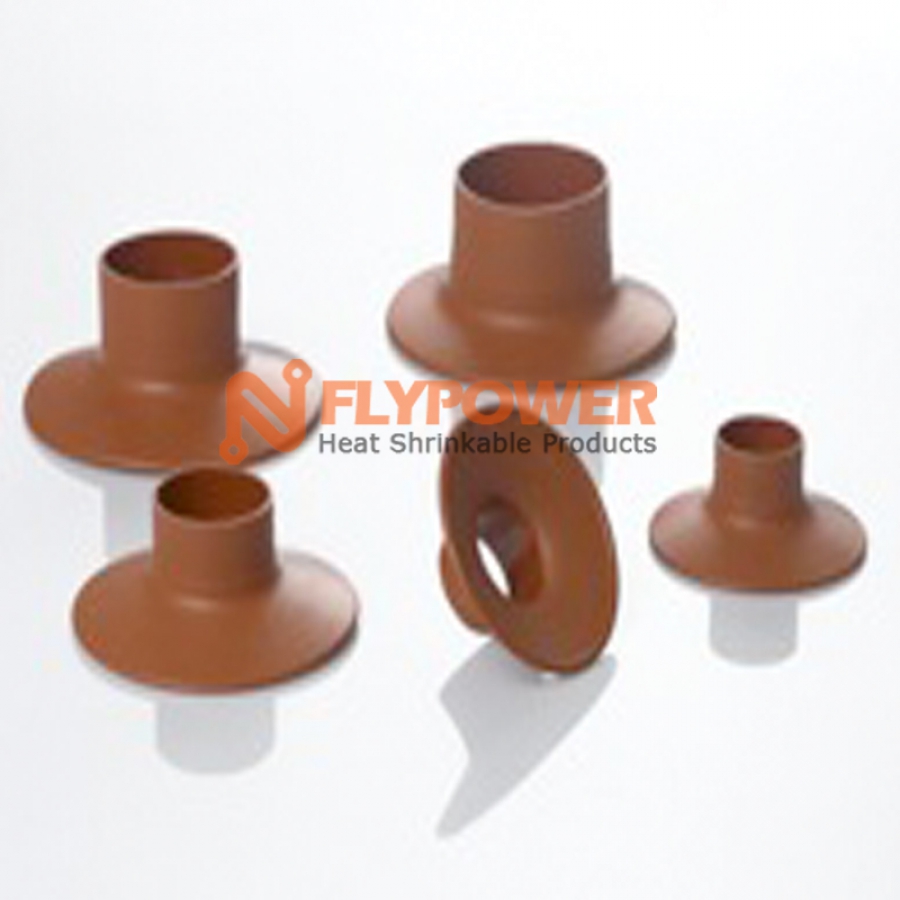

HEAT SHRINKABLE ANTI-TRACKING RAIN SHEDS SHRINK RATIO 2:1 BH-AS
- Applications: Heat shrinkable anti-tracking rain sheds used to provide insulation protection for cable outdoor termination
- Characteristics: BH-AS is made form high creep resistance, anti-tracking polyolefin compounds and coated with anti-track, weather resistant mastic.The high creep resistance and anti-tracking properties of the products provide maximum operation reliability.
- Operating temperature range: Minimum fully shrink temperature: 110℃
- Approvals / Specifications: CE
- Colors: Red
| Model No. | As supplied (mm) | After recovered(mm) | D1 (reference) |
H(Min.) | W (reference) |
| D2(Min.) | D2(Max.) | ||||
| BH-AS 30/12 | 30 | 12 | 95 | 18 | 3 |
| BH-AS 35/14 | 35 | 14 | 95 | 18 | 3 |
| BH-AS 45/19 | 45 | 19 | 120 | 20 | 3 |
| BH-AS 50/19 | 50 | 19 | 120 | 20 | 3 |
| BH-AS 60/23 | 60 | 23 | 130 | 20 | 3 |
| BH-AS 75/30 | 75 | 30 | 140 | 25 | 3 |
| BH-AS 110/50 | 110 | 50 | 175 | 50 | 3 |
| BH-AS 130/65 | 130 | 65 | 200 | 52 | 3 |
| BH-AS 160/80 | 168 | 80 | 245 | 60 | 3 |
| BH-AS 180/80 | 180 | 80 | 245 | 60 | 3 |
| BH-AS 260/110 | 260 | 110 | 360 | 90 | 3.5 |
| Property | Test Method | Standard Value |
| Cold Bend | ASTM-D-2671 | No cracking |
| Tensile Strength | ASTM-D-638 | ≥8MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Tensile Strength after Aging | ASTM-D-638 | ≥6MPa (130℃,168 hrs) |
| Elongation at Break after Aging | ASTM-D-638 | ≥240% (130℃,168 hrs) |
| Dielectric Strength | IEC 60243 | ≥20kV/mm |
| Tracking Resistance | IEC 60587 | 1A 3.5 |
| Volume Resistivity | IEC 60093 | ≥1×1014Ω·cm |
| Dielectric Constant | IEC 60250 | ≤5 |
| Water Absorption | ISO 62 | ≤0.5% |
| Eccentricity | ASTM-D-2671 | ≤35% |
