MULTI-CORES LOW VOLTAGE CABLE BREAKOUT BH-LB

MULTI-CORES LOW VOLTAGE CABLE BREAKOUT BH-LB
Download attachments: BH-LB(E).pdf

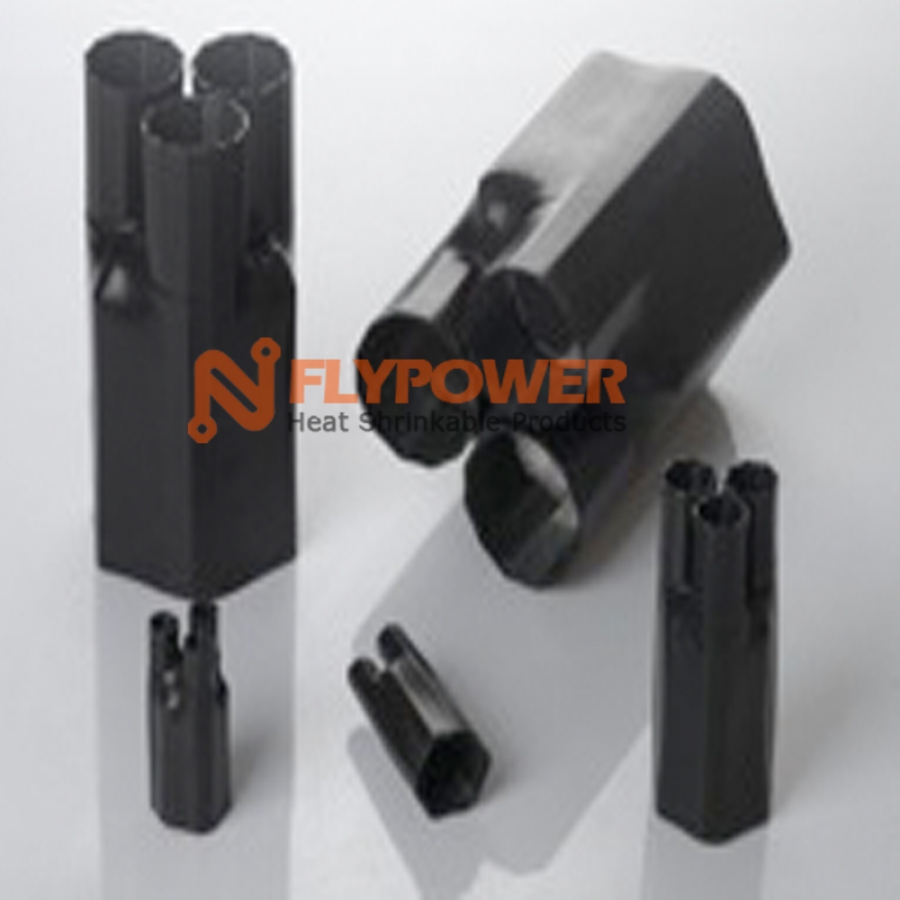

  • Applications: BH-LB widely used in electric power industry to provide insulation and seal sealing over the crutch of multi-core cables.
  • Characteristics: Multi-Cores low voltage cable breakout made from radiation crosslinked polyolefin and suitable for applications up 1KV. The properties of electrically insulating, UV resistant and weather proof
  • Operating temperature range: Minimum shrink temperature: 110℃
    Minimum fully recovery temperature: 130℃
  • Approvals / Specifications: RoHS
  • Colors: Black


Cores Model Applicable cable
(mm2)
As supplied(mm) After recovered (mm)
Skirt Finger Length(±20%) Skirt Finger
D1(Min.) D2(Min.) D1(Max.) D2(Max.)
2 BH-LB2.0 4-6, 10-16 21 11 120 13 5
BH-LB2.1 25-50 30 15 120 20 7
BH-LB2.2 70-120 40 20 140 25 10
BH-LB2.3 150-240 60 30 150 35 11
BH-LB2.4 300-400, 500-630 70 40 140 40 13
3 BH-LB3.00 4-6, 10-16 35 14 130 22 6
BH-LB3.0 25-50 50 23 170 29 9
BH-LB3.1 70-120 70 28 200 38 12
BH-LB3.2 150-240 84 37 200 46 15
BH-LB3.3 300-400 100 47 200 55 19
BH-LB3.4 500-630 125 58 200 70 28
4 BH-LB4.0 4-6, 10-16 34 10 150 18 5
BH-LB4.1 25-50 45 15 150 25 7
BH-LB4.2 70-120 60 22 180 32 9
BH-LB4.3 150-240 75 30 180 40 12
BH-LB4.4 300-400 90 30 190 45 14
5 BH-LB5.0 4-6, 10-16 37 11 130 24 5
BH-LB5.1 25-50 50 14 150 28 8
BH-LB5.2 70-120 75 23 170 36 9
BH-LB5.3 150-240 90 30 180 46 13
BH-LB5.4 300-400 105 36 200 50 14

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55 to +110

Tensile strength

ASTM D 2671

13 MPa Min

Tensile strength after thermal aging

ASTM D 2671 (120/168hrs)

10 MPa Min

Elongation at break

ASTM D 2671

300% Min

Elongation at break after thermal aging

ASTM D 2671 (120/168hrs)

250% Min

Dielectric strength

IEC 243

15KV/mm Min

Volume resistance

IEC 93

1013Ω.cm Min

Water absorption

ISO62

1% Max



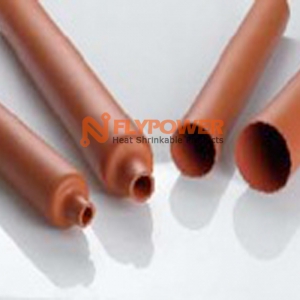

INSULATE, SEAL, CONNECT

Heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wires, connections, joints and terminals in electrical work.It is widely applied in the field of electronics,telecommunication,power energy,automobile and so on.
