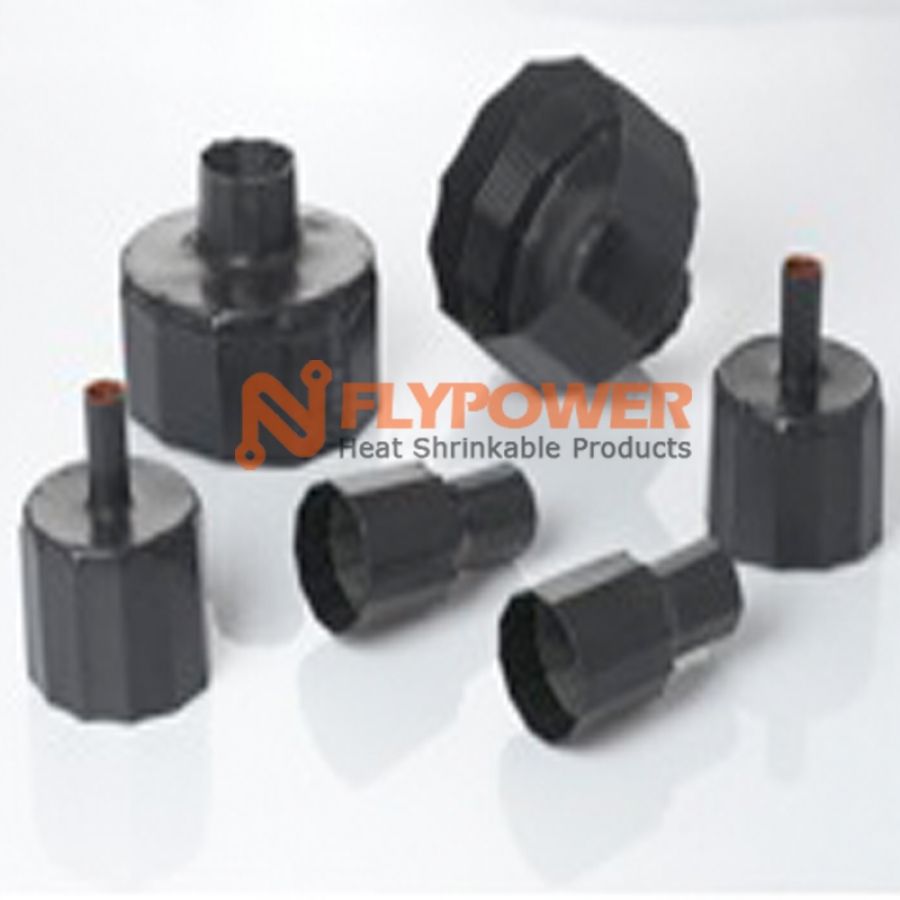

HEAT SHRINKABLE CABLE FEED THROUGHS(LOW VOLTAGE SINGLE CORE CABLE BREAKOUT) BH-LB1

HEAT SHRINKABLE CABLE FEED THROUGHS(LOW VOLTAGE SINGLE CORE CABLE BREAKOUT) BH-LB1
Download attachments: English BH-LB1 中文 BH-LB1
  • Applications: Low voltage single core cable breakout widely used in electric power industry to provide insulation and sealing over the cables.
  • Characteristics: BH-LB1 made from radiation cross-linked polyolefin and suitable for applications of cable up 1KV. The properties of electrically insulating, UV resistant and weather proof
  • Operating temperature range: Minimum shrink temperature: 110℃
    Minimum fully recovery temperature: 130℃
  • Approvals / Specifications: Pressure up to 1 bar
  • Colors: Black

Model

As supplied (mm)

After recovered (mm)

D(Min.)

I(Min.)

D(Max.)

I(Max.)

L(±10%)

F(±10%)

Dw(±10%)

Iw(±10%)

BH-LB1-110 85/42-15/5

85

15

42

5

130

45

2.5

2.8

BH-LB1-120 60/30-45/10

60

45

30

10

130

45

2.5

4.5

BH-LB1-130 100/52-20/8

100

20

52

8

150

65

3

3

BH-LB1-140 160/92-60/20

160

60

92

20

150

50

3.2

3

BH-LB1-150 160/92-100/45

160

100

92

45

150

50

3.5

3.5

Property

Test Method

Typical Data

Operating temperature

IEC 216

-55℃to +110℃

Tensile strength

ASTM D 2671

13 MPa Min

Tensile strength after thermal aging

ASTM D 2671 (120℃/168hrs)

10 MPa Min

Elongation at break

ASTM D 2671

300% Min

Elongation at break after thermal aging

ASTM D 2671 (120℃/168hrs)

250% Min

Dielectric strength

IEC 243

15KV/mm Min

Volume resistance

IEC 93

1013Ω.cm Min

Water absorption

ISO62

1% Max



INSULATE, SEAL, CONNECT

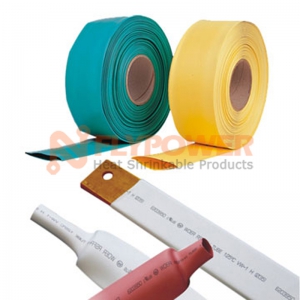

Heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wires, connections, joints and terminals in electrical work.It is widely applied in the field of electronics,telecommunication,power energy,automobile and so on.
