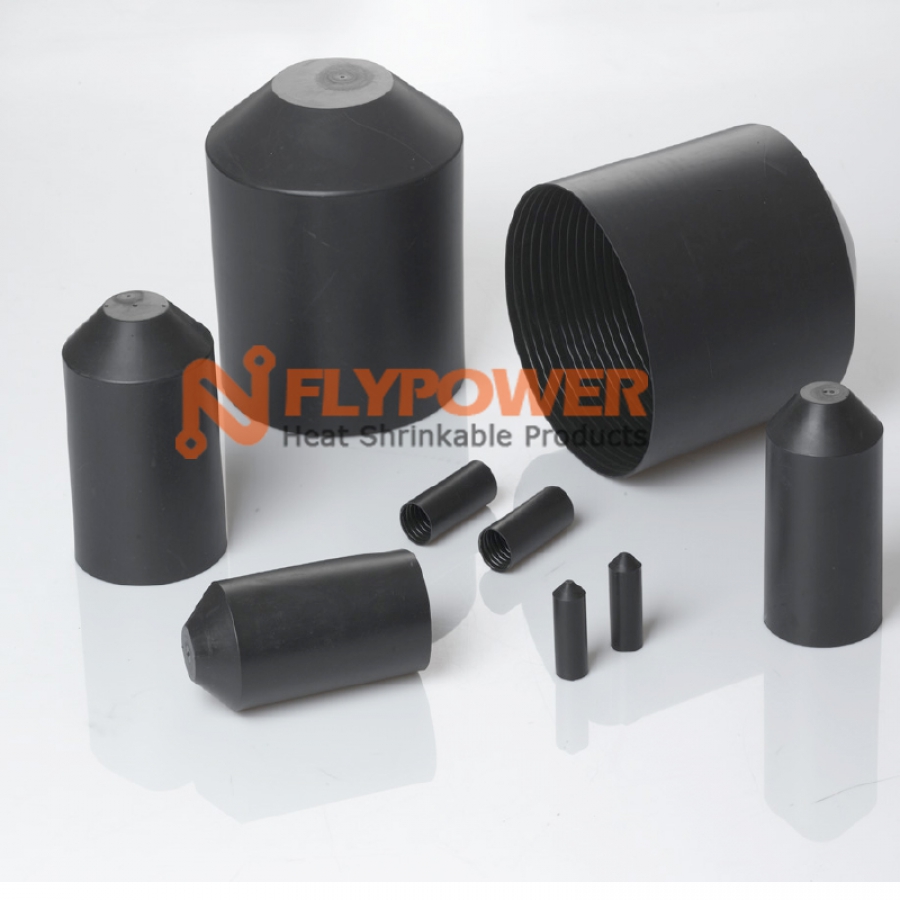

HEAT SHRINKABLE CABLE END CAPS WITH SPIRAL ADHESIVE COATING BH-SEC
- Applications: BH-SEC is recommended for use both in open air and on underground power distribution cables with PVC ,lead or XLPE sheaths.
- Characteristics: Heat shrinkable calbe end caps offers an economical means of sealing the ends of power and control cables to ensure a watertight seal. The internal surface of the end caps has a layer of spiral coated hot melt adhesive , which retains its flexible properties after recovery
- Operating temperature range: Minimum fully shrink temperature: 120℃
- Approvals / Specifications: CE,RoHS
- Colors: Black

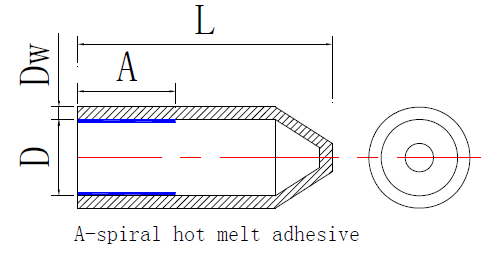

| Model No. |
As supplied (mm) |
After recovered (mm) |
||||
|
D(Min) |
A(±10%) |
D(Max.) |
L(±10%) |
Dw(±10%) |
||
|
Standard length end caps |
||||||
|
BH-SEC 40-12/4 |
12 |
15 |
4 |
40 |
2.6 |
|
|
BH-SEC 45-14/5 |
14 |
18 |
5 |
45 |
2.2 |
|
|
BH-SEC 55-20/6 |
20 |
25 |
6 |
55 |
2.8 |
|
|
BHSEC 68-25/8.5 |
25 |
30 |
8.5 |
68 |
2.8 |
|
|
BH-SEC 83-35/16 |
35 |
35 |
16 |
83 |
3.3 |
|
|
BH-SEC 83-40/16 |
40 |
35 |
16 |
83 |
3.3 |
|
|
BH-SEC 103-55/26 |
55 |
50 |
26 |
103 |
3.5 |
|
|
BH-SEC 120-75/36 |
75 |
55 |
36 |
120 |
4 |
|
|
BH-SEC 140-100/52 |
100 |
70 |
52 |
140 |
4 |
|
|
BH-SEC 150-120/60 |
120 |
70 |
60 |
150 |
4 |
|
|
BH-SEC 150-145/60 |
145 |
70 |
60 |
150 |
4 |
|
|
BH-SEC 150-160/82 |
160 |
70 |
80 |
150 |
4 |
|
|
Extended length end cap |
||||||
|
BH-SEC 55L-14/5 |
14 |
30 |
5 |
55 |
2.2 |
|
|
BH-SEC 90L-40/15 |
40 |
40 |
15 |
90 |
3.3 |
|
|
BH-SEC 110L-42/15 |
42 |
40 |
15 |
110 |
3.3 |
|
|
BH-SEC 140L-55/23 |
55 |
70 |
23 |
140 |
3.8 |
|
|
BH-SEC 140L-62/23 |
62 |
70 |
23 |
140 |
3.8 |
|
|
BH-SEC 150L-75/36 |
75 |
70 |
36 |
150 |
4 |
|
|
BH-SEC 170L-75/36 |
75 |
70 |
36 |
170 |
4.2 |
|
|
BH-SEC 155L-100/47 |
100 |
65 |
47 |
155 |
4 |
|
* End cap with valve is available on request.
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55℃to +110℃ |
|
Tensile strength |
ASTM D 638 |
>14 MPa |
|
Elongation at break |
ASTM D 638 |
>400% |
|
Density |
ASTM D 792 |
1.05 |
|
Elongation at break after aging |
150℃/168hrs |
>300% |
|
Dielectric strength |
IEC 243 |
>15KV/mm |
|
Volume resistance |
IEC 93 |
>1014Ω.cm |
