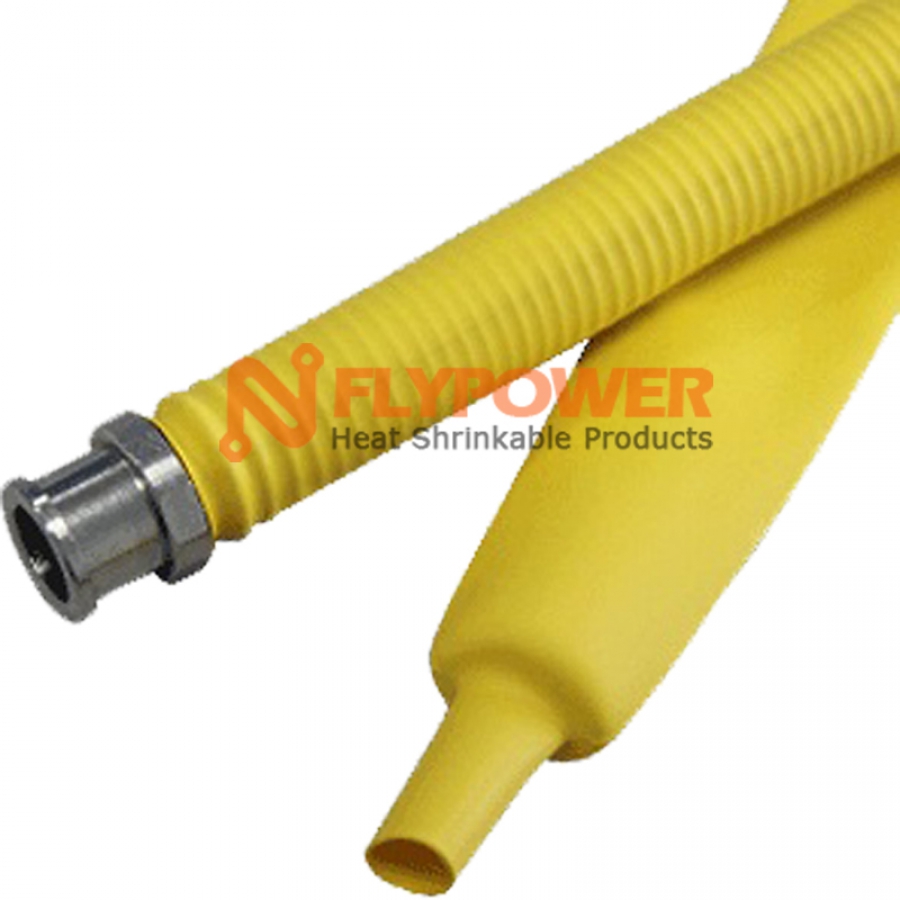

THIN WALL HEAT SHRINKABLE SLEEVE FOR FLEXIBLE GAS PIPES BH-BG

THIN WALL HEAT SHRINKABLE SLEEVE FOR FLEXIBLE GAS PIPES  BH-BG
Download attachments: English BHBG 中文 BHBG
  • Applications: BH-BG very suitable for application of protecting flexible gas pipes.
  • Characteristics: Thin wall heat shrinkable sleeve for flexible gas pipes is made from radiation cross-linked polyolefin. Specially designed formulations make the tubing to have outstanding physical, chemical and electrical properties
  • Operating temperature range: Minimum shrink temperature 90℃
    Minimum fully recovered Temperature: 110℃
  • Approvals / Specifications: Meet: CE,RoHS
  • Colors: Yellow

Normal size(Inch)

As supplied(mm)

After recovered (mm)

Standard Length

(m/spool)

Inside diameter(mm)

Wall thickness(mm)

Inside diameter(Max.)

Wall thickness(Min.)

23

23.5±0.5

0.28 ±0.04

9.50

0.65

100

28

28.0±0.5

0.40±0.05

12.70

0.70

50

29

30.0±0.5

0.40 ±0.05

12.70

0.70

50

34

34.0±0.5

0.40±0.05

16.00

0.80

50

41

41.0±0.5

0.40±0.05

19.00

0.80

50

51

51.5±0.5

0.40±0.05

25.40

0.80

50

Special size, cut pieces are available on request.

Property

Unit

Test Method

Test Value

Tensile strength

M Pa

ASTM D 2671

16.0 MPa

Elongation

%

ASTM D 2671

650%

After aging at 158℃/168 hrs

Ultimate Elongation

Tensile strength



%

M Pa

UL 224



490%

12

Heat shock



UL 224

No flowing or dropping

Flammability



UL 224

Pass VW-1

Cold bend test



ASTM D 2671

No cracking

INSULATE, SEAL, CONNECT

Heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wires, connections, joints and terminals in electrical work.It is widely applied in the field of electronics,telecommunication,power energy,automobile and so on.
