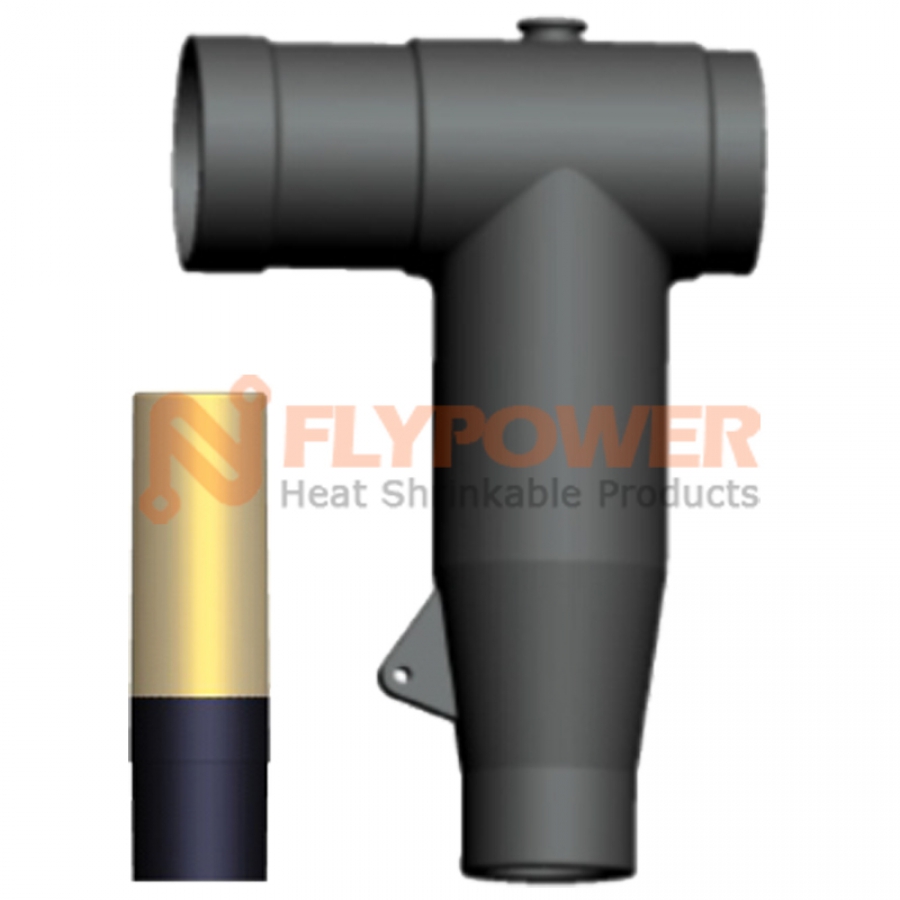

35KV 630A T type separable screened connector/front BH-CTF-301
- Applications: BH-CTF-301 35kV 630A T type separable screened connector, made of EPDM elastomer, is used for indoor application, the main body is composed of inner conductive layer, insulating layer and outer conductive layer, suitable for the connection of XLPE cables 26/35kV to medium voltage equipment (transformers, switchgears, motors, etc. ) up to 35KV.
-
Characteristics: 100% factory tested before shipment, quality guaranteed;
Compact design and suitable adaptor (stress cone) easy & simple installation;
The stress cone adaptor covers the cable range of 25mm2 -400mm2;
Combined with insulation, sealing and touchable screened type. - Operating temperature range: N/A
- Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
- Colors: Black

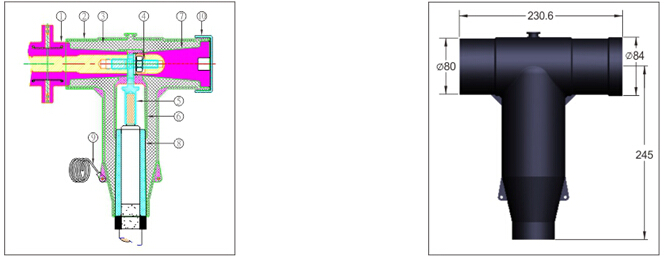

Size(mm) Main insulation diameter (mm) Cable cross-section(mm2) Φ 25 28-33 50 Φ 30 34-38 70-120 Φ 35 39-43 150-240 Φ 40 34-48 300-400 1. Bushing 2. Outer screen layer 3. Insulating layer 4. Threaded pin 5. Compression lug 6. Inner screen layer 7. Insulating lug 8. Stress cone adapter 9. Earthing eye Main Compounds 1. Front connector body 2. Stress cone adapter 3. Compression lugs 4. Treaded pin 5. Insulating plug 6. End cap 7. Cleaning tissue 8. Silicon grease 9. Sand paper 10. Installation tools and instruction Performance BH-CTF -301 Rated voltage 26/35(40.5)kV Max. operating voltage 40.5kV Rated continuous current 630A Partial discharge 45kV/≤10pC A.C withstand voltage 117kV/5min
