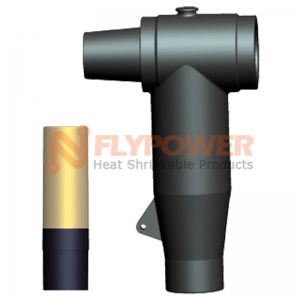

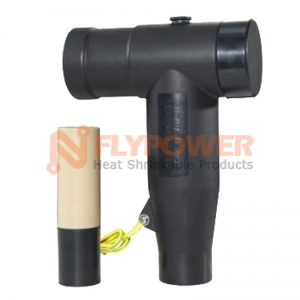

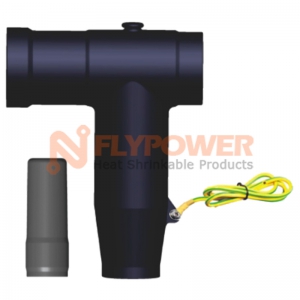

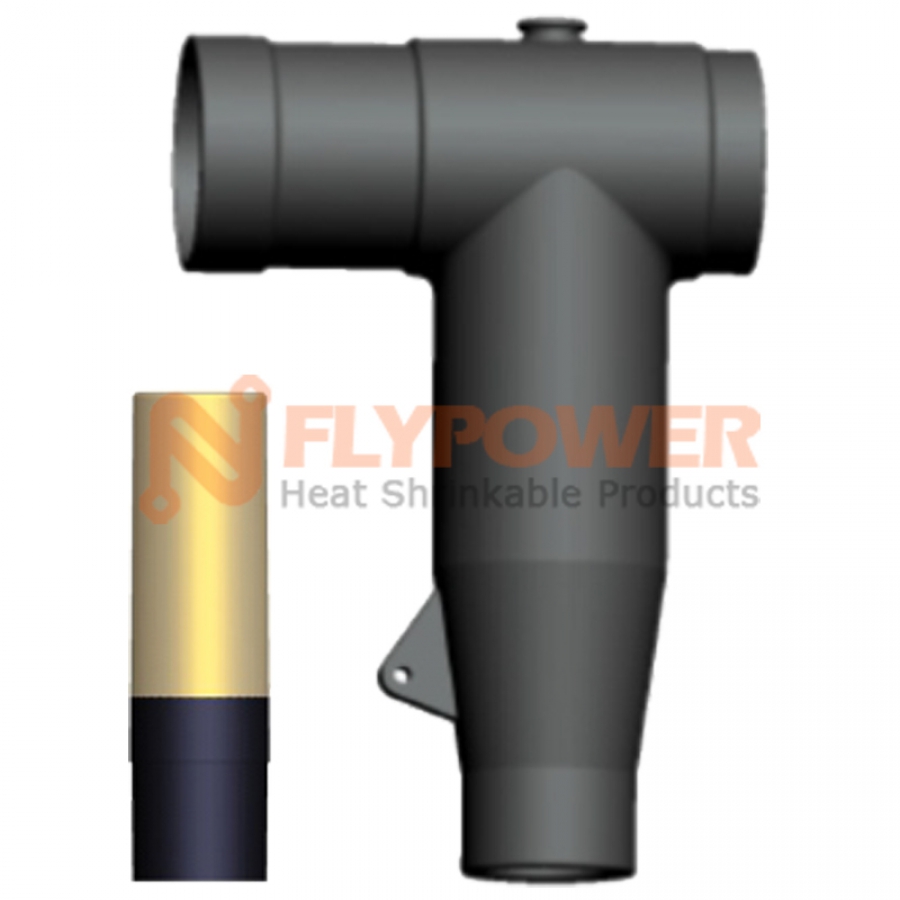

24KV 630A T type separable unscreened connector/front BH-CTF-U
- Applications: BH-CTF-U 24kV 630A T type separable unscreened connector, made of EPDM elastomer, is used for indoor application, the main body is composed of inner conductive layer, insulating layer and outer conductive layer, suitable for the connection of XLPE cables 12/20kV to medium voltage equipment (transformers,switchgears, motors, etc. ) up to 24KV.
-
Characteristics: 100% factory tested before shipment, quality guaranteed;
Compact design and suitable adaptor (stress cone) easy & simple installation;
The stress cone adaptor covers the cable range of 25mm2 -400mm2;
Combined with insulation, sealing. - Operating temperature range: N/A
- Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
- Colors: Black

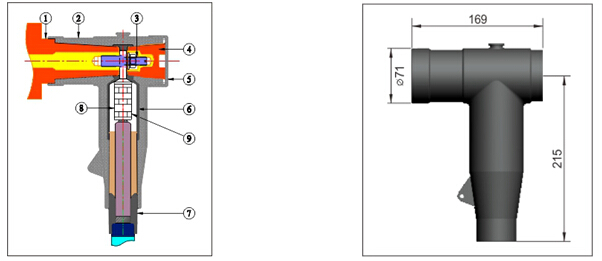

Size(mm) Main insulation diameter (mm) Cable cross-section(mm2) Φ 13.5 16-20 35 Φ 16.5 19-23 50-70 Φ 19.5 22-26 95-120 Φ 22.5 25-28 150 Φ 24.5 27-31 185-240 Φ 27.5 30-34 300 Φ 30 33-37 400 1.Threaded pin 2. Screened body 3. Inner screen 4.Insulating plug 5. Stress cone adaptor 6. Compression lug 7. Earthing eye 8. Conductive end cap Main Compounds 1. front connector body 2. Stress cone adapter 3. Compression lugs 4.Treaded pin 5. Insulating plug 6. Sand paper 7. Cleaning tissue 8. Silicon grease 9. Conductive end cap 10. Installation tools and instruction Performance BH-CTF-U-201 Rated voltage 12/20（24）kV Max. operating voltage 24kV Rated continuous current 630A Partial discharge 21kV/≤10pC A.C withstand voltage 54kV/5min
