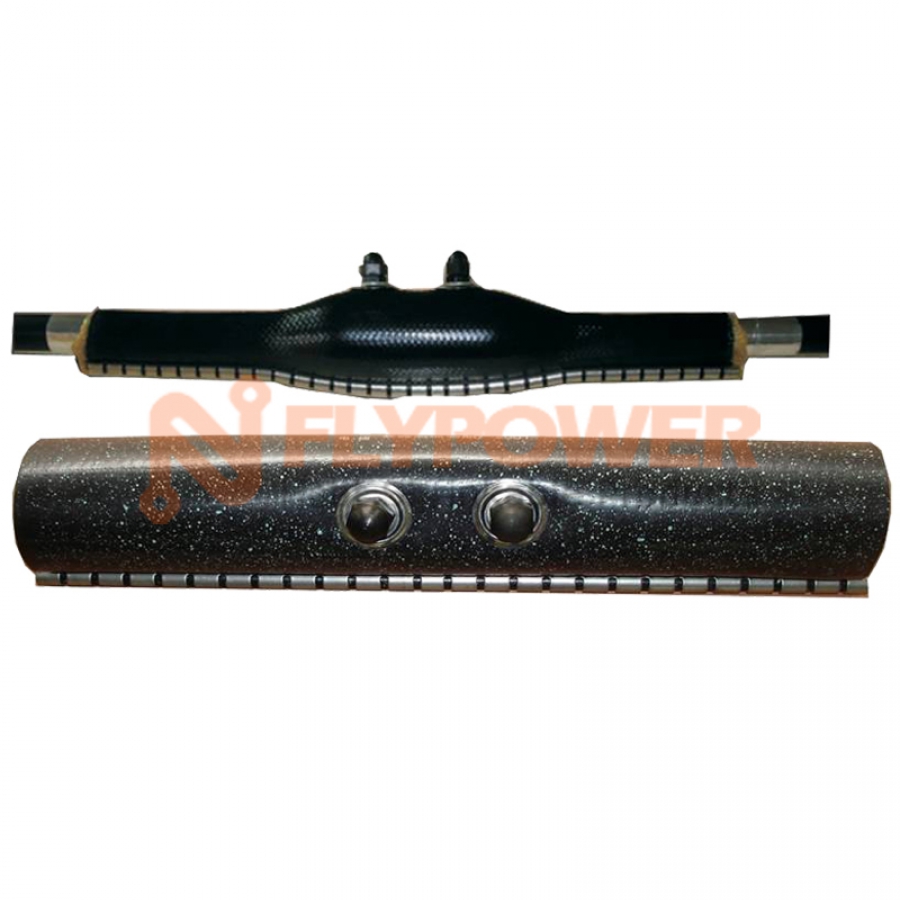

Heat shrinkable wraparound delivery system for air blocking of pressurized telephone cables BH-RSDA
- Applications: BH-RSDA Heat shrinkable wraparound delivery system for air blocking of pressurized telephone cables which is made of super-sleeve material, which combines the strength and durability of composite design with proven heat-shrink technology. Sleeve material is composed of several layers of specially blended polymers and adhesives, a fiber-reinforcing layer. Used with suitable commercially available resins, the BH-RSDA system forms a pressure block for the whole pressurized cable range.
-
Characteristics: High performance heat shrinkable closure for pressurised applications;
Just few sleeve sizes will accommodate single or double sheath cable with diameters from 0.4 to 0.6mm;
Provides high mechanical strength;
Applicable for polyethylene and metal jacketed cables;
Pre-installed valve for pressure access and measuring;
Up to 3 cables at each end can be accommodated using three finger clips with hot-melt adhesive. - Operating temperature range: Minimum fully recovery temperature: 120ºC
- Approvals / Specifications: RoHS
- Colors: Black
|
Model |
Splice bundle Dia. Max.(mm) |
Single cable |
Cable Cut-length (mm) |
Applicable cable pairs |
||
|
Wire Dia. (0.4mm) |
Wire Dia. (0.5mm) |
Wire Dia. (0.6mm) |
||||
|
RSDA 25/15-100 |
25 |
15 |
100 |
50～200 |
50～200 |
50～150 |
|
RSDA 50/25-150 |
50 |
25 |
150 |
200～600 |
200～600 |
100～500 |
|
RSDA 70/50-200 |
70 |
50 |
200 |
600～1800 |
600～1500 |
500～1200 |
|
RSDA 100/70-250 |
100 |
70 |
250 |
1800～2400 |
N/A |
N/A |
Remarks:
1. Special size, cut pieces are available on request;
2. Kit content: Heat shrinkable sleeve, PVC mesh liner, abrasive strip, shielding wire, cleaning tissue, PVC adhesive tape, aluminum foil, Installation procedure;
3. FLYPOWER model FH-RSDA is equated with Raychem RPBS.
|
Property |
Test Method |
Typical Data |
|
Tensile Strength |
ISO 37 |
17 MPa min. |
|
Ultimate Elongation |
ISO 37 |
350% min. |
|
Density |
ISO 1183 Method A |
1.0 – 1.2 g/cm3 |
|
Hardness |
ISO 868 |
50 – 70 D |
|
Accelerated Aging |
7 days at 150℃±2℃ ISO 188 |
|
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Thermal Endurance |
IEC 60216 |
120℃ |
|
Low Temperature Flexibility |
4 hours at –40℃±3℃ |
No cracking |
|
ASTM D2671 Procedure C |
||
|
Dielectric Strength |
IEC 60243 |
1 mm 180kV/cm |
|
min. 3.5 mm |
||
|
120kV/cm min. |
||
|
Volume Resistivity |
IEC 60093 |
1 x 1012Ω cm min. |
|
Dielectric Constant |
IEC 60250 |
5 max. |
|
Water Absorption |
14 days at 23℃±2℃ ISO 62 Method |
0.5% max. |
|
Resistance to Liquids |
7 days in transformer oil |
|
|
at 23℃±2℃(VDE 0370) ISO 1817 |
||
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Resistance to Fungi |
ASTM G21 |
Pass Rating 1 |
