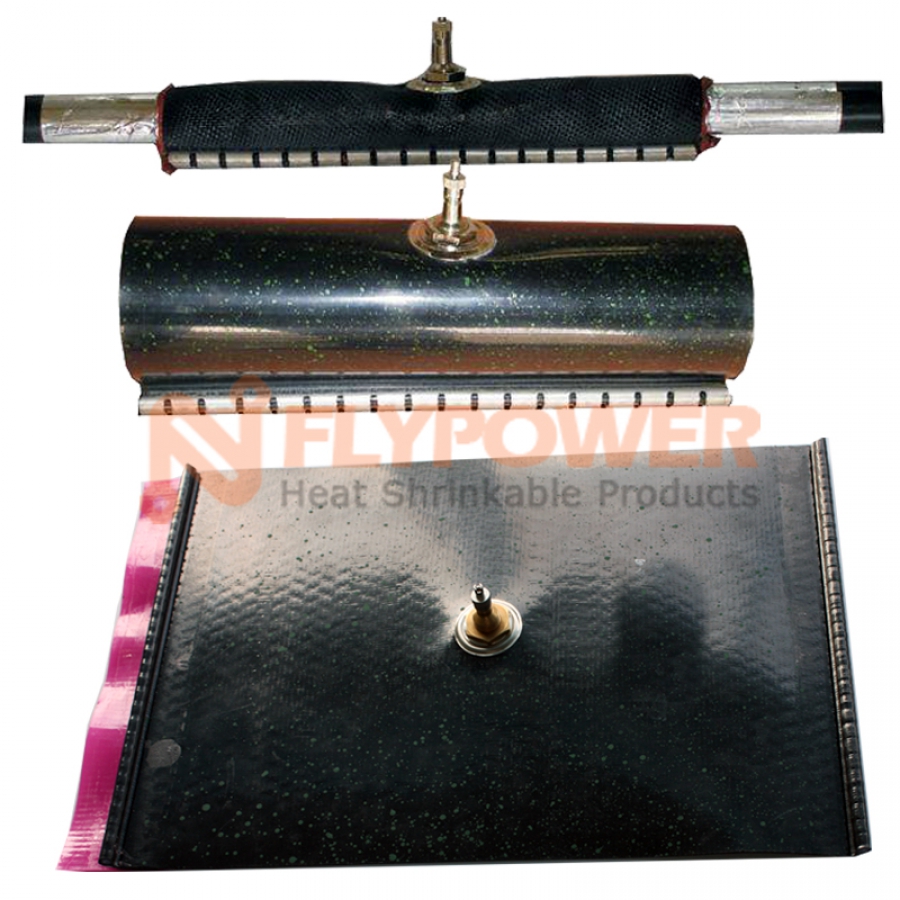

Heat shrinkable wraparound sleeve for pressure feeding BH-RSQA
- Applications: BH-RSQA heat shrinkable wraparound sleeve for pressure feedingwhich with special high performance hot melt adhesive to ensure a reliable seal.Suitable for all types of pressurized cables as pressure feeding, pressure access and pressure monitoring. Product can be used immediately after cooling down to ambient temperature.
-
Characteristics: High performance heat shrinkable closure for pressurised applications;
Three sizes to cover all diameters from15 to 95 mm;
Provides high mechanical strength;
Applicable for polyethylene and metal jacketed cables;
Pre-installed valve for pressure access and measuring;
Up to 3 cables at each end can be accommodated using three finger clips with hot-melt adhesive. - Operating temperature range: Minimum fully recovery temperature: 120ºC
- Approvals / Specifications: RoHS
- Colors: Black
|
Model |
Splice bundle Dia. Max.(mm) |
Single cable |
Cable Cut-length (mm) |
Applicable cable pairs |
||
|
Wire Dia. (0.4mm) |
Wire Dia. (0.5mm) |
Wire Dia. (0.6mm) |
||||
|
RSQA 45/15-250 |
45 |
15 |
250 |
50～150 |
50～150 |
50～150 |
|
RSQA 65/20-250 |
65 |
25 |
250 |
200～600 |
200～600 |
200～600 |
|
RSQA 95/30-250 |
95 |
50 |
250 |
800～1800 |
800～1500 |
800～1200 |
Remarks:
1. Special size, cut pieces are available on request;
2. Kit content: Heat shrinkable sleeve including valve with insert, Stainless steel channel, Cleaning tissue, Abrasive strip, aluminum foil, Installation procedure;
3. FLYPOWER model FH-RSQA is equated with Raychem RWPS.
|
Property |
Test Method |
Typical Data |
|
Tensile Strength |
ISO 37 |
17 MPa min. |
|
Ultimate Elongation |
ISO 37 |
350% min. |
|
Density |
ISO 1183 Method A |
1.0 – 1.2 g/cm3 |
|
Hardness |
ISO 868 |
50 – 70 D |
|
Accelerated Aging |
7 days at 150℃±2℃ ISO 188 |
|
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Thermal Endurance |
IEC 60216 |
120℃ |
|
Low Temperature Flexibility |
4 hours at –40℃±3℃ |
No cracking |
|
ASTM D2671 Procedure C |
||
|
Dielectric Strength |
IEC 60243 |
1 mm 180kV/cm |
|
min. 3.5 mm |
||
|
120kV/cm min. |
||
|
Volume Resistivity |
IEC 60093 |
1 x 1012Ω cm min. |
|
Dielectric Constant |
IEC 60250 |
5 max. |
|
Water Absorption |
14 days at 23℃±2℃ ISO 62 Method |
0.5% max. |
|
Resistance to Liquids |
7 days in transformer oil |
|
|
at 23℃±2℃(VDE 0370) ISO 1817 |
||
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Resistance to Fungi |
ASTM G21 |
Pass Rating 1 |
