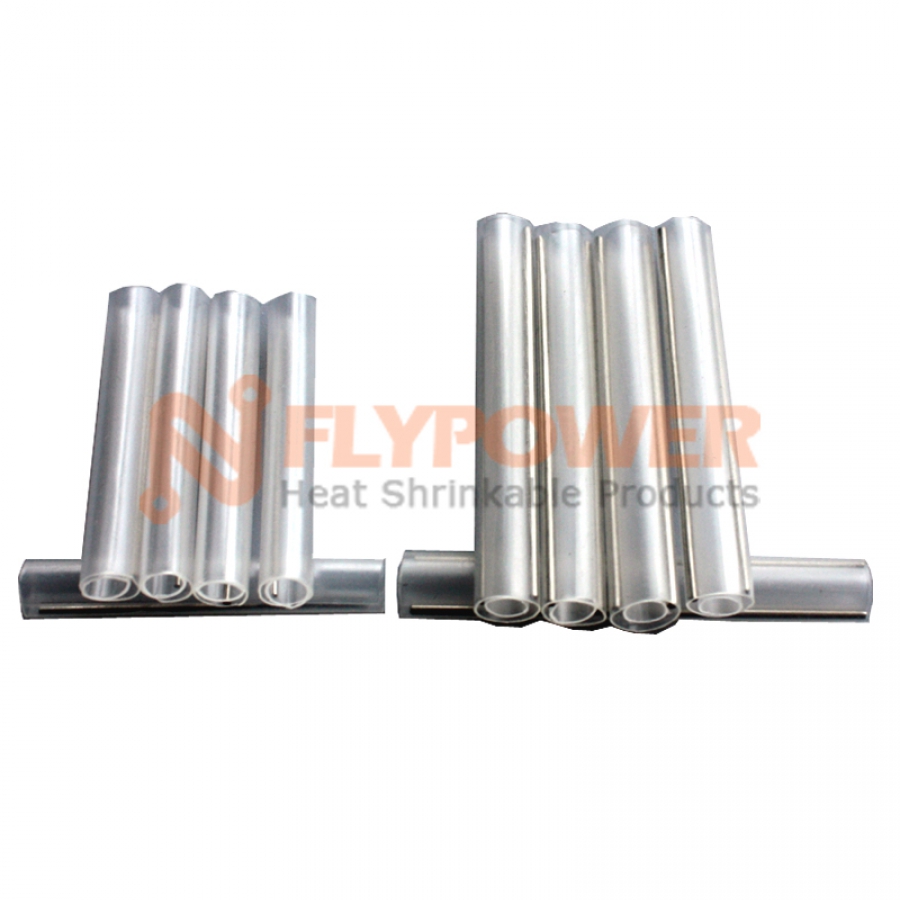

FTTH heat shrinkable fiber optic splice protector BH-FSP-FTTH
- Applications: BH-FSP-FTTH FTTH heat shrinkable fiber optic splice protector is consist of cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod. Designed for FTTH optical engineering to households, with hot melt connection for the FTTH cables or between the FTTH cable and the single core patch cord fiber.
-
Characteristics: Easily use and avoid any damaged to the optical fiber during installation;
Clear sleeve make it easy to detect splice before shrinkage;
Sealing structure make the splice free from effect of temperature and humidity from environment;
Double steel design which makes the mechanical strength stronger and more compact package. -
Operating temperature range: Operating temperature: -45℃ to +100℃
Starting shrinking temperature: +60℃;
Minimum fully recovery temperature: 90℃. - Approvals / Specifications: RoHS
- Colors: Transparent, Other colors available on request

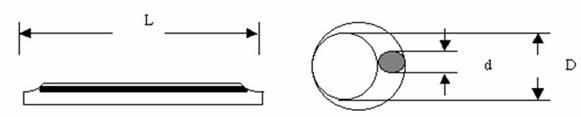

Model No.
Splice Protection Sleeve
Fusion tube
Steel Rod
Packing
O.D
Length
I.D
Length
Q'TY
O.D
Length
Round tubing series
BH-FSP-FTTH-1-60R
5.0
60.0
3.6
60.0
1
1.0
55.0
100
BH-FSP-FTTH-1-50R
5.0
50.0
3.6
50.0
1
1.0
45.0
100
BH-FSP-FTTH-1-45R
5.0
45.0
3.6
45.0
1
1.0
40.0
100
BH-FSP-FTTH-2-60R
5.5
60.0
3.6
60.0
2
1.0
55.0
100
BH-FSP-FTTH-2-50R
5.5
50.0
3.6
50.0
2
1.0
45.0
100
BH-FSP-FTTH-2-45R
5.5
45.0
3.6
45.0
2
1.0
40.0
100
Squareness tubing series
BH-FSP-FTTH-1-60S
5*6
60.0
2.2*3.5
60.0
1
1.0
59.0
100
BH-FSP-FTTH-1-50S
5*6
50.0
2.2*3.5
50.0
1
1.0
49.0
100
BH-FSP-FTTH-1-45S
5*6
45.0
2.2*3.5
45.0
1
1.0
44.0
100
BH-FSP-FTTH-2-60S
5.5 *5.8
60.0
2.2*3.5
60.0
2
1.0
59.0
100
BH-FSP-FTTH-2-50S
5.5 *5.8
50.0
2.2*3.5
50.0
2
1.0
49.0
100
BH-FSP-FTTH-2-45S
5.5 *5.8
45.0
2.2*3.5
45.0
2
1.0
44.0
100
Other lengths and sizes are available on request.
Property
Test Method
Typical Data
Tensile strength
ASTM D 2671
≥18 MP
Ultimate elongation
ASTM D 2671
700%
Density
ISO R 1183 D
0.94g/cm²
Dielectric strength
IEC 243
20KV/mm
Dielectric constant
IEC 243
2.5 max.
Longitudinal change
ASTM D2671
±5%.
(As supplied)
(Pcs/Bag)
(±0.2mm)
(±1mm)
(±1mm)
(Pcs)
(±0.1mm)
(±1mm)
