Heat shrinkable crimp splice connector BH-BCS
- Applications: BH-BCS Heat shrinkable crimp splice connector protects splices from water and corrosion. Providing strain relief and against vibration in rugged environments, which excellently insulates and protects electronic connections. It offer long-term performance, easy installation, and a low installed cost, which is more reliable than conventional crimp terminals.
-
Characteristics: Shrinkable Ratio:3:1;
Polyamide hot-melt adhesive provides excellent waterproof property;
Excellent stretch and mechanical damage resistance; Ideally translucent provides tensile strength;
High elasticity keeps steady performance. -
Operating temperature range: Operating temperature: -55℃~125℃
Minimum shrink temperature: 110℃ - Approvals / Specifications: RoHS

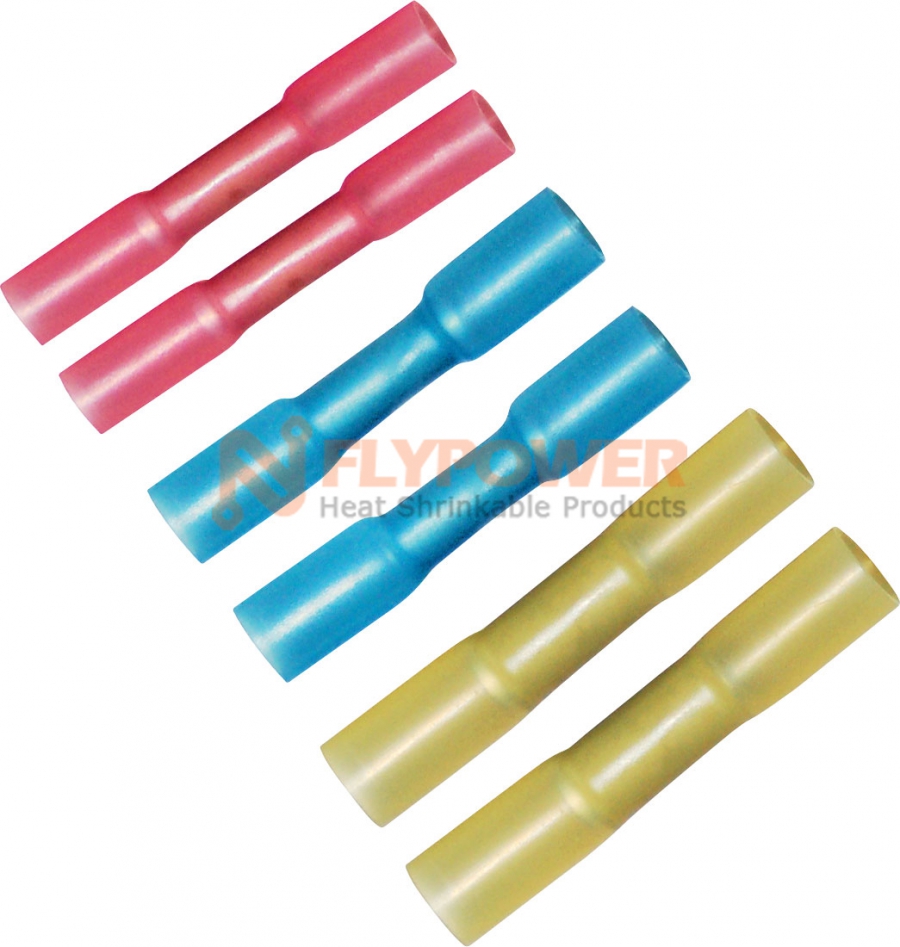

- Colors: Red, Yellow, Blue

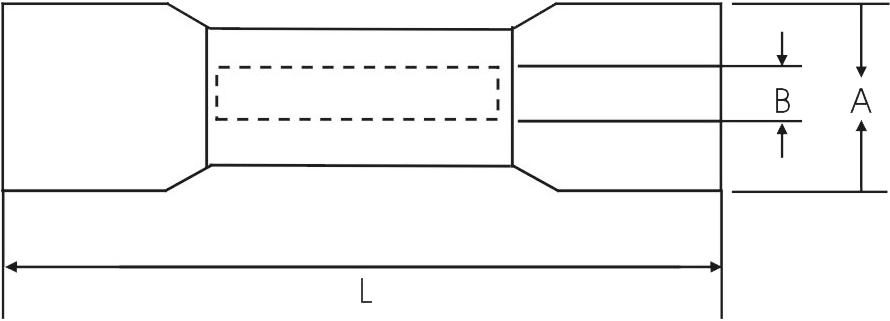

Order ref. Number Tubing ID(A) Brass ID(B) length L(mm） Wire Package A.W.G.(MM2) Standard color BH-BCS-1 4.7 1.7 35 22-18(0.5-1.0) Red 100pcs/bag BH-BCS-2 5.7 2.4 35 16-14(1.5-2.5) Blue 100pcs/bag BH-BCS-3 6.7 3.6 42 12-10(4.0-6.0) Yellow 100pcs/bag
Property Test Method Typical Data Tensile strength ASTM D 2671 26MPa(min) Elongation at break ASTM D 2671 500%(min) Longitudinal shrinkage UL224 0 to -10% Heat shock Tensile strength Ultimate elongation 250℃,4hrs No cracking, flowing of out wall 270%(min) Heat resistance 165+5℃/168 hrs No cracking, flowing of out wall Cold bend -40℃,1hr ASTM D 2671 No cracking Voltage withstand AC 2500V, 60seconds ASTM D 2671 No breakdown Volume resistance ASTM D 876 1014Ω.cm(min.) Copper corrosion(158℃,168hrs.) UL224 Pass Water absorption ASTM D 570 <0.5% Fluid resistance(23 ℃/ 24 hrs) ASTM D 2671 Good to excellent Specific gravity 0.96 Dielectric strength ASTM D 2671 32KV/mm
