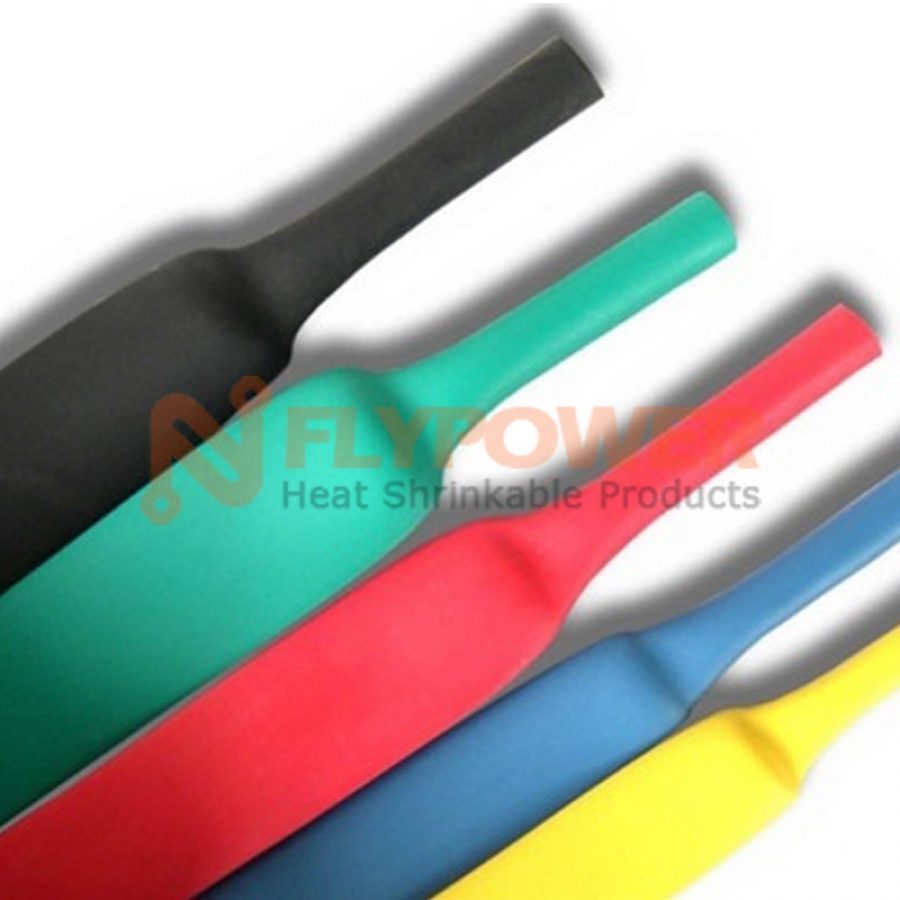

ENVIRONMENT FRIENDLY FLEXIBLE FLAME RETARDANT HEAT SHRINKABLE TUBING SHRINK RATIO 2:1 BH-2(Z)
- Applications: environment friendly flexible flame retardant heat shrinkable tubing widely used in the field of electronics, communication, automobile etc.
- Characteristics: BH-2(Z) specially designed formulation ensure the tubing to meet the standard of UL224 and CSA C 22.2. Free from environment harmful substance as PBB's, PBBO's, PBBE's and toxic heavy metal compounds in its components, make it meet the requirement of environment protection. In case of burning no Dioxin is produced
-
Operating temperature range: Minimum shrink temperature: 70℃
Minimum fully recovery temperature: 100℃ - Approvals / Specifications: Meet: UL 224, 125 VW-1 600V Sony SS-00259, RoHS
- Colors: Black, Red, Yellow, Blue, Green, White, Other colors available on request
|
Normal Size(mm) |
As supplied(mm) |
After recovered (mm) |
Standard length(m/spool) |
||
|
Inside diameter(mm) |
Wall thickness(mm) |
Inside diameter (max) |
Wall thickness(min) |
||
|
Φ1.0 |
1.5±0.2 |
0.18 |
0.50 |
0.33 |
200 |
|
Φ1.5 |
2.0±0.2 |
0.18 |
0.75 |
0.36 |
200 |
|
Φ2.0 |
2.7±0.2 |
0.25 |
1.00 |
0.44 |
200 |
|
Φ2.5 |
3.1±0.2 |
0.25 |
1.25 |
0.44 |
200 |
|
Φ3.0 |
3.7±0.3 |
0.25 |
1.50 |
0.44 |
200 |
|
Φ3.5 |
4.0±0.3 |
0.25 |
1.75 |
0.44 |
200 |
|
Φ4.0 |
4.7±0.3 |
0.25 |
2.00 |
0.44 |
200 |
|
Φ5.0 |
5.6±0.3 |
0.25 |
2.50 |
0.56 |
100 |
|
Φ6.0 |
6.8±0.3 |
0.25 |
3.00 |
0.56 |
100 |
|
Φ7.0 |
7.7±0.3 |
0.25 |
3.50 |
0.56 |
100 |
|
Φ8.0 |
8.8±0.3 |
0.30 |
4.00 |
0.56 |
100 |
|
Φ9.0 |
9.8±0.3 |
0.30 |
4.50 |
0.56 |
100 |
|
Φ10 |
10.7±0.4 |
0.30 |
5.00 |
0.56 |
100 |
|
Φ11 |
11.7±0.4 |
0.30 |
5.50 |
0.56 |
100 |
|
Φ12 |
12.7±0.4 |
0.30 |
6.00 |
0.56 |
50 |
|
Φ13 |
13.7±0.4 |
0.30 |
6.50 |
0.65 |
50 |
|
Φ14 |
14.7±0.4 |
0.35 |
7.00 |
0.69 |
50 |
|
Φ15 |
15.7±0.5 |
0.35 |
7.50 |
0.69 |
50 |
|
Φ16 |
16.7±0.5 |
0.35 |
8.00 |
0.69 |
50 |
|
Φ18 |
19.0±0.5 |
0.40 |
9.00 |
0.80 |
50 |
|
Φ20 |
21.4±0.5 |
0.40 |
10.00 |
0.80 |
50 |
|
Φ22 |
23.4±0.6 |
0.45 |
11.00 |
0.80 |
50 |
|
Φ25 |
26.5±0.8 |
0.45 |
12.50 |
0.90 |
50 |
|
Φ28 |
29.5±0.8 |
0.45 |
14.00 |
0.90 |
50 |
|
Φ30 |
31.5±0.8 |
0.45 |
15.00 |
0.90 |
50 |
|
Φ35 |
36.5±0.8 |
0.50 |
17.50 |
0.90 |
50 |
|
Φ40 |
42.0±0.8 |
0.50 |
20.00 |
1.00 |
50 |
|
Φ50 |
52.0±0.8 |
0.50 |
25.00 |
1.00 |
50 |
|
Φ60 |
62.0±1.0 |
0.50 |
30.00 |
1.00 |
30 |
|
Φ70 |
72.0±1.0 |
0.50 |
35.00 |
1.20 |
30 |
|
Φ80 |
82.0±1.0 |
0.55 |
40.00 |
1.20 |
30 |
|
Φ100 |
102.0±1.0 |
0.55 |
50.00 |
1.30 |
30 |
|
Φ125 |
126.0±1.0 |
0.55 |
60.00 |
1.30 |
15 |
|
Φ150 |
152.0±1.0 |
0.55 |
75.00 |
1.30 |
15 |
Special size, cut pieces are available on request.
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
UL 224 |
-55 to +125℃ |
|
Tensile strength |
ASTM D 2671 |
>14MPa |
|
Ultimate elongation |
ASTM D 2671 |
400% |
|
Longitudinal shrinkage |
UL224 |
±5% |
|
Eccentricity |
ASTM D 2671 |
<30% |
|
Heat aging Tensile strength Ultimate elongation |
158℃/168hrs
|
12MPa >350% |
|
Flammability |
VW-1 |
Pass |
|
Dielectric strength |
IEC243 |
>20KV/mm |
|
Volume resistance |
IEC93 |
> |
|
Copper stability |
UL 224 |
Pass |
