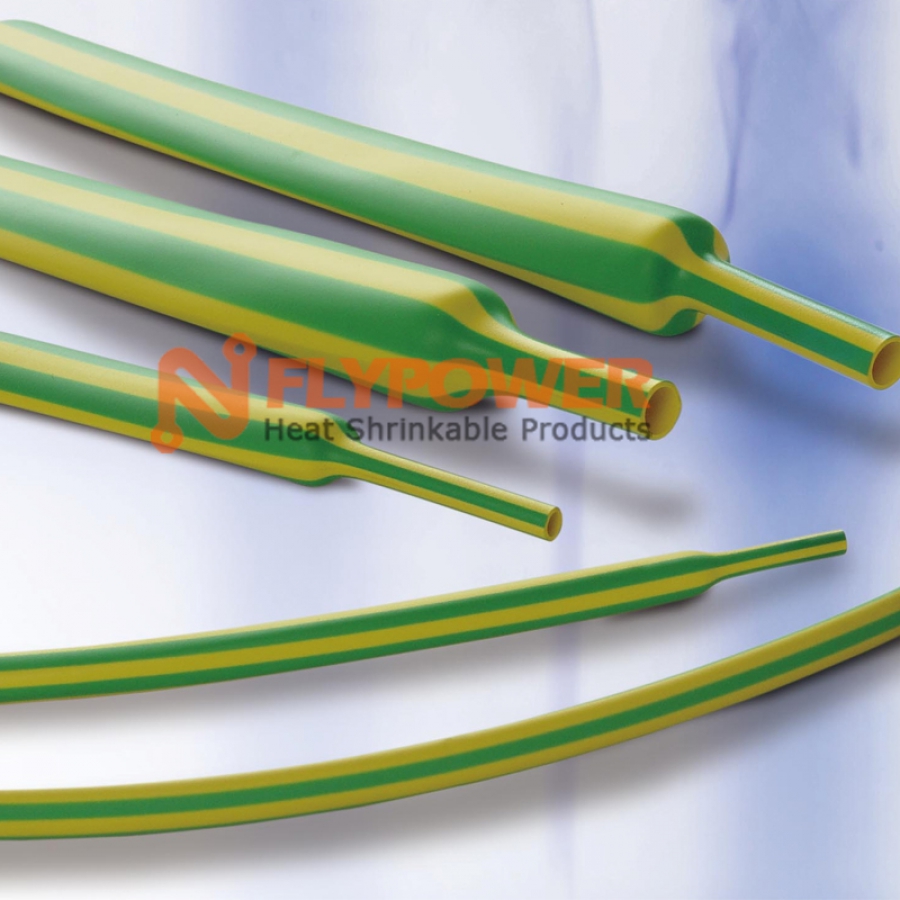

YELLOW & GREEN STRIPED FLEXIBLE FLAME RETARDANT TUBING SHRINK RATIO 2:1,3:1 BH-2(YG)

Download attachments: 中文 BH-2F(YG) English BH-2F(YG)

Applications: Yellow&green striped flexible flame retardant tubing make it easily to install and identify to ground conductors
Characteristics: BH-2(YG) is outstanding physical,chemicall and electrical properties and free form environment harmful substance as PBB’s PBBO’s,PBBW’s and toxic heavy metal compounds in its components.
Operating temperature range: Minimum shrink temperature: 70℃
Minimum fully recovery temperature: 100℃
Approvals / Specifications: Meet: SAE-AMS-DTL-23053/5 Class 1&3 ;Sony-SS-00259,RoHS
Colors: Yellow & green striped

Specification
Technical Data

Product Dimensions 2:1(mm/inch)

Normal size (mm)	As supplied (mm)	After recovered (mm)		Standard length (m/spool)
Normal size (mm)	Inside diameter	Inside diameter(Max.)	Wall thickness(Min)	Standard length (m/spool)
3/64	1.2	0.6	0.33	200
1/16	1.6	0.8	0.36	200
3/32	2.4	1.2	0.44	200
1/8	3.2	1.6	0.44	200
3/16	4.8	2.4	0.56	100
1/4	6.4	3.2	0.56	100
5/16	8	4	0.56	100
3/8	9.5	4.8	0.56	100
1/2	12.7	6.4	0.65	50
5/8	16	8	0.69	50
3/4	19.1	9.5	0.8	50
1	25.4	12.7	0.9	50
11/4	31.8	15.9	0.9	50
11/2	38.1	19.1	1.02	50
2	50.8	25.4	1.02	50
3	76.2	38.1	1.2	30
4	101.6	50.8	1.3	30

Product Dimensions 3:1(mm/inch)

Normal size (mm)	As supplied (mm)	After recovered (mm)		Standard length (m/spool)
Normal size (mm)	Inside diameter	Inside diameter(Max.)	Wall thickness(Min)	Standard length (m/spool)
1.6/0.5	1.6	0.5	0.51	200
2.4/0.8	2.4	0.8	0.51	200
3.2/1	3.2	1	0.55	200
4.8/1.5	4.8	1.5	0.6	100
6.4/2	6.4	2	0.65	100
9.5/3	9.5	3	0.75	100
12.7/4	12.7	4	0.75	50
19.1/6	19.1	6	0.85	50
25.4/8	25.4	8	1	50
39/13	39	13	1.15	50

Special size, cut pieces are available on request.

Property	Test Method	Typical Data
Tensile strength	ASTM D 2671	14MPa
Elongation at break	ASTM D 2671	800%
Tensile strength after aging at 175℃ for 168 hrs	ASTM D 2671	14MPa
Elongation after aging at 175℃ for 168 hrs	ASTM D 2671	350%
Flammability	UL 224 /VW-1 SAE-AMS-DTL-23053/5	Pass
Heat shock (250℃ / 4 hrs.)	ASTM D 2671	No cracking
Cold bend test (-55℃ / 4 hrs.)	ASTM D 2671	No cracking
Dielectric strength	ASTM D 150	22KV/mm
Volume resistance	ASTM D 876	10¹⁴Ω .cm
Copper Corrosion	UL 224	Pass
Water absorption	ASTM D 570	0.15%
Chemical resistance	SAE-AMS-DTL-23053/5	Pass
Longitudinal shrinkage	UL 224	0±5%
Eccentricity	UL 224	30%
