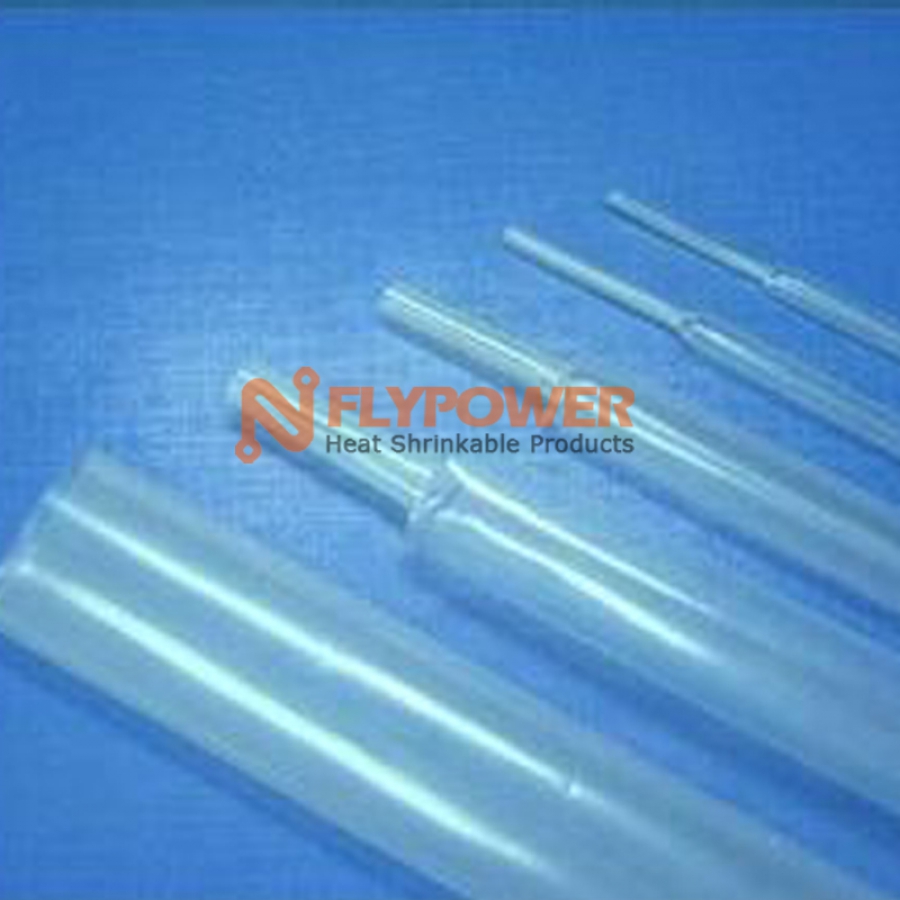

175℃ SEMI-RIGID PVDF (POLYVINYLIDENE FLUORIDE) HEAT SHRINKABLE TUBING BH-175K
- Applications: Semi-rigid pvdf heat shrinkable tubing it reliably protects wires, solder joints, terminals and connections and components from most industrial fuels, solvents and chemicals
- Characteristics: BH-175K is semi-rigid, excellent flame retardant heat-shrinkable Polyvinylidene fluoride (PVDF) tube for applications requiring high temperature performance, outstanding abrasion and cut through resistance or superior chemical and solvent resistant properties
-
Operating temperature range: Operating temperature: -55℃ to +175℃
Minimum shrink temperature: 175℃ - Approvals / Specifications: Meet: UL, VW-1, SAE-AMS-DTL-23053/18
- Colors: Transparent
|
Normal size
|
As supplied (mm) |
After recovered (mm) |
Standard length (m/spool) |
||
|
Inch |
mm |
Inside diameter (Min.) |
Inside diameter (Max.) |
Wall thickness（Nom.） |
|
|
3/64 |
1.2 |
1.2 |
0.6 |
0.25±0.05 |
200 |
|
1/16 |
1.6 |
1.6 |
0.8 |
0.25±0.05 |
200 |
|
3/32 |
2.4 |
2.4 |
1.2 |
0.25±0.05 |
200 |
|
1/8 |
3.2 |
3.2 |
1.6 |
0.25±0.05 |
200 |
|
3/16 |
4.8 |
4.8 |
2.4 |
0.25±0.05 |
100 |
|
1/4 |
6.4 |
6.4 |
3.2 |
0.30±0.08 |
100 |
|
3/8 |
9.5 |
9.5 |
4.8 |
0.30±0.08 |
100 |
|
1/2 |
12.7 |
12.7 |
6.4 |
0.30±0.08 |
100 |
|
3/4 |
19.1 |
19.1 |
9.5 |
0.43±0.08 |
50 |
|
1 |
25.4 |
25.4 |
12.70 |
0.48±0.08 |
50 |
|
1-1/4 |
31.8 |
31.8 |
15.9 |
0.51±0.08 |
50 |
|
1-1/2 |
38.1 |
38.1 |
19.1 |
0.51±0.08 |
50 |
Special size, cut pieces are available on request.
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55℃to +175℃ |
|
Tensile strength |
ASTM D 2671 |
≥34.5 MPa |
|
Elongation at break |
ASTM D 2671 |
≥150% |
|
Elongation at break after aging |
250℃, 168 hrs. |
≥100% |
|
Heat shock |
300℃, 1 hr |
No cracking |
|
Cold bend |
-55℃, 1 hr. |
No cracking |
|
Flammability |
VW-1 |
Pass |
|
Volume resistance |
IEC93 |
≥ |
|
Dielectric strength |
ASTM D 2671 |
≥30KV/mm |
