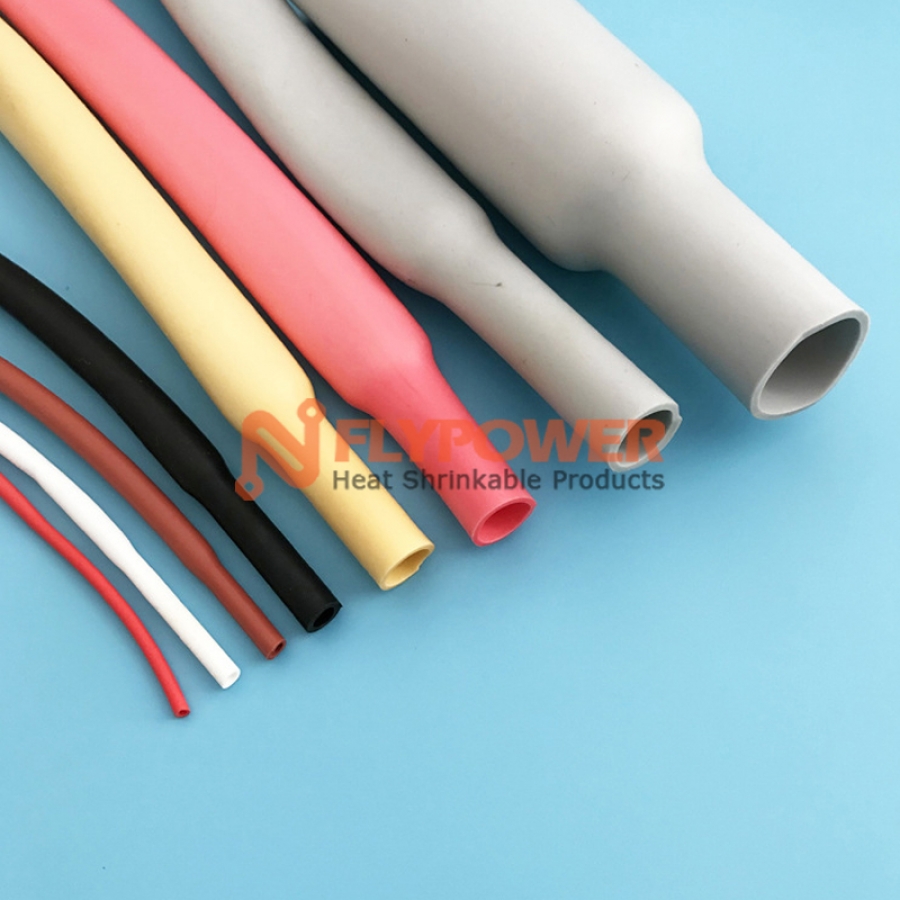

Silicon rubber heat shrink tubing BH-SR200
- Applications: BH-SR200 silicon rubber heat shrink tubing can be used at high temperature for a long time, acid and alkali resistance, solvent resistance, resistance to external mechanical damage. Usually, this heat shrink tubing is used for electrical equipment, light fixtures and medical instruments.
- Characteristics: BH-SR200 silicon rubber tubing is made of silicone rubber and polymer elastomer modified by radiation which has a high temperature resistance of up to 200℃.
-
Operating temperature range: Minimum shrink temperature: 90°C
Fully recovery temperature: 170°C,
Operating temperature range: -55°C～ +200°C; - Approvals / Specifications: RoHS
- Colors: Black, Red, Gray, Other colors available on request
Size As supplied(mm) Fully Recovered(mm) Standard Package ID Thin Type Thick Type ID Thin Type Thick Type Meter/Spool or Meter/Pc φ1.0 1.0 0.5±0.1 0.80±0.1 0.6 0.7±0.1 1.1±0.1 200 φ1.5 1.5 0.5±0.1 0.80±0.1 0.8 0.7±0.1 1.1±0.1 200 φ2.0 2.0 0.5±0.1 0.80±0.1 1.2 0.7±0.1 1.1±0.1 200 φ2.5 2.5 0.5±0.1 0.80±0.1 1.5 0.7±0.1 1.1±0.1 200 φ3.0 3.0 0.5±0.1 0.80±0.1 1.8 0.7±0.1 1.1±0.1 200 φ3.5 3.5 0.5±0.1 0.80±0.1 2.0 0.7±0.1 1.1±0.1 100 φ4.0 4.0 0.5±0.1 0.80±0.1 2.5 0.7±0.1 1.1±0.1 100 φ4.5 4.5 0.5±0.1 0.80±0.1 2.8 0.7±0.1 1.1±0.1 100 φ5.0 5.0 0.5±0.1 0.80±0.1 3.0 0.7±0.1 1.1±0.1 100 φ6.0 6.0 0.5±0.1 0.80±0.1 3.8 0.7±0.1 1.1±0.1 100 φ7.0 7.0 0.5±0.1 0.80±0.1 4.0 0.7±0.1 1.1±0.1 100 φ8.0 8.0 0.5±0.1 0.80±0.1 4.8 0.7±0.1 1.1±0.1 100 φ9.0 9.0 0.5±0.1 0.80±0.1 5.0 0.7±0.1 1.1±0.1 100 φ10.0 10.0 1.0±0.1 1.50±0.1 6.5 1.7±0.1 2.5±0.1 100 φ12 12.0 1.0±0.1 1.50±0.1 7.0 1.7±0.1 2.5±0.1 100 φ15 15.0 1.0±0.1 1.50±0.1 9.0 1.7±0.1 2.5±0.1 50 φ20 20.0 1.0±0.1 1.50±0.1 13.0 1.7±0.1 2.5±0.1 50 φ25 25.0 1.0±0.1 1.50±0.1 15.0 1.7±0.1 2.5±0.1 50 φ30 30.0 1.0±0.1 1.50±0.1 18.0 1.7±0.1 2.5±0.1 50 φ35 35.0 1.0±0.1 1.50±0.1 20.0 1.7±0.1 2.5±0.1 1 φ40 38.0 1.0±0.1 1.50±0.1 25.0 1.7±0.1 2.5±0.1 1 φ50 47.0 1.0±0.1 1.50±0.1 30.0 1.7±0.1 2.5±0.1 1 φ60 57.0 1.5±0.1 2.00±0.1 38.0 2.5±0.1 3.2±0.1 1 φ70 67.0 1.5±0.1 2.00±0.1 45.0 2.5±0.1 3.2±0.1 1 φ80 77.0 1.5±0.1 2.00±0.1 48.0 2.5±0.1 3.2±0.1 1 φ90 87.0 1.5±0.1 2.00±0.1 52.0 2.5±0.1 3.2±0.1 1 φ100 97.0 1.5±0.1 2.00±0.1 58.0 2.5±0.1 3.2±0.1 1 φ110 107.0 1.5±0.1 2.00±0.1 63.0 2.5±0.1 3.2±0.1 1 Test Item Value Density 25℃ 1.2 Rigidity JIS-A 70 Tensile strength 6.9Mpa(70Kgf/cm) Elongation at break 400% Tensile strength at break JIS-A 25Kgf/Cm Volume resistance 2*1214 Ω.cm Breakdown Voltage (1mm) 25KV Dielectric constant (*)50Hz 3.2 Operating temperature range -50℃-+200℃ Shrinking Ratio about 50% Shrinking temperature 90℃ above RoHS Compliant Pass (SGS report) Low Smoking IEC 60754 Pass Flame Retardancy UL-224 VW-1 Radiation resistance – 106MGy Pass Chemical resistance Not strong acid or alkali resistance Fluid Resistance Splash Protection of Aviation Fuel, Brake Fluid, Hydraulic Fluid, Lubricating Oil, Water Aging 200oC- 4hours, 180oC-168 hours. Pass
