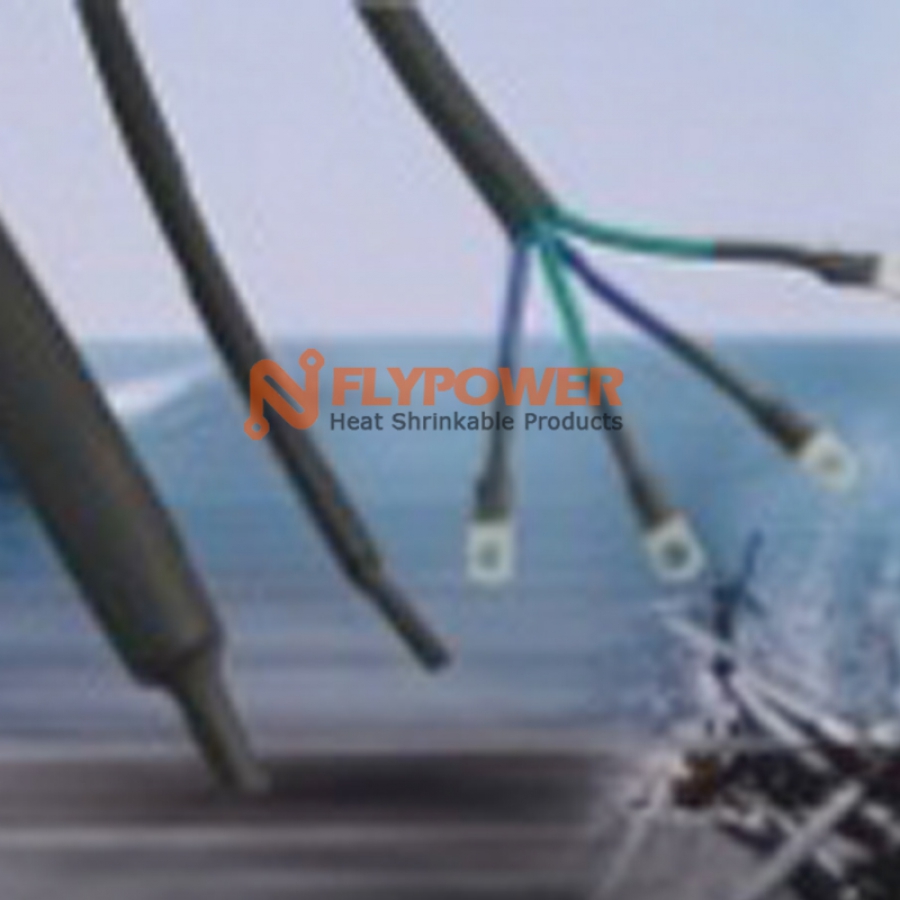

200℃ HIGH TEMPERATURE HEAT SHRINKABLE FLUOROELASTOMER TUBING BH-200E, BH-200E(TW)
- Applications: Heat shrinkable fluoroelastomer tubing applications requiring high resistance to corrosive fluids, fuels, lubricants, acids and solvents at elevated temperature.
- Characteristics: BH-200E, BH-200E(TW) made from modified fluoroelastomer (Viton), with superior impact, Abrasion and cut through resistant.Very flexible at high and low temperatures without cracking
-
Operating temperature range: Minimum fully recovery temperature: 175℃
Minimum shrink temperature: 150℃ - Approvals / Specifications: Meet: UL, VW-1,SAE-AMS-DTL-23053/13
- Colors: Black
|
Normal size |
As supplied (mm) |
After recovered (mm) |
*Style |
Standard length (m/spool) |
||
|
mm |
Inch |
Inside diameter(Min.) |
Inside diameter(Max.) |
Wall thickness（Nom.） |
||
|
BH-200E fluoroelastomer tubing |
||||||
|
1/8 |
3.2 |
3.2 |
1.6 |
0.76 |
O |
50 |
|
3/16 |
4.8 |
4.8 |
2.4 |
0.90 |
O |
50 |
|
1/4 |
6.4 |
6.4 |
3.2 |
0.90 |
O |
50 |
|
3/8 |
9.5 |
9.5 |
4.8 |
0.90 |
O |
50 |
|
1/2 |
12.7 |
12.7 |
6.4 |
1.10 |
O |
30 |
|
3/4 |
19.1 |
19.1 |
9.5 |
1.30 |
－ |
30 |
|
1 |
25.4 |
25.4 |
12.7 |
1.65 |
－ |
30 |
|
1 1/2 |
38.1 |
38.1 |
19.1 |
1.90 |
－ |
15 |
|
2 |
50.8 |
50.8 |
25.4 |
2.80 |
－ |
1 |
|
BH-200E (TW) thin wall fluoroelastomer tubing |
||||||
|
3/8 |
9.5 |
9.5 |
4.8 |
0.90 |
O |
50 |
|
1/2 |
12.7 |
12.7 |
6.4 |
0.90 |
O |
30 |
|
5/8 |
15.9 |
15.9 |
7.9 |
1.07 |
O |
30 |
|
3/4 |
19.1 |
19.1 |
9.5 |
1.07 |
－ |
30 |
|
7/8 |
22 |
22 |
11 |
1.25 |
－ |
30 |
|
1 |
25.4 |
25.4 |
12.7 |
1.25 |
－ |
30 |
|
1 1/2 |
31.8 |
31.8 |
15.7 |
1.40 |
－ |
30 |
|
1 1/4 |
38.1 |
38.1 |
19.0 |
1.40 |
－ |
15 |
|
2 |
50.8 |
50.8 |
25.4 |
1.65 |
－ |
15 |
* O: airfilled or oval, * －: flattened
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55 to +200℃ |
|
Tensile strength |
ASTM D 2671 |
≥8.5 MPa |
|
Elongation at break |
ASTM D 2671 |
≥250% |
|
Elongation at break after aging |
250℃, 168 hrs. |
≥200% |
|
Heat shock |
300℃, 4 hrs. |
No cracking |
|
Flexibility |
ASTM D 412 |
≤13.8MPa |
|
Flammability |
ASTM D 2671 |
Self-extinguish in 15sec |
|
Volume resistance |
ASTM D 876 |
≥109Ω.cm |
|
Dielectric strength |
ASTM D 2671 |
≥7.9KV/mm |
|
Copper corrosion |
SAE-AMS-DTL-23053/13(175℃/16hrs) |
No corrosion |
