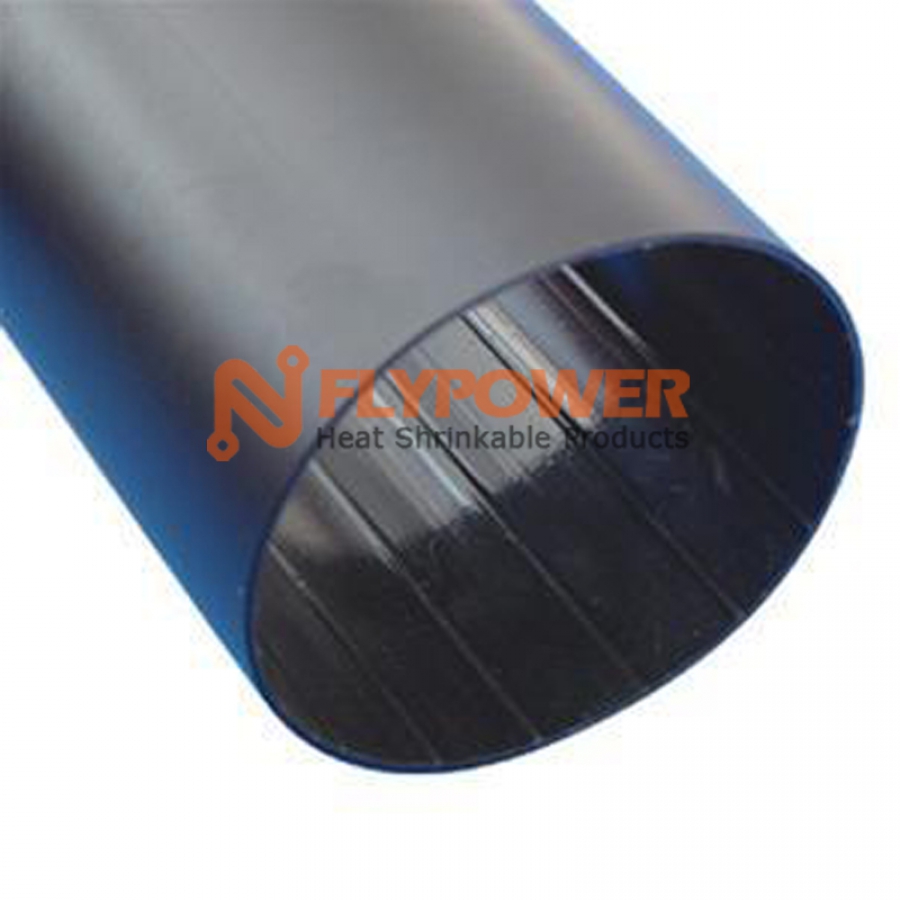

5.6:1 FLAME RETARDANT MEDIUM WALL HEAT SHRINKABLE TUBING BH-FR5X
- Applications: 5.6:1 Flame retardant medium wall heat shrinkable tubing suitable to fit components with large size differences
- Characteristics: BH-FR5X tubing manufactured with special technology with shrink ratio as high as 5.6:1 and resistant to common fluids and solvents
-
Operating temperature range: Operating temperature: -55℃～135℃
Minimum fully recovery temperature：130℃ -
Approvals / Specifications: Meet: UL224 VW-1 125 600V
SAE-AMS-DTL-23053/15
Meet: RoHs，Sony-SS-00259 - Colors: Black
| Normal size (mm) | As supplied (mm) | After recovered (mm) | |
| Inside diameterMin.) | Inside diameter (Max.) | Wall thickness | |
| BH-FR5X 15/4 | 15 | 3.8 | 1.52 |
| BH-FR5X 32/6 | 32 | 5.6 | 1.52 |
| BH-FR5X 45/8 | 45 | 8 | 2.4 |
| BH-FR5X 51/10 | 51 | 9.5 | 2.7 |
|
Property |
Test Method |
TypicalData |
|
Tensile strength |
ASTM D2671 |
>16MPa |
|
Elongation at break |
ASTM D2671 |
>500% |
|
Tensile strength after aging（175℃，168hrs） |
ASTM D2671 |
>14Mpa |
|
Elongation after aging（175℃，168hrs） |
ASTM D2671 |
>250％ |
|
Flammability |
Self-extinguish in 30sec |
Pass |
|
Heat shock（250℃，4hrs） |
ASTM D2671 |
No cracking |
|
Cold bend test（-55℃，4hrs） |
ASTM D2671 |
No cracking |
|
Dielectric strength |
ASTM 150 |
20kV/mm> |
|
Volume resistance |
ASTM 876 |
|
|
Copper corrosion |
UL224 |
Pass |
|
Water absorption |
ASTM D570 |
>0.15% |
|
Chemical resistance |
SAE-AMS-DTL-23053/5 |
Pass |
|
Longitudinal shrinkage |
UL224 |
-5％～+5％ |
|
Eccentricity |
UL224 |
<30% |
