Military Standard, Heat Shrink Printable Marker Tube BH-2(MP)

Military Standard, Heat Shrink Printable Marker Tube BH-2(MP)
Download attachments: BH-2(MP) E.pdf

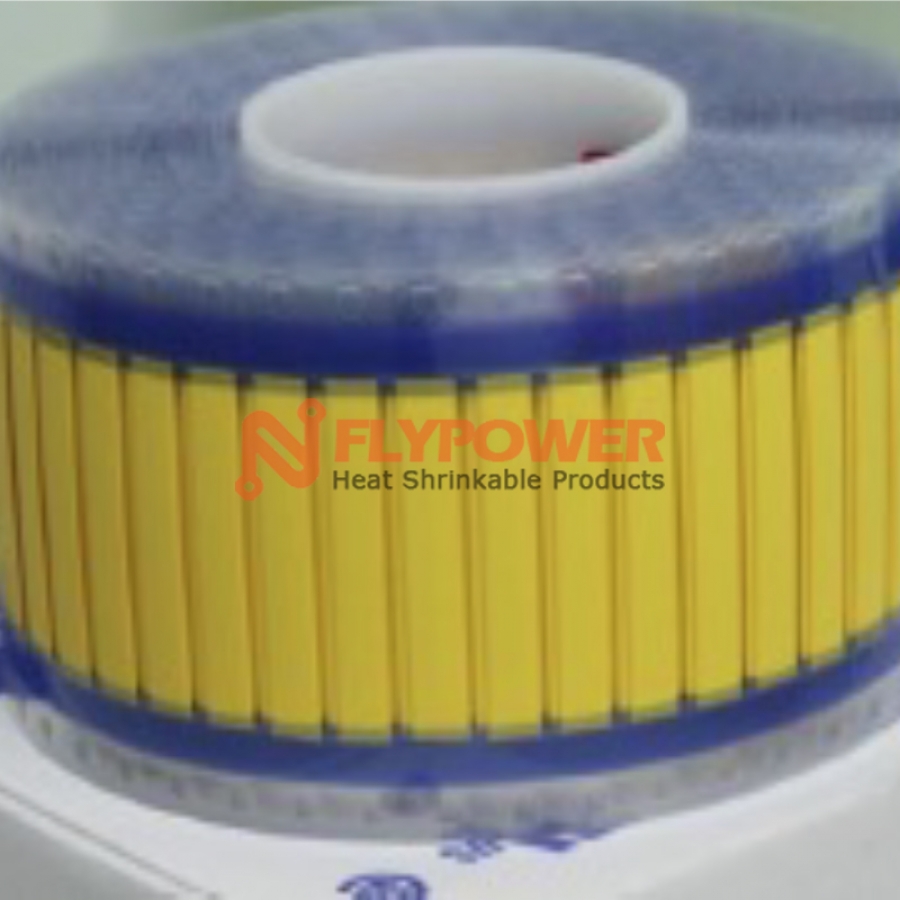

  • Applications: Halogen-free flame-retardant cross-linked polyolefin heat-shrinkable marking sleeve; conforms to SAE AS 81531 4.6.2, EN45545-2 2013 R22/R23, RoHS, etc.; can be printed with a thermal transfer printer or a laser engraving machine according to the requirements of use Marking; Marking is scratch-resistant and solvent-resistant, and the marking effect is long-lasting; for patch products, you can choose to cut the 50mm long product with two or three equal parts of the tooth suture to adapt to the short marking situation and reduce the use of the marking tube, save costs.
  • Characteristics: Shrink Ratio: 2:1 or 3:1 ROHS compliant
    Halogen free, low smoke emission, highly flame retardant
    High reliability, permanent identification
    Heat sensitive, swift shrinking
    Computerized printing, fonts at your disposal
    Meets:EN45545-2 2013 R22/R2, SAE AS 81531 4.6.2
    Single sided printing and Double sided printing formats available beam
  • Operating temperature range: operating temperature:-55℃~+125℃
    Min. Shrink temperature:+75℃
    Full recovery temperature:+135℃~+200℃
  • Approvals / Specifications: RoHS
  • Colors: Yellow, White, Other colors available on request

BH-2(MP) Shrink ratio-2:1:

Part Number

As Supplied (mm)

After Recovery(mm)

Applicable cable
 (mm)

ID(D)
≥(mm)

Flatten Width
≥(mm)

ID(d)

Single Wall Thickness

BH-2(MP)-M-2X-1.6-

1.6

3.4

≤0.79

0.44±0.06

0.87~1.36

BH-2(MP)-M-2X-2.4-

2.4

4.7

≤1.18

0.46±0.06

1.27~1.90

BH-2(MP)-M-2X-3.2-

3.2

5.9

≤1.59

0.58±0.06

1.75~2.66

BH-2(MP)-M-2X-4.8-

4.8

8.5

≤2.36

0.58±0.06

2.54~4.06

BH-2(MP)-M-2X-6.4-

6.4

11.1

≤3.18

0.62±0.06

3.81~5.46

BH-2(MP)-M-2X-9.5-

9.5

16.2

≤4.75

0.63±0.06

5.59~8.12

BH-2(MP)-M-2X-12.7-

12.7

21.2

≤6.35

0.65±0.07

6.99~10.79

BH-2(MP)-M-2X-19.1-

19.1

31.2

≤9.53

0.68±0.07

10.1~16.25

BH-2(MP)-M-2X-25.4-

25.4

41.5

≤12.7

0.70±0.07

13.97~21.5

BH-2(MP)-M-2X-38.1-

38.1

62.2

≤19.1

0.73±0.07

21.01~32.3

BH-2(MP)-M-2X-50.8-

50.8

82.4

≤25.4

0.74±0.08

27.94~43.1

BH-2(MP)-M-2X-76.2-

76.2

123.8

≤38.1

0.75±0.09

41.91~64.6

BH-2(MP) Shrink ratio-3:1:

Part Number

As Supplied (mm)

After Recovery(mm)

Applicable cable
 (mm)

ID(D)
≥(mm)

Flatten Width
≥(mm)

ID(d)

Single Wall Thickness

BH-2(MP)-M-3X-1.6-

1.6

3.4

≤0.79

0.44±0.06

0.55~1.27

BH-2(MP)-M-3X-2.4-

2.4

4.7

≤1.18

0.46±0.06

0.81~1.90

BH-2(MP)-M-3X-3.2-

3.2

5.9

≤1.59

0.58±0.06

1.11~2.66

BH-2(MP)-M-3X-4.8-

4.8

8.5

≤2.36

0.58±0.06

1.75~4.06

BH-2(MP)-M-3X-6.4-

6.4

11.1

≤3.18

0.62±0.06

2.31~5.46

BH-2(MP)-M-3X-9.5-

9.5

16.2

≤4.75

0.63±0.06

3.47~8.12

BH-2(MP)-M-3X-12.7-

12.7

21.2

≤6.35

0.65±0.07

4.64~10.79

BH-2(MP)-M-3X-19.1-

19.1

31.2

≤9.53

0.68±0.07

6.99~16.25

BH-2(MP)-M-3X-25.4-

25.4

41.5

≤12.7

0.70±0.07

9.29~21.59

BH-2(MP)-M-3X-38.1-

38.1

62.2

≤19.1

0.73±0.07

14.2~32.41

BH-2(MP)-M-3X-50.8-

50.8

82.4

≤25.4

0.74±0.08

18.9~43.22

BH-2(MP)-M-3X-76.2-

76.2

123.8

≤38.1

0.75±0.09

28.4~64.80



Property

Test Method

Value

Longitudinal change rate

ASTM D 2671

-2

Tensile strength

ASTM D2671

≥10.3MPa

Breakdown elongation

ASTM D2671

≥200%

Aging(136℃/168hrs)

ASTM D2671

≥100%

Breakdown Elongation

Low temperature flexibility (-55℃/4hrs)

ASTM D2671

No Cracking

Heat shock(200℃/4hrs)

ASTM D2671

No drips, no flow, no cracks

Water absorption(23℃/24hrs)

ASTM D2671

≤1.0%

Withstand voltage

ASTM D2671

AC2500V×60S,No breakdown

Dielectric strength

ASTM D2671

≥19.7kV/mm

Volume resistivity

ASTM D2671

≥1.0×1014Ω·cm

Flame retardant

ASTM D2671 Method B

Self-extinguishing within 60s after leaving the fire

Copper corrosion

ASTM D2671

No corrosion

Printing performance

SAE AS5942

50 erasers, the logo is identifiable

MIL-STD-202

Wipe back and forth 30 times, the logo is identifiable

Liquid resistance(23℃/24hrs)

SAE AS5942

Recognizable printing logo



INSULATE, SEAL, CONNECT

Heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wires, connections, joints and terminals in electrical work.It is widely applied in the field of electronics,telecommunication,power energy,automobile and so on.
