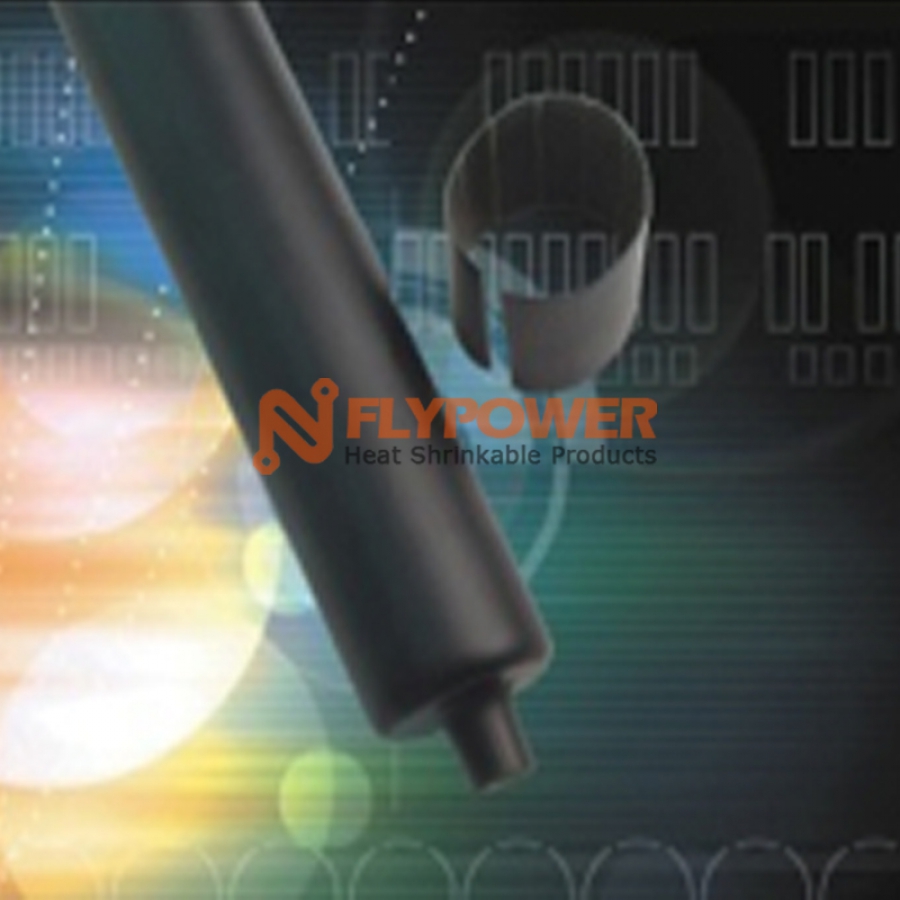

MEDIUM WALL ADHESIVE-LINED POLYOLEFIN TUBING FOR CATV NETWORK BH-STV
- Applications: Medium wall adhesive-lined polyolefin tubing for catv network specially for Protecting of splices and connectors in CATV industry
- Characteristics: BH-STV is adhesive lined heat shrinkable tubing.The heat shrinkable jacket provide effective mechanical protection and hot melt adhesive sealing against water and moisture
- Operating temperature range: Minimum fully recovery temperature: 120℃
- Approvals / Specifications: RoHS
- Colors: Black
| Model Number | As supplied (mm) | After recovered (mm) | Standard length(mm) | |
| Inside diameter(min.) | Inside diameter(Max.) | Wall thickness(Nom.) | ||
| BH-STV 0400(10/3.8) | 10 | 3.8 | 2 | 1220 |
| BH-STV 0750(19/5.6) | 19 | 5.6 | 2 | 1220 |
| BH-STV 1100(28/9) | 28 | 9 | 2 | 1220 |
| BH-STV 1300(33/10) | 33 | 10 | 2 | 1220 |
| BH-STV 1500(38/12) | 38.1 | 12 | 2 | 1220 |
| BH-STV 1700(45/13) | 45 | 13 | 2 | 1220 |
| BH-STV 2050(55/19) | 55 | 19 | 2 | 1220 |
| BH-STV 2750(70/25) | 70 | 25 | 2 | 1220 |
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55 to +110℃ |
|
Tensile strength |
ASTM D 2671 |
>15MPa |
|
Elongation at break |
ASTM D 2671 |
>600% |
|
Longitudinal Shrinkage |
UL 224 |
0 to -10% |
|
Eccentricty |
ASTM D 2671 |
<30% |
|
Elongation at break after aging |
ASTM D 2671/150℃,168hrs. |
>400% |
|
Dielectric strength |
IEC 243 |
≥20KV/mm |
|
Volume resistance |
IEC 93 |
>1014Ω.cm |
|
Copper stability |
ASTM D 2671 |
Pass |
|
Resistance to stress cracking(50℃) |
ASTM D 1693 |
No cracking |
|
Cold bend test(-55℃/4hrs) |
ASTM D 2671 |
No cracking |
|
Thermoplastic Adhesive for BH-STV |
||
|
Water absorption |
ISO 62 |
<0.1% |
|
Softening point |
ASTM D E28 |
85℃ |
|
Peel strength (PE) |
ASTM D 1000 |
110 N/25mm |
|
Copper stability |
ASTM D 2671 |
Non-corrosive |
|
Resistance to fungus and decay |
ISO 846 |
Pass |
