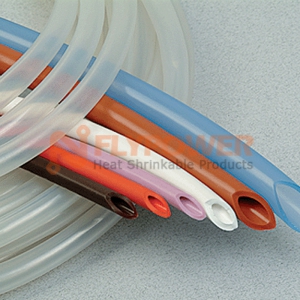

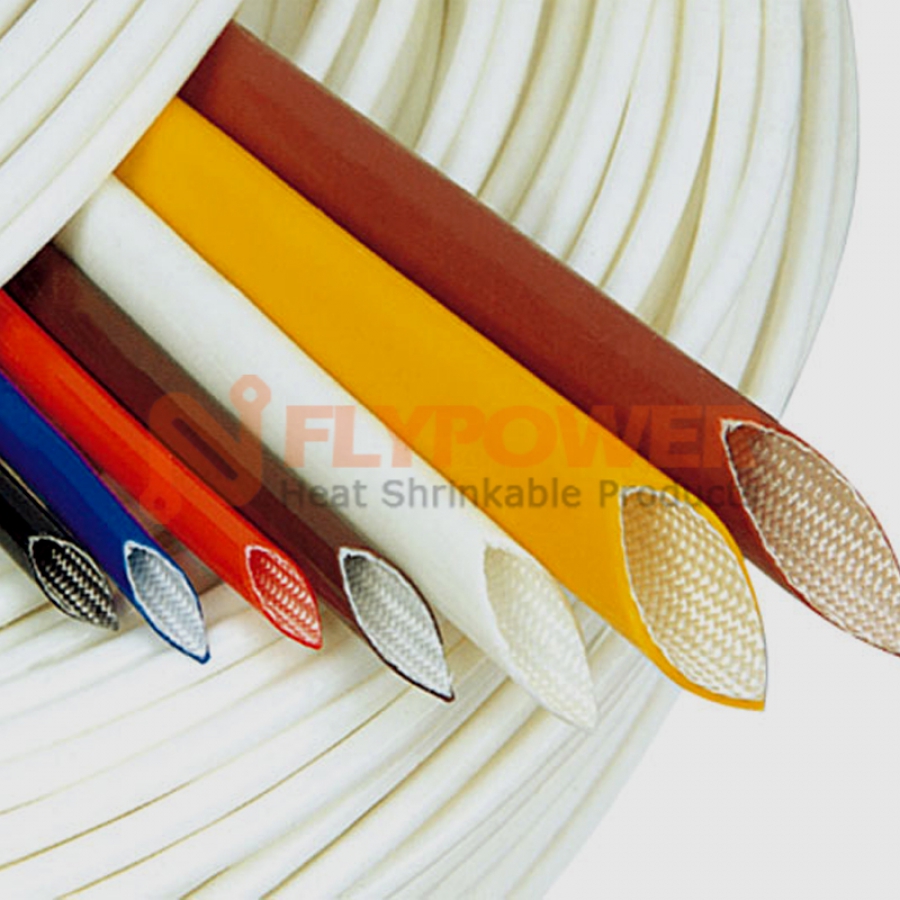

silicon rubber and fiberglass braided tubing BH-SRT
- Applications: BH-SRT silicon rubber and fiberglass braided tubing general Insulating protection for various household appliances, light fitting, machines , electronic instruments, etc.
-
Characteristics: Inner fiberglass outside braided silicone rubber
(SRT-N);
Inner silicone rubber outside fiberglass braided(SRT-W);
Good flexibility, arc resistance, corona-resistant. - Operating temperature range: -60°C～ +200°C
- Approvals / Specifications: RoHS
- Colors: Transparent, Other colors available on request
BH-SRT-N
I.D (mm)
I.D tolerance (mm)
Average Wall Thickness (mm)
Package
1500V, 2500V
4000V
7000V
(M/Spool)
0.5
0.5 ± 0.20
0.20 ± 0.05
0.40 ± 0.05
0.45 ± 0.05
100
1.0
1.0 ± 0.20
0.20 ± 0.05
0.40 ± 0.05
0.45 ± 0.05
100
1.5
1.5 ± 0.20
0.20 ± 0.05
0.40 ± 0.05
0.45 ± 0.05
100
2.0
2.0 ± 0.20
0.20 ± 0.05
0.40 ± 0.05
0.45 ± 0.05
100
2.5
2.5 ± 0.20
0.20 ± 0.05
0.40 ± 0.05
0.50 ± 0.05
100
3.0
3.0 ± 0.25
0.23 ± 0.05
0.40 ± 0.05
0.50 ± 0.05
100
3.5
3.5 ± 0.25
0.23 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
100
4.0
4.0 ± 0.25
0.23 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
100
4.5
4.5 ± 0.25
0.23 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
100
5.0
5.0 ± 0.35
0.30 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
100
6.0
6.0 ± 0.35
0.30 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
100
7.0
7.0 ± 0.50
0.35 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
50
8.0
8.0 ± 0.50
0.35 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
50
9.0
9.0 ± 0.50
0.35 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
50
10.0
10.0 ± 0.70
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
50
12.0
12.0 ± 0.70
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
13.0
13.0 ± 0.70
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
14.0
14.0 ± 0.70
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
15.0
15.0 ± 0.80
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
16.0
16.0 ± 0.80
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
17.0
17.0 ± 0.80
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
18.0
18.0 ± 0.80
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
19.0
19.0 ± 0.80
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
20.0
20.0 ± 0.80
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
30
BH-SRT-W
I.D (mm)
I.D. tolerance (mm)
Average Wall Thickness (mm)
Package
1500V, 2500V
4000V
7000V
(M/Spool)
1.0
1.0 ± 0.15
0.20 ± 0.05
0.40 ± 0.05
0.45 ± 0.05
100
2.0
2.0 ± 0.15
0.20 ± 0.05
0.40 ± 0.05
0.45 ± 0.05
100
3.0
3.0 ± 0.15
0.23 ± 0.05
0.40 ± 0.05
0.50 ± 0.05
100
4.0
4.0 ± 0.15
0.23 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
100
5.0
5.0 ± 0.20
0.30 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
100
6.0
6.0 ± 0.20
0.30 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
100
7.0
7.0 ± 0.20
0.35 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
50
8.0
8.0 ± 0.25
0.35 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
50
9.0
9.0 ± 0.25
0.35 ± 0.05
0.50 ± 0.05
0.60 ± 0.05
50
10.0
10.0 ± 0.25
0.43 ± 0.05
0.60 ± 0.05
0.60 ± 0.05
50
Property
Test Method
Standard required
Dielectric strength (kV/mm)
IEC243
≥18
Volume resistance ( Ω. Cm)
IEC93
≥1X1014
Tensile strength (Mpa)
ASTM D412
≥4 Mpa
Elongation
ASTM D412
≥201
Flammablility (White color only)
ISO 1210
FV-1
