ULTRA THIN WALL FLEXIBLE ENVIRONMENT FRIENDLY FLAME RETARDANT POLYOLEFIN HEAT SHRINK TUBING SHRINK RATIO 2:1 BH-2(CB)

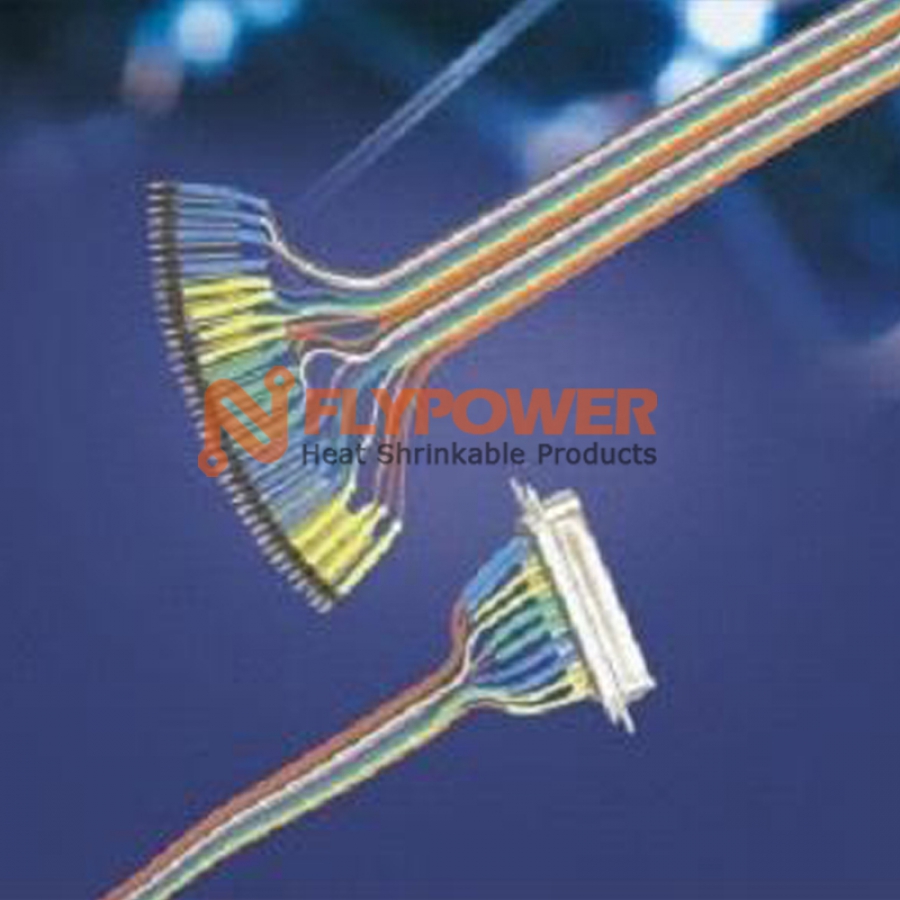

- Applications: used where rapid shrinking and space saving is important
- Characteristics: Low shrink temperature further reduces installation time and risk of damage to temperature-sensitive components
-
Operating temperature range: Minimum shrink temperature: 70℃
Minimum fully recovery temperature: 100℃ - Approvals / Specifications: Meet: UL 224 ,125 VW-1 300V RoHS, Sony-SS-00259
- Colors: Black, Other colors available on request
|
Size （mm） |
As supplied（mm） |
After recovered（mm） |
Packing |
Application Cable |
||
|
ID |
Thickness |
ID |
Thickness |
Meters/Spool |
（mm) |
|
|
Φ 0.6CB |
0.90±0.2 |
0.13±0.05 |
≤0.40 |
0.20±0.10 |
200 |
0.40～0.70 |
|
Φ 0.8CB |
1.10±0.2 |
0.13±0.05 |
≤0.50 |
0.20±0.10 |
200 |
0.60～0.80 |
|
Φ 1.0CB |
1.40±0.2 |
0.13±0.05 |
≤0.65 |
0.20±0.10 |
200 |
0.75～0.95 |
|
Φ 1.5CB |
1.90±0.2 |
0.13±0.05 |
≤0.85 |
0.20±0.10 |
200 |
0.95～1.35 |
|
Φ 2.0CB |
2.40±0.2 |
0.13±0.05 |
≤1.00 |
0.22±0.10 |
200 |
1.10～1.75 |
|
Φ 2.5CB |
2.90±0.2 |
0.13±0.05 |
≤1.30 |
0.25±0.10 |
200 |
1.45～2.15 |
|
Φ 3.0CB |
3.40±0.2 |
0.13±0.05 |
≤1.50 |
0.28±0.10 |
200 |
1.65～2.55 |
|
Φ 3.5CB |
3.90±0.2 |
0.13±0.05 |
≤1.80 |
0.28±0.10 |
200 |
2.00～2.95 |
|
Φ 4.0CB |
4.40±0.2 |
0.15±0.05 |
≤2.00 |
0.30±0.10 |
200 |
2.20～3.35 |
|
Φ 4.5CB |
4.90±0.2 |
0.15±0.05 |
≤2.30 |
0.30±0.10 |
100 |
2.55～3.75 |
|
Φ 5.0CB |
5.50±0.2 |
0.15±0.05 |
≤2.5 |
0.32±0.10 |
100 |
2.75～4.20 |
|
Φ 6.0CB |
6.50±0.2 |
0.15±0.05 |
≤3.0 |
0.32±0.10 |
100 |
3.30～5.00 |
|
Φ 7CB |
7.50±0.3 |
0.15±0.05 |
≤3.5 |
0.32±0.10 |
200 |
3.85～5.70 |
|
Φ 8CB |
8.50±0.3 |
0.15±0.05 |
≤4.0 |
0.32±0.10 |
200 |
4.40～6.50 |
|
Φ 9CB |
9.50±0.3 |
0.15±0.05 |
≤4.5 |
0.35±0.10 |
200 |
5.00～7.30 |
|
Φ 10CB |
10.5±0.3 |
0.15±0.05 |
≤5.0 |
0.35±0.10 |
200 |
5.50～8.10 |
|
Φ 11CB |
11.5±0.3 |
0.18±0.05 |
≤5.5 |
0.40±0.10 |
200 |
6.10～8.90 |
|
Φ 12CB |
12.5±0.3 |
0.20±0.05 |
≤6.0 |
0.40±0.10 |
200 |
6.60～9.70 |
|
Φ 13CB |
13.5±0.3 |
0.20±0.05 |
≤6.5 |
0.40±0.10 |
200 |
7.20～10.5 |
|
Φ 14CB |
14.5±0.3 |
0.20±0.05 |
≤7.0 |
0.40±0.10 |
200 |
7.70～11.3 |
|
Φ 15CB |
15.5±0.4 |
0.20±0.05 |
≤7.5 |
0.40±0.10 |
200 |
8.30～12.0 |
|
Φ 16CB |
16.5±0.4 |
0.22±0.05 |
≤8.0 |
0.40±0.10 |
200 |
8.80～12.8 |
|
Φ 17CB |
17.5±0.4 |
0.22±0.05 |
≤8.5 |
0.40±0.10 |
200 |
9.40～13.6 |
|
Φ 18CB |
18.5±0.4 |
0.22±0.05 |
≤9.0 |
0.42±0.10 |
200 |
9.90～14.4 |
|
Φ 20CB |
20.5±0.5 |
0.25±0.05 |
≤10.0 |
0.45±0.10 |
200 |
11.0～16.0 |
|
Φ 22CB |
22.5±0.5 |
0.25±0.05 |
≤11.0 |
0.45±0.10 |
200 |
12.1～17.6 |
|
Φ 25CB |
25.5±0.5 |
0.25±0.05 |
≤12.5 |
0.45±0.10 |
100 |
13.8～20.0 |
Special size, cut pieces are available on request.
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55 to +125℃ |
|
Tensile strength |
ASTM D 2671 |
>14MPa |
|
Elongation at break |
ASTM D 2671 |
>400% |
|
Longitudinal shrinkage |
UL 224 |
0 to -5% |
|
Eccentricity |
ASTM D 2671 |
<30% |
|
Elongation at break after aging |
158℃/168 hrs. |
>300% |
|
Flammability |
VW-1 |
Pass |
|
Dielectric strength |
IEC243 |
>20KV/mm |
|
Volume resistance |
IEC93 |
>1014Ω.cm |
|
Copper stability |
UL 224 |
Pass |
