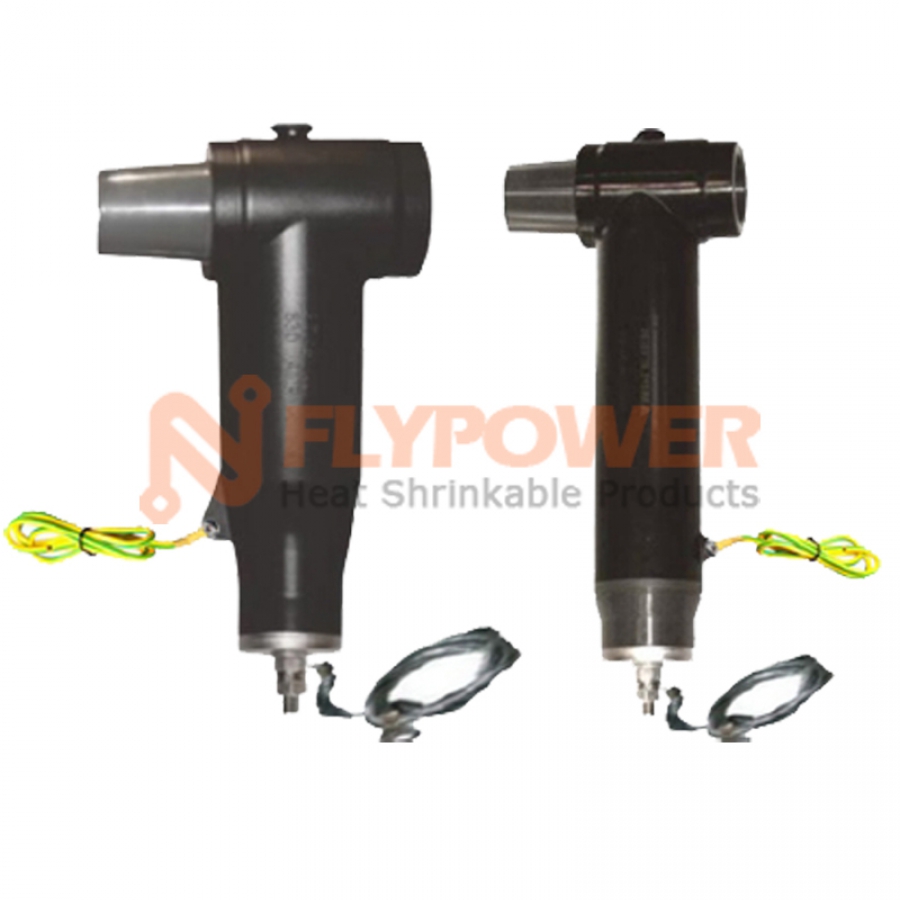

T type connector (rear) with surge arrestor BH-YH5WZ
- Applications: BH-YH5WZ T type connector (rear) with surge arrestor is used for the protection of electric appliance against lighting and over voltage. it is mainly applied for the top connection of RMU and cable branch system.
-
Characteristics: With special designed
explosion preventing release device it can protect the arrestor against explosion
and permanent earthing fault;
Suitable adaptor easy & simple installation;
Compact design to suit various installations;
Combined with insulation, sealing and touchable screened. - Operating temperature range: N/A.
-
Approvals / Specifications: RoHS
Meet: IEC60099-4, GB11032. - Colors: Black
|
Performance |
YH5WZ-17/45（50） |
YH5WZ-26/66 |
|
Voted system voltage |
10kV（r.m.s) |
20kV（r.m.s) |
|
Voted voltage |
17kV |
26kV |
|
Continuous operating voltage |
13.6kV |
20.8kV |
|
Residual voltage at 5kA lighting impulse |
45kV |
66kV |
|
Voltage at 1mA |
≥25kV |
≥37kV |
|
Leakage current at D.C 0.75U1mA |
≤50μA |
≤50μA |
|
2ms rectangular current withstand |
150A |
150A |
|
A.C withstand voltage test for EPDM housing（5min) |
630A |
630A |
