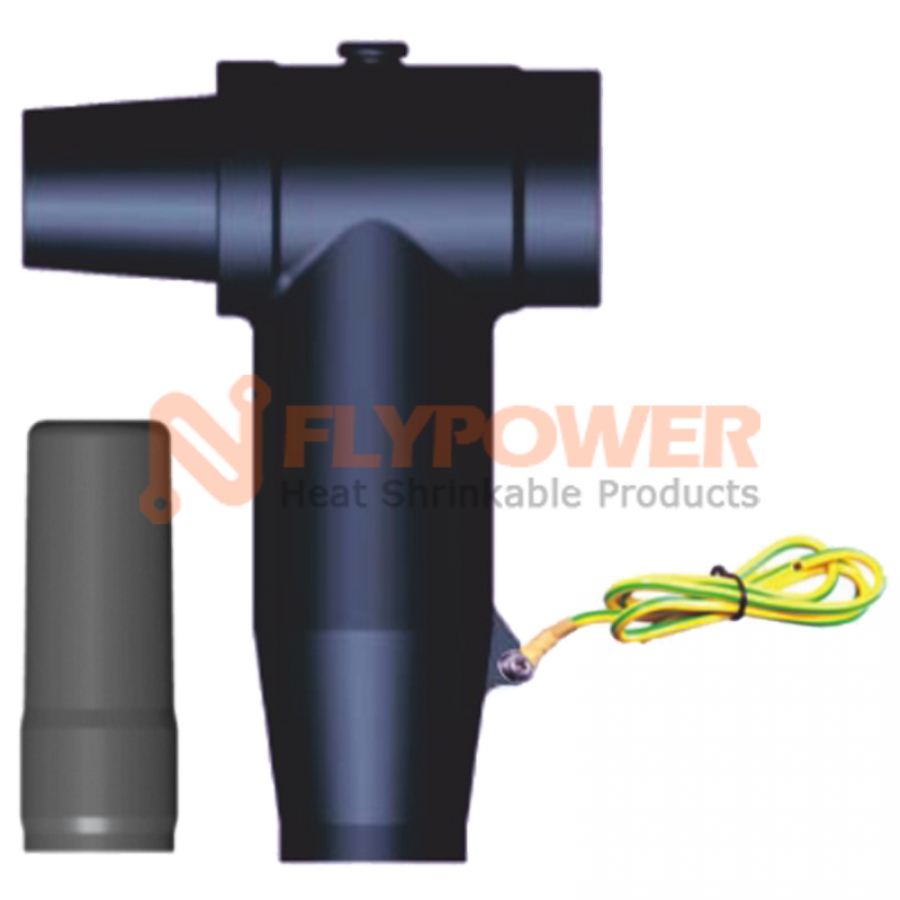

15KV 630A T type separable screened/unscreened connector/rear BH-CTR-M
- Applications: BH-CTR-M 15kV 630A T type separable screened/unscreened connector, made of EPDM elastomer, is used for indoor application, the main body is composed of inner conductive layer, insulating layer and outer conductive layer, suitable for the connection of XLPE cables 8.7/15kV to medium voltage equipment (transformers, switchgears, motors, etc. ) up to 15KV.
-
Characteristics: 100% factory tested before shipment, quality guaranteed;
Compact design and suitable adaptor (stress cone) easy & simple installation;
The stress cone adaptor covers the cable range of 25mm2 -400mm2;
Combined with insulation, sealing and it is touchable in the case of screened type but not suitable for unscreened type, it is untouchable. - Operating temperature range: N/A
- Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
- Colors: Black
Size(mm)
Main insulation diameter (mm)
Cable cross-section(mm2)
Φ 13.5
16-20
25-70
Φ 18
21-25
95-150
Φ 22
26-29
185-240
Φ 27
30-34
300-400

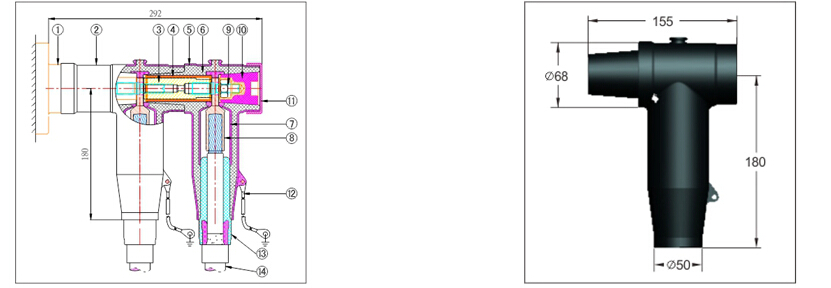

1. Bushing 2. Front connector 3. Conductive connecting rod 4. Aluminium tube
5. Outer screen 6. Insulating layer 7. Inner screen rear plug 8. Compression lug
9. Threaded pin 10. Insulating plug 11. End cap 12. Earthing eye
13. Stress cone adaptor 14. Cable
Main Compounds
1. Rear connector body 2. Stress cone adapter 3. Compression lugs 4. Treaded pin
5. Rear plug 6. Sand paper 7. Cleaning tissue 8. Silicon grease
9. Conductive end cap(Screened type) 10. Installation tools and instruction
Performance
BH-CTR-M-101
Rated voltage
8.7/15（17.5）kV
Max. operating voltage
17.5kV
Rated continuous current
630A
Partial discharge
15kV/≤10pC
A.C withstand voltage
39kV/5min
