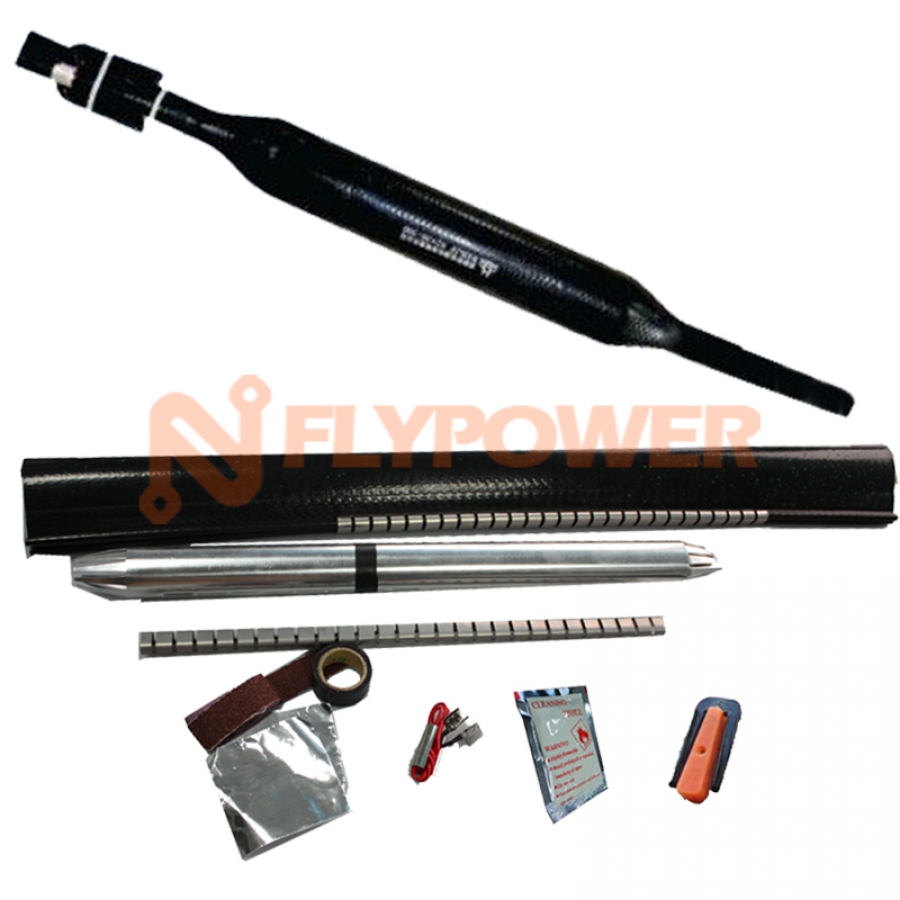

Reinforced heat shrinkable joint closure for unpressurized telecommunication cable BH-RSBJ
- Applications: BH-RSBJ reinforced heat shrinkable joint closure for unpressurized telecommunication cable which is designed to provide tightness and environmental and mechanical protection for splices on telecommunication cables in networks.
-
Characteristics: Of super composite fibre structure and secondary sealing, with excellent
mechanical strength, tear-resistant, shrinkage and resistance to weathering;
The sealing employs high-quality imported Germany Henkel gel;
Offers quick and easy application using an innovative closure mechanism;
The white line on the inner side of the rail bar and heat sensitive paint on the exterior of the product may guide the proper operation. - Operating temperature range: Minimum fully recovery temperature: 120ºC
- Approvals / Specifications: RoHS
- Colors: Black
|
Model |
Splice bundle Dia. Max.(mm) |
Single cable |
Cable cut length(mm) |
Applicable cable pairs |
|
|
Wire Dia.(0.4mm) |
Wire Dia.(0.5mm) |
||||
|
RSBJ(F) 23/12-210 |
23 |
12 |
210 |
5-10 |
5-10 |
|
RSBJ(F) 32/11-200 |
32 |
11 |
200 |
5-10 |
5-10 |
|
RSBJ(F) 32/11-300 |
32 |
11 |
300 |
10-20 |
10-20 |
|
RSBJ(F) 32/11-500 |
32 |
11 |
500 |
10-30 |
10-30 |
|
RSBJ(F) 42/15-200 |
42 |
15 |
200 |
10-20 |
10-20 |
|
RSBJ(F) 42/15-300 |
42 |
15 |
300 |
20-30 |
20-30 |
|
RSBJ(F) 42/15-500 |
42 |
15 |
500 |
50 |
50 |
|
RSBJ(F) 50/18-400 |
50 |
18 |
400 |
50-100 |
50-100 |
|
RSBJ(F) 50/18-500 |
50 |
18 |
500 |
100-150 |
100-150 |
|
RSBJ(F) 62/22-350 |
62 |
22 |
350 |
100-150 |
100-150 |
|
RSBJ(F) 62/22-500 |
62 |
22 |
500 |
200 |
200 |
|
RSBJ(F) 62/22-650 |
62 |
22 |
650 |
250 |
250 |
|
RSBJ(F) 75/25-500 |
75 |
25 |
500 |
200-300 |
200-300 |
|
RSBJ(F) 92/30-350 |
92 |
30 |
350 |
300 |
300 |
|
RSBJ(F) 92/30-500 |
92 |
30 |
500 |
400-500 |
400-500 |
|
RSBJ(F) 122/38-500 |
122 |
38 |
500 |
600-1200 |
600-1200 |
|
RSBJ(F) 122/38-650 |
122 |
38 |
650 |
1000-1200 |
1000-1200 |
|
RSBJ(F) 150/55-500 |
150 |
55 |
500 |
1400-1800 |
1400-1800 |
|
RSBJ(F) 160/55-500 |
160 |
55 |
500 |
1200 |
1200 |
|
RSBJ(F) 160/55-650 |
160 |
55 |
650 |
1400-1800 |
1400-1800 |
|
RSBJ(F) 160/55-720 |
160 |
55 |
720 |
2100-2400 |
2100-2400 |
|
RSBJ(F) 175/60-500 |
175 |
60 |
500 |
2100-2400 |
2100-2400 |
|
RSBJ(F) 200/65-500 |
200 |
65 |
500 |
2400 |
2400 |
|
RSBJ(F) 200/65-650 |
200 |
65 |
650 |
2700-3200 |
2700-3200 |
|
RSBJ(F) 200/65-720 |
200 |
65 |
720 |
3600 |
3600 |
1. Special size, cut pieces are available on request;
2. Accessories: Heat shrinkable sleeve, metal canister, stainless steel channel clip, Self adhering aluminum closing strip, branching clips, abrasive strip, cleaning tissue, shielding wire, branch-off kit(RSBJ-F), PVC adhesive tape, aluminum foil, Installation procedure;
3. RSBJ is the in line type which with L type shielding wire, RSBJ-F is the branching type which with Y type shielding wire and a branch-off kit;
4. FLYPOWER model RSBJ is equated with Raychem XAGA 500/530/550.
|
Property |
Test Method |
Typical Data |
|
Tensile Strength |
ISO 37 |
17 MPa min. |
|
Ultimate Elongation |
ISO 37 |
350% min. |
|
Density |
ISO 1183 Method A |
1.0 – 1.2 g/cm3 |
|
Hardness |
ISO 868 |
50 – 70 D |
|
Accelerated Aging |
7 days at 150℃±2℃ ISO 188 |
|
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Thermal Endurance |
IEC 60216 |
120℃ |
|
Low Temperature Flexibility |
4 hours at –40℃±3℃ |
No cracking |
|
ASTM D2671 Procedure C |
||
|
Dielectric Strength |
IEC 60243 |
1 mm 180kV/cm |
|
min. 3.5 mm |
||
|
120kV/cm min. |
||
|
Volume Resistivity |
IEC 60093 |
1 x 1012Ω cm min. |
|
Dielectric Constant |
IEC 60250 |
5 max. |
|
Water Absorption |
14 days at 23℃±2℃ ISO 62 Method |
0.5% max. |
|
Resistance to Liquids |
7 days in transformer oil |
|
|
at 23℃±2℃(VDE 0370) ISO 1817 |
||
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Resistance to Fungi |
ASTM G21 |
Pass Rating 1 |
