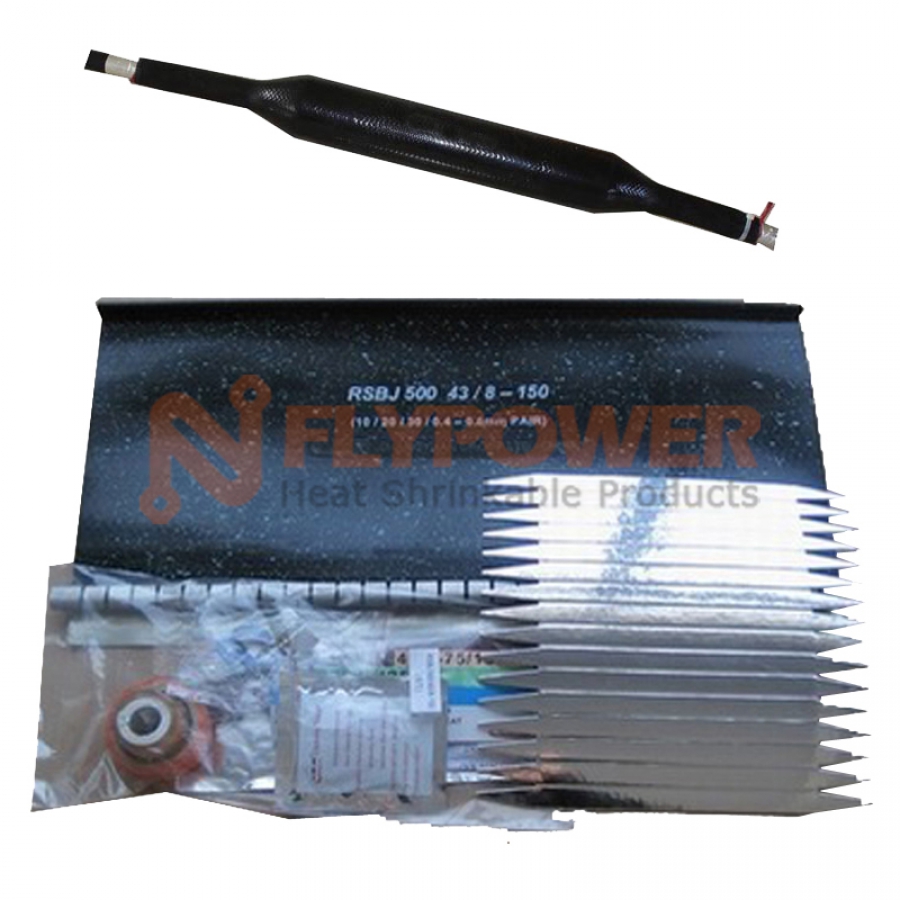

Reinforced heat shrinkable joint closure for unpressurized cooper networks BH-RSBJ 500/550/530
- Applications: BH-RSBJ 500/550/530 reinforced heat shrinkable joint closure for unpressurized copper networks which is designed to provide tightness and environmental and mechanical protection for splices on telecommunication cables in network.The reinforced closures have been developed to meet stringent demands in cable networks. For this Purpose, a PE with fibre has been integrated in the heat-shrinkable sleeve. This increase the split resistance during shrinking and its mechanical strength. The inner side of the sleeve is coated with hot-melt adhesive which provides a watertight and secure bonding to plastic and metal-sheathed cable.
-
Characteristics: Of super composite fibre structure and secondary sealing, with excellent
mechanical strength, tear-resistant, shrinkage and resistance to weathering;
The sealing employs high-quality imported Germany Henkel gel;
Offers quick and easy application using an innovative closure mechanism;
The white line on the inner side of the rail bar and heat sensitive paint on the exterior of the product may guide the proper operation. - Operating temperature range: Minimum fully recovery temperature: 120ºC
- Approvals / Specifications: RoHS
- Colors: Black
| Model |
Max. Splice bundle Dia.(D) |
Max. Single cable Dia.(d) |
Max. Joint gap(L |
|
BH-RSBJ 500 series |
|||
| RSBJ 500 43/8-150 | 43 | 8 | 150 |
| RSBJ 500 43/8-300 | 43 | 8 | 300 |
| RSBJ 500 55/12-150 | 55 | 12 | 150 |
| RSBJ 500 55/12-300 | 55 | 12 | 300 |
| RSBJ 500 75/15-240 | 75 | 15 | 240 |
| RSBJ 500 75/15-300 | 75 | 15 | 300 |
| RSBJ 500 75/15-400 | 75 | 15 | 400 |
| RSBJ 500 75/15-500 | 75 | 15 | 500 |
| RSBJ 500 100/25-260 | 100 | 25 | 260 |
| RSBJ 500 100/25-460 | 100 | 25 | 460 |
| RSBJ 500 100/25-500 | 100 | 25 | 500 |
| RSBJ 500 125/30-265 | 125 | 20 | 265 |
| RSBJ 500 125/30-460 | 125 | 30 | 46 |
|
BH-RSBJ 550 series |
|||
| RSBJ 550 43/8-150 | 43 | 8 | 150 |
| RSBJ 550 43/8-200 | 43 | 8 | 200 |
| RSBJ 550 43/8-350 | 43 | 8 | 350 |
| RSBJ 550 43/8-500 | 43 | 8 | 500 |
| RSBJ 550 75/15-250 | 75 | 15 | 250 |
| RSBJ 550 75/15-500 | 75 | 15 | 500 |
| RSBJ 550 92/25-300 | 92 | 25 | 300 |
| RSBJ 550 92/25-500 | 92 | 25 | 500 |
| RSBJ 550 92/25-650 | 92 | 25 | 650 |
| RSBJ 550 122/30-300 | 122 | 30 | 300 |
| RSBJ 550 122/30-500 | 122 | 30 | 500 |
| RSBJ 550 122/30-650 | 122 | 30 | 650 |
| RSBJ 550 160/42-500 | 160 | 42 | 500 |
| RSBJ 550 160/42-720 | 160 | 42 | 720 |
| RSBJ 550 200/50-500 | 200 | 55 | 500 |
| RSBJ 550 200/50-720 | 200 | 55 | 720 |
|
BH-RSBJ 530 series |
|||
| RSBJ 530 43/8-150 | 43 | 8 | 150 |
| RSBJ 530 43/8-300 | 43 | 8 | 300 |
| RSBJ 530 55/12-150 | 55 | 12 | 150 |
| RSBJ 530 55/12-300 | 55 | 12 | 300 |
| RSBJ 530 75/15-240 | 75 | 15 | 240 |
| RSBJ 530 75/15-300 | 75 | 15 | 300 |
| RSBJ 530 75/15-400 | 75 | 15 | 400 |
| RSBJ 530 75/15-450 | 75 | 15 | 450 |
| RSBJ 530 100/25-250 | 100 | 25 | 250 |
| RSBJ 530 100/25-450 | 100 | 25 | 450 |
| RSBJ 530 100/25-600 | 100 | 25 | 600 |
| RSBJ 530 125/30-250 | 125 | 20 | 250 |
| RSBJ 530 125/30-450 | 125 | 30 | 450 |
Remarks:
1. Special size, cut pieces are available on request;
2. Accessories: Heat shrinkable sleeve, Mental canister (BH-BSBJ 550),Plastic liner（BH-BSBJ 530),cardboard liner (BH-BSBJ 500), stainless steel channel clip, Self adhering aluminum closing strip, branching clips, abrasive strip, cleaning tissue, shielding wire, branch-off kit, PVC adhesive tape, aluminum foil, Installation procedure;
3. FLYPOWER model RSBJ 500/550/530 is equated with Raychem XAGA 500/550/530.
|
Property |
Test Method |
Typical Data |
|
Tensile Strength |
ISO 37 |
17 MPa min. |
|
Ultimate Elongation |
ISO 37 |
350% min. |
|
Density |
ISO 1183 Method A |
1.0 – 1.2 g/cm3 |
|
Hardness |
ISO 868 |
50 – 70 D |
|
Accelerated Aging |
7 days at 150℃±2℃ ISO 188 |
|
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Thermal Endurance |
IEC 60216 |
120℃ |
|
Low Temperature Flexibility |
4 hours at –40℃±3℃ |
No cracking |
|
ASTM D2671 Procedure C |
||
|
Dielectric Strength |
IEC 60243 |
1 mm 180kV/cm |
|
min. 3.5 mm |
||
|
120kV/cm min. |
||
|
Volume Resistivity |
IEC 60093 |
1 x 1012Ω cm min. |
|
Dielectric Constant |
IEC 60250 |
5 max. |
|
Water Absorption |
14 days at 23℃±2℃ ISO 62 Method |
0.5% max. |
|
Resistance to Liquids |
7 days in transformer oil |
|
|
at 23℃±2℃(VDE 0370) ISO 1817 |
||
|
Tensile Strength ISO 37 |
14 MPa min. |
|
|
Ultimate Elongation ISO 37 |
300% min. |
|
|
Resistance to Fungi |
ASTM G21 |
Pass Rating 1 |
