cold shrink breakout BH-CSB

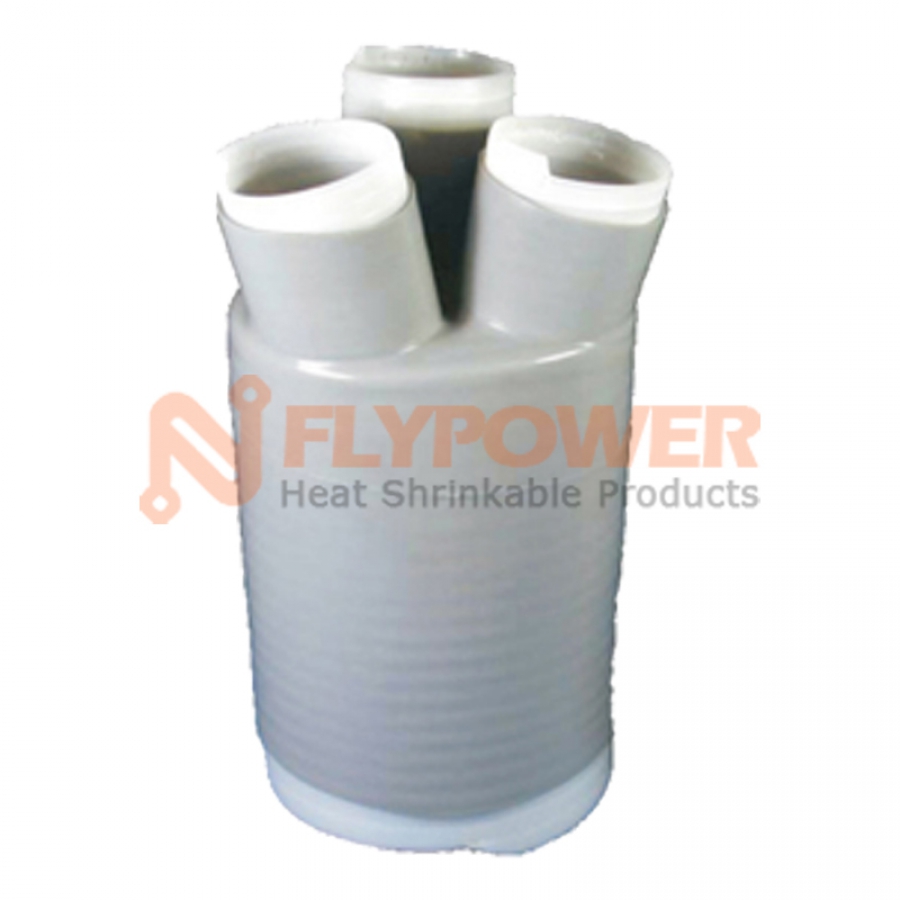

Cold shrink breakout
Download attachments: English BH-CSB 中文 BH-CSB
  • Applications: BH-CSB cold shrink breakout which Made of liquid silicone rubber.Simple and fast installation meeting a variety of configuration requirements, Providing sealing protection over multi-core cable crutch, including 3-, 4-, 5-, 6-core breakouts.
  • Characteristics: Simple and fast installation, no tools required.
    Sealing tight, high rebound even after prolonged years of aging and exposure.
    No mastic or tape required. No torches or heat required.
    Resists fungus, water, acids, alkalis and ozone.
    Easily removed, no training required for installation.
  • Operating temperature range: N/A.
  • Approvals / Specifications: RoHS
  • Colors: Gray





Model No.

Cores

ØC (As Supplied/
After Recovery)/mm

Application
Range/mm

ØF (As Supplied/
After Recovery)/mm

Application
Range/mm

LF/mm

Lc/mm

BH-CSB-3-1

3

80/ 36

Ø38-Ø67

32/ 14

Ø16- Ø26

45

130

BH-CSB-3-2

88/ 43

Ø45-Ø78

35/ 16

Ø18- Ø29

45

135

BH-CSB-3-3

104/ 50

Ø52-Ø94

40/ 20

Ø22- Ø34

45

150

BH-CSB-3-4

120/ 59

Ø61-Ø110

47/ 23

Ø25- Ø41

45

165

BH-CSB-3-5

140/ 72

Ø74-Ø130

60/ 28

Ø30- Ø54

55

180

BH-CSB-3-5A1

150/ 72

Ø74-Ø140

65/ 28

Ø30- Ø59

55

180

BH-CSB- 3-5A2

165/ 72

Ø74-Ø155

70/ 28

Ø30- Ø64

55

180

BH-CSB-4-1

4

65/20

Ø22-Ø55

20/6

Ø8-Ø14

35

126

BH-CSB-4-2

80/28

Ø30-Ø70

25/8

Ø10-Ø19

40

137

BH-CSB-4-3

88/40

Ø42-Ø78

32/10

Ø12-Ø26

40

145

BH-CSB-4-4

120/45

Ø47-Ø110

47/15

Ø17-Ø41

40

145

BH-CSB-5-1

5

80/26

Ø28-Ø70

20/6

Ø8-Ø14

40

123

BH-CSB-5-2

88/36

Ø38-Ø78

25/8

Ø10-Ø19

40

134

BH-CSB-5-3

110/47

Ø49-Ø100

35/11

Ø13-Ø29

45

138

BH-CSB-5-3A

120/47

Ø49-Ø110

40/11

Ø13-Ø36

45

138

BH-CSB-6-1

6

104/35

Ø37-Ø94

32/10

Ø12- Ø26

60

135
