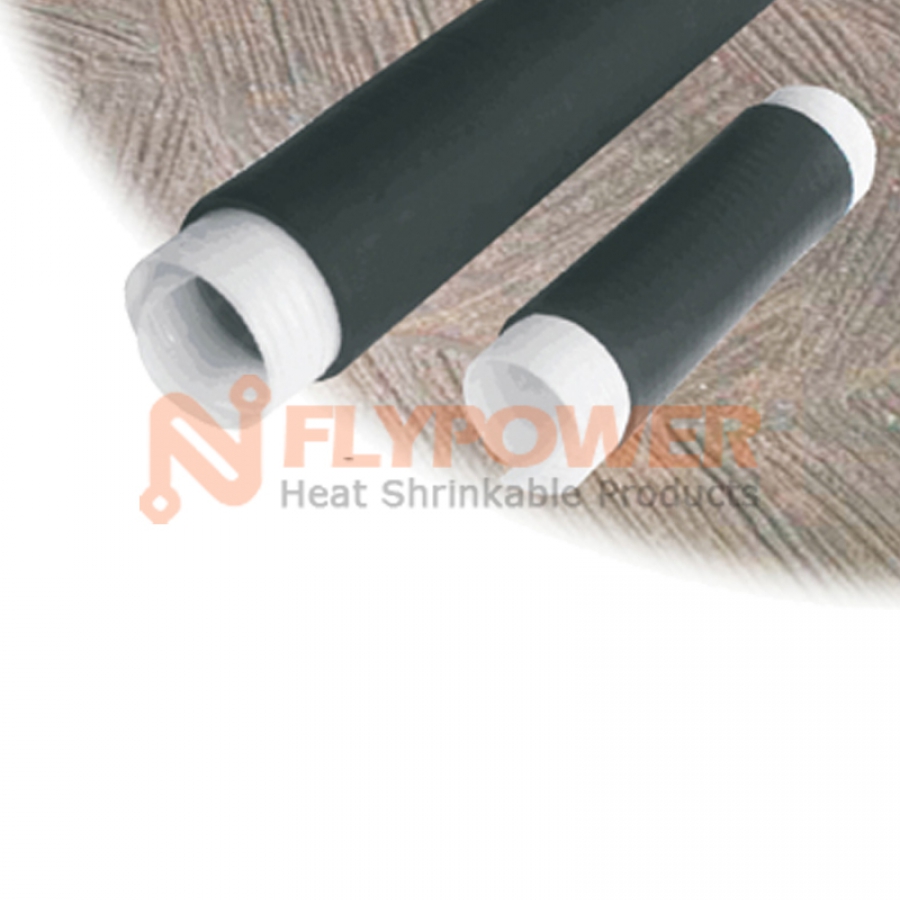

EPDM cold shrink tube BH-EPDM

EPDM cold shrink tubing
Download attachments: English BH-EPDM 中文 BH-EPDM
  • Applications: BH-EPDM cold shrink tube which made of EPDM rubber Offering good mechanical,insulation and sealing protection. Accommodating a wide range of cable sizes for indoor or outdoor applications Simple and fast installation.
  • Characteristics: Simple and fast installation, no tools required.
    Sealing tight, high rebound even after prolonged years of aging and exposure.
    No mastic or tape required. No torches or heat required.
    Resists fungus, water, acids, alkalis and ozone.
    Easily removed, no training required for installation.
  • Operating temperature range: N/A.
  • Approvals / Specifications: RoHS
  • Colors: Black



Model No.

ID as supplied
(Ø mm)

Lenghth
(mm)

Apllication OD Rang
(Ømm)

BH-EPDM 152/20

20

152

8-15

BH-EPDM 178/20

20

178

8-15

BH-EPDM 178/25

25

178

10-20

BH-EPDM 203/25

25

203

10-20

BH-EPDM 280/25

25

280

10-20

BH-EPDM 305/25

25

305

10-20

BH-EPDM 254/32

32

254

12-26

BH-EPDM 280/32

32

280

12-26

BH-EPDM 305/32

32

305

12-26

BH-EPDM 152/35

35

152

12-26

BH-EPDM 203/35

35

203

12-26

BH-EPDM 230/35

35

230

12-26

BH-EPDM 280/35

35

280

12-26

BH-EPDM 152/40

40

152

17.5-33

BH-EPDM 203/40

40

203

17.5-33

BH-EPDM 254/40

40

254

17.5-33

BH-EPDM 305/40

40

305

17.5-33

BH-EPDM 457/40

40

457

17.5-33

BH-EPDM 152/53

53

152

25-46

BH-EPDM 178/53

53

178

25-46

BH-EPDM 203/53

53

203

25-46

BH-EPDM 254/53

53

254

25-46

BH-EPDM 305/53

53

305

25-46

BH-EPDM 457/53

53

457

25-46

BH-EPDM 152/70

70

152

32-63

BH-EPDM 230/70

70

230

32-63

BH-EPDM 305/70

70

305

32-63

BH-EPDM 355/70

70

355

32-63

BH-EPDM 457/70

70

457

32-63

BH-EPDM 230/104

104

230

43-94

Property

Test Method

 Standard Value

300% Modulus

ASTM D-412-75

4.2MPa

Ultimate Tensile

ASTM D-412-75

10.05MPa

Ultimate Elongation

ASTM D-412-75

600%

Tear strength

ASTM D-624C-73

28.3KN/m

Fungus Resistance

ASTM G-21

28 days exposure No Growth

Moisture Absorption 7 days@ 90℃in H2O



3.0% wt. Gain

INSULATE, SEAL, CONNECT

Heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wires, connections, joints and terminals in electrical work.It is widely applied in the field of electronics,telecommunication,power energy,automobile and so on.
