cold shrink termination kit BH-CTK

Cold shrink termination
Download attachments: English BH-CTK 中文 BH-CTK

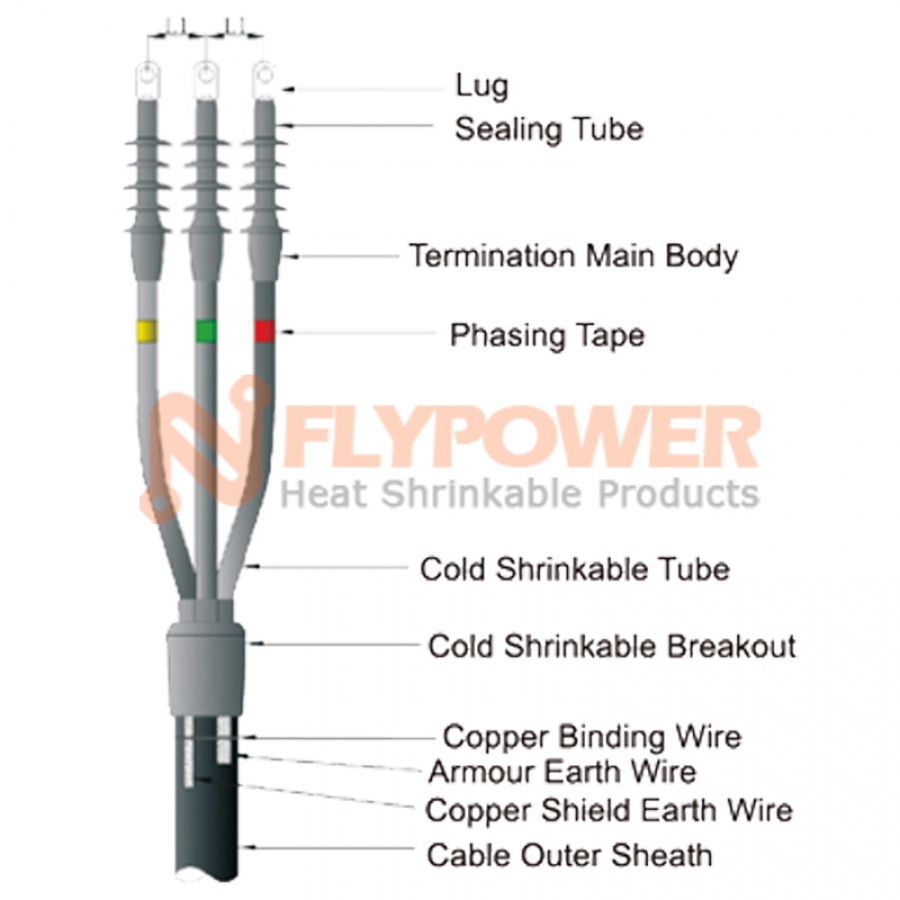

  • Applications: BH-CTK cold shrink termination kit is available for indoor & outdoor applications for single core and 3-core cables up to 36kV. The termination is one-piece design manufactured from high quality liquid silicone rubber. The cold shrink termination is factory expanded on a removable inner-supporting core. Once the termination is positioned onto the cable core, the supporting core is unwound and removed,and the live-memory action of the material shrinks the termination into place.The termination kit includes all the necessary components to make the installation.
  • Characteristics: Simple and fast installation, no heat or special tools required.
    One-piece design with integrated stress control.
    Offering protection against aging, tracking and erosion.
    High resistance to fungus, acid, alkalis and ozone.
    Accommodating a wide range of cable sizes.
  • Operating temperature range: N/A.
  • Approvals / Specifications: RoHS
  • Colors: Gray

Voltage U0 /U (Um)

Cores

Cable Cross Section /mm2

Diameter over

insulation/mm

Product No.

18/30kV (36)

1, 3 Indoor

35-50

22-27

18/30kV-BH-CTI-1/1(3/1)

70-185

27.5-35

18/30kV-BH-CTI-1/2(3/2)

240-500

35.5-46

18/30kV-BH-CTI-1/3(3/3)

630

46.5-55

18/30kV-BH-CTI-1/4(3/4)

1, 3 Outdoor

35-50

22-27

18/30kV-BH-CTO-1/1(3/1)

70-185

27.5-35

18/30kV-BH-CTO-1/2(3/2)

240-500

35.5-46

18/30kV-BH-CTO-1/3(3/3)

630

46.5-55

18/30kV-BH-CTO-1/4(3/4)

12/20kV (24)

1, 3 Indoor

25-50

18-21.5

12/20kV-BH-CTI-1/1(3/1)

70-120

21-26.5

12/20kV-BH-CTI-1/2(3/2)

150-240

25.5-32

12/20kV-BH-CTI-1/3(3/3)

300-400

32.5-37

12/20kV-BH-CTI-1/4(3/4)

500-630

39-44.3

12/20kV-BH-CTI-1/5(3/5)

1, 3 Outdoor

25-50

16-22

12/20kV-BH-CTO-1/1(3/1)

70-120

20-27

12/20kV-BH-CTO-1/2(3/2)

150-240

24-32

12/20kV-BH-CTO-1/3(3/3)

300-400

30-37

12/20kV-BH-CTO-1/4(3/4)

500-630

39-44.3

12/20kV-BH-CTO-1/5(3/5)

8.7/15kV (17.5)

1, 3 Indoor

25-50

16-19.5

8.7/15kV-BH-CTI- 1/1(3/1)

70-120

19-24.5

8.7/15kV-BH-CTI- 1/2(3/2)

150-240

23-30

8.7/15kV-BH-CTI- 1/3(3/3)

300-400

30.5-35

8.7/15kV-BH-CTI-1/4(3/4)

500-630

37-42.3

8.7/15kV-BH-CTI-1/5(3/5)

1, 3 Outdoor

25-50

16-19.5

8.7/15kV-BH-CTO- 1/1(3/1)

70-120

19-24.5

8.7/15kV-BH-CTO- 1/2(3/2)

150-240

23-30

8.7/15kV-BH-CTO- 1/3(3/3)

300-400

30.5-35

8.7/15kV-BH-CTO-1/4(3/4)

500-630

37-42.3

8.7/15kV-BH-CTO-1/5(3/5)

6/10kV (12)

1, 3 Indoor

50-70

16-19.5

6/10kV-BH-CTI- 1/1(3/1)

95-150

19-24.5

6/10kV-BH-CTI- 1/2(3/2)

185-300

23.5-30

6/10kV-BH-CTI-1/3(3/3)

400-500

30.5-35

6/10kV-BH-CTI-1/4(3/4)

630

37-42.3

6/10kV-BH-CTI-1/5(3/5)

1, 3 Outdoor

50-70

16-19.5

6/10kV-BH-CTO- 1/1(3/1)

95-150

19-24.5

6/10kV-BH-CTO- 1/2(3/2)

185-300

23.5-30

6/10kV-BH-CTO- 1/3(3/3)

400-500

30.5-35

6/10kV-BH-CTO- 1/4(3/4)

630

37-42.3

6/10kV-BH-CTO- 1/5(3/5)

0.6/1kV (1.2)

1,3,4,5 Indoor or
 outdoor

25-50

-

0.6/1k-BH-CT-1(3,4,5)/1

70-120

0.6/1k-BH-CT-1(3,4,5)/2

150-240

0.6/1kV-BH-CT-1(3,4,5)/3

300-400

0.6/1kV-BH-CT-1(3,4,5)/4
