BH-HMS Shrink ratio-2X
|
Part Number
|
As Supplied (mm)
|
After Recovery(mm)
|
|
ID(D)
|

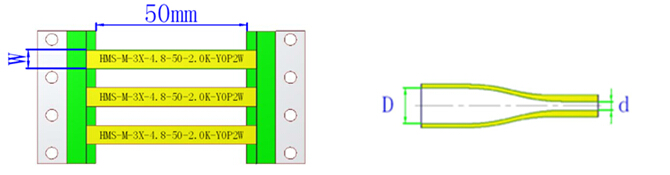

Flatten Width(w)
|
Double Wall Thickness
|
ID(d)
|
Single Wall Thickness
|
|

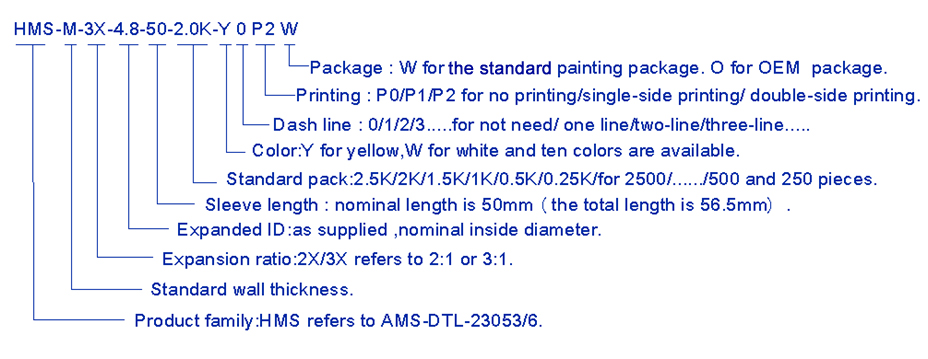

BH-HMS-M-2X-1.6-50-2.5K-Y0P0O
|
2.00±0.20
|
3.7±0.3
|
0.48±0.10
|
≤0.79
|
0.45±0.06
|
|
BH-HMS-M-2X-2.4-50-2.5K-Y0P0O
|
2.79±0.20
|
5.0±0.3
|
0.48±0.10
|
≤1.18
|
0.49±0.06
|
|
BH-HMS-M-2X-3.2-50-2.0K-Y0P0O
|
3.64±0.23
|
6.3±0.4
|
0.48±0.10
|
≤1.59
|
0.51±0.06
|
|
BH-HMS-M-2X-4.8-50-2.0K-Y0P0O
|
5.26±0.25
|
8.9±0.4
|
0.49±0.10
|
≤2.36
|
0.54±0.06
|
|
BH-HMS-M-2X-6.4-50-1.5K-Y0P0O
|
6.92±0.28
|
11.5±0.4
|
0.50±0.10
|
≤3.18
|
0.56±0.06
|
|
BH-HMS-M-2X-9.5-50-1.0K-Y0P0O
|
10.2±0.32
|
16.7±0.5
|
0.51±0.11
|
≤4.75
|
0.59±0.06
|
|
BH-HMS-M-2X-12.7-50-1.0K-Y0P0O
|
13.5±0.36
|
21.8±0.6
|
0.52±0.11
|
≤6.35
|
0.60±0.07
|
|
BH-HMS-M-2X-19-50-0.5K-Y0P0O
|
20.1±0.40
|
32.2±0.6
|
0.53±0.11
|
≤9.53
|
0.62±0.07
|
|
BH-HMS-M-2X-25-50-0.5K-Y0P0O
|
26.7±0.45
|
42.5±0.7
|
0.55±0.12
|
≤12.7
|
0.63±0.07
|
|
BH-HMS-M-2X-38-50-0.5K-Y0P0O
|
39.8±0.51
|
63.2±0.8
|
0.57±0.12
|
≤19.1
|
0.64±0.07
|
|
BH-HMS-M-2X-51-50-0.25K-Y0P0O
|
53.0±0.56
|
83.9±0.9
|
0.58±0.13
|
≤25.4
|
0.64±0.08
|
|
BH-HMS-M-2X-76-50-0.25K-Y0P0O
|
79.4±0.56
|
125.3±1.0
|
0.59±0.13
|
≤38.1
|
0.64±0.09
|
BH-HMS Shrink ratio-3X
|
Part Number
|
As Supplied (mm)
|
After Recovery(mm)
|
|
ID(D)
|
Flatten Width(w)
|
Double Wall Thickness
|
ID(d)
|
Single Wall Thickness
|
|
BH-HMS-M-3X-1.6-50-2.5K-Y0P0O
|
2.00±0.20
|
3.7±0.3
|
0.47±0.10
|
≤0.53
|
0.52±0.06
|
|
BH-HMS-M-3X-2.4-50-2.5K-Y0P0O
|
2.79±0.20
|
5.0±0.3
|
0.47±0.10
|
≤0.79
|
0.57±0.06
|
|
BH-HMS-M-3X-3.2-50-2.0K-Y0P0O
|
3.64±0.23
|
6.3±0.4
|
0.48±0.10
|
≤1.06
|
0.61±0.06
|
|
BH-HMS-M-3X-4.8-50-2.0K-Y0P0O
|
5.26±0.25
|
8.9±0.4
|
0.49±0.10
|
≤1.59
|
0.67±0.06
|
|
BH-HMS-M-3X-6.4-50-1.5K-Y0P0O
|
6.92±0.28
|
11.5±0.4
|
0.50±0.10
|
≤2.36
|
0.71±0.06
|
|
BH-HMS-M-3X-9.5-50-1.0K-Y0P0O
|
10.2±0.32
|
16.7±0.5
|
0.52±0.11
|
≤3.18
|
0.77±0.06
|
|
BH-HMS-M-3X-12.7-50-1.0K-Y0P0O
|
13.5±0.36
|
21.8±0.6
|
0.53±0.11
|
≤4.75
|
0.80±0.07
|
|
BH-HMS-M-3X-19-50-0.5K-Y0P0O
|
20.1±0.40
|
32.2±0.6
|
0.55±0.11
|
≤6.35
|
0.84±0.07
|
|
BH-HMS-M-3X-25-50-0.5K-Y0P0O
|
26.7±0.45
|
42.5±0.7
|
0.56±0.12
|
≤8.47
|
0.86±0.07
|
|
BH-HMS-M-3X-38-50-0. 5K-Y0P0O
|
39.8±0.51
|
63.2±0.8
|
0.57±0.12
|
≤12.9
|
0.89±0.07
|
|
BH-HMS-M-3X-51-50-0.25K-Y0P0O
|
53.0±0.56
|
83.9±0.9
|
0.57±0.13
|
≤17.2
|
0.90±0.08
|
|
BH-HMS-M-3X-76-50-0.25K-Y0P0O
|
79.4±0.56
|
125.3±1.0
|
0.57±0.13
|
≤25.8
|
0.92±0.09
|
|
Material
|
The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound
|
|
Application range
|
Military industry; Aerospace & defense; Marine,etc.
|
|
Operating temperature range
|
-55---+135℃
|
|
Minimum recovery temperature
|
+120℃
|
|
Maximum storage temperature
|
+50℃
|
|
Shrink ratio
|
2:1, 3:1
|
|
Color
|
White, Yellow, other color is available if ordered
|
|
Printing mode
|
Single sided printing and Double sided printing formats available
|
|
Supplied mode
|
Either Continuous type or Ladder format type is available
|
|
Recommended Printers
|
Either Thermal transfer printer or Laser printer is OK.
|
|
Recommended Ribbons
|
WO-80500BK resin ribbon, Black, 100mm(width)*300m(length)
|
|
Color code
|
BL
|
Br
|
R
|
Or
|
Y
|
G
|
Blu
|
V
|
Gr
|
W
|
|
Color
|
Black
|
Brown
|
Red
|
Orange
|
Yellow
|
Green
|
Blue
|
Violet
|
Grey
|
White
|
|
Note：Yellow and white are standard, other color is available if ordered.
|
|
Ordering Size
|

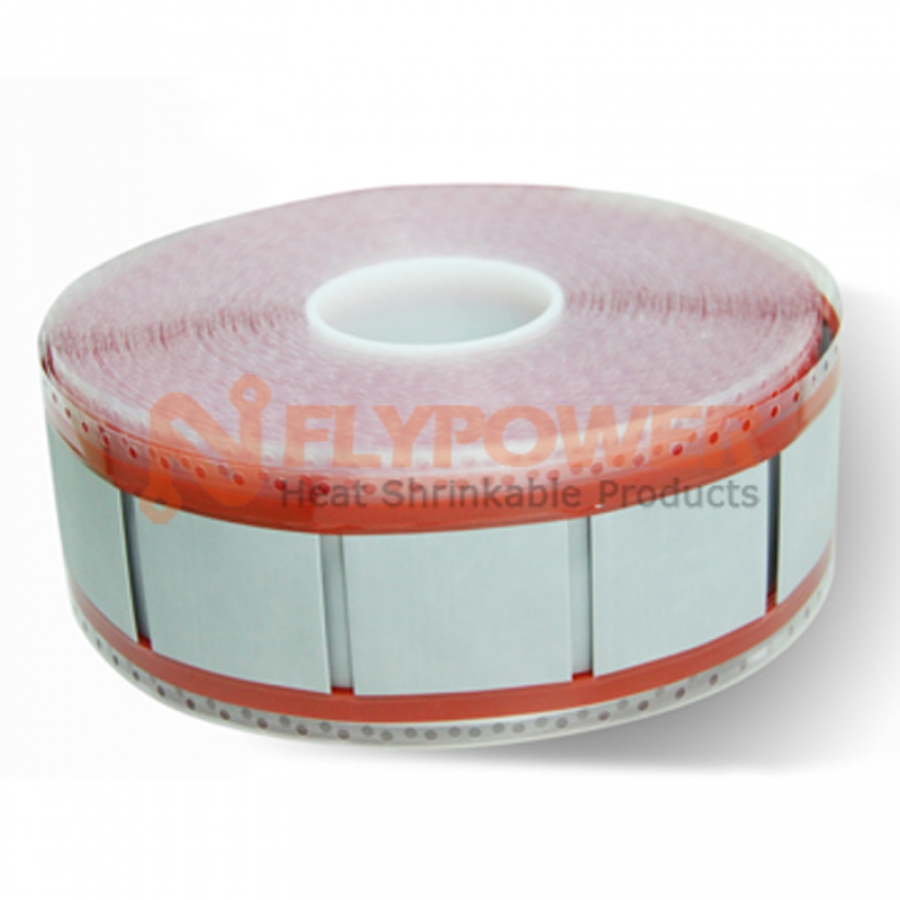

Ladder Format Type
|
Continuous Type
|
|
(BH-HMS-M-2X/3X)
|
A&B-Small Box Packing (PCS/Box)
|
A-Paper reel Packing (m/reel)
|
B-Plastic reel Packing(m/reel)
|
|
Φ1.6
|
2500
|
50
|
25
|
|
Φ2.4
|
2500
|
50
|
25
|
|
Φ3.2
|
2000
|
100
|
25
|
|
Φ4.8
|
2000
|
100
|
25
|
|
Φ6.4
|
2000
|
100
|
25
|
|
Φ9.5
|
1000
|
100
|
25
|
|
Φ12.7
|
1000
|
100
|
25
|
|
Φ19
|
500
|
100
|
25
|
|
Φ25
|
500
|
100
|
25
|
|
Φ38
|
500
|
50
|
25
|
|
Φ51
|
250
|
50
|
25
|
|
Φ76
|
250
|
50
|
—
|
