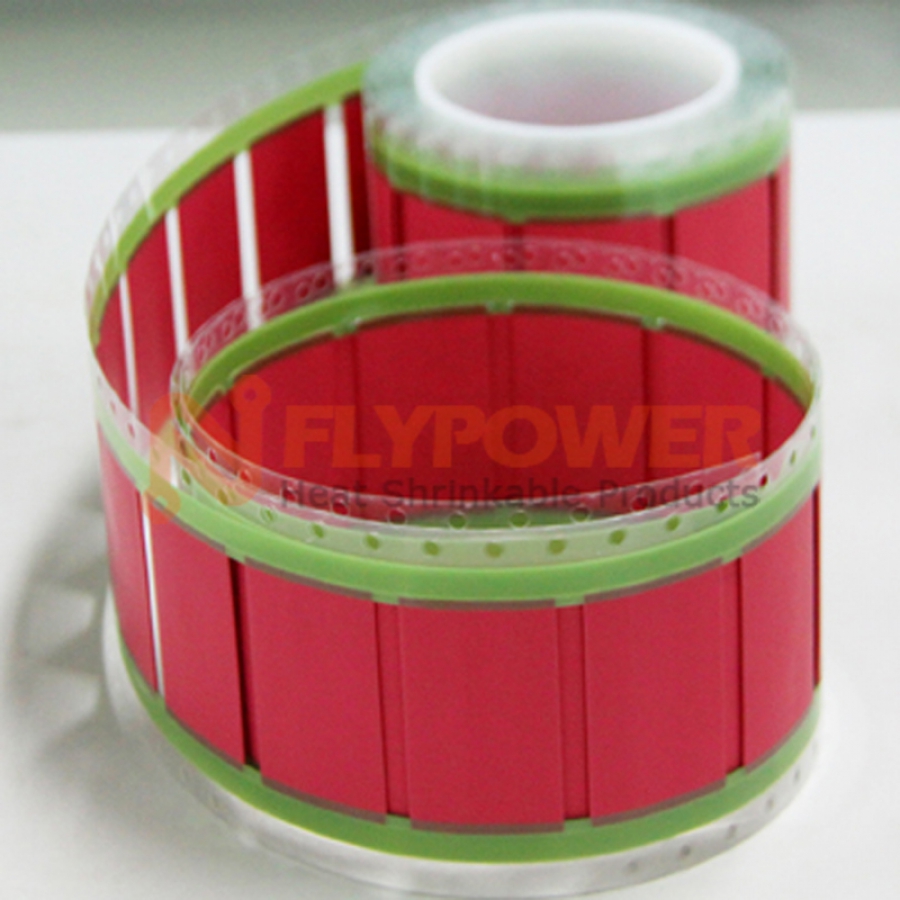

Low smoke, halogen free and flame retardant heat shrink identification marker sleeve BH-HNF

Low smoke, halogen free and flame retardant heat shrink identification marker sleeve BH-HNF
Download attachments: English BH-HNF 中文 BH-HNF
  • Applications: BH-HNF low smoke, halogen free and flame retardant heat shrink identification marker sleeve is a flattened, heat-shrinkable tubing designed for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary. The zero halogen material coupled with low smoke and low toxic fume emissions make this product perfectly used in enclosed spaces such as mass transit, marine and industrial installations.
  • Characteristics: High reliability, permanent identification;
    Heat sensitive, swift shrinking;
    Computerized printing, fonts at your disposal.
  • Operating temperature range: Operating temperature range: -40---+125℃;
    Minimum recovery temperature:+85℃;
    Maximum storage temperature:+50℃.
  • Approvals / Specifications: Meets: NF F16-101, SAE-AS 81531, MIL-STD-202F/Method 215J, RoHS etc.
  • Colors: Yellow, White, Other colors available on request

 maker sleeve

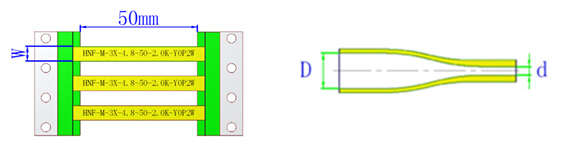

BH-HNF Shrink ratio-2X

Part Number

As Supplied (mm)

After Recovery(mm)

ID(D)

Flatten Width(w)

Double Wall Thickness

ID(d)

Single Wall Thickness

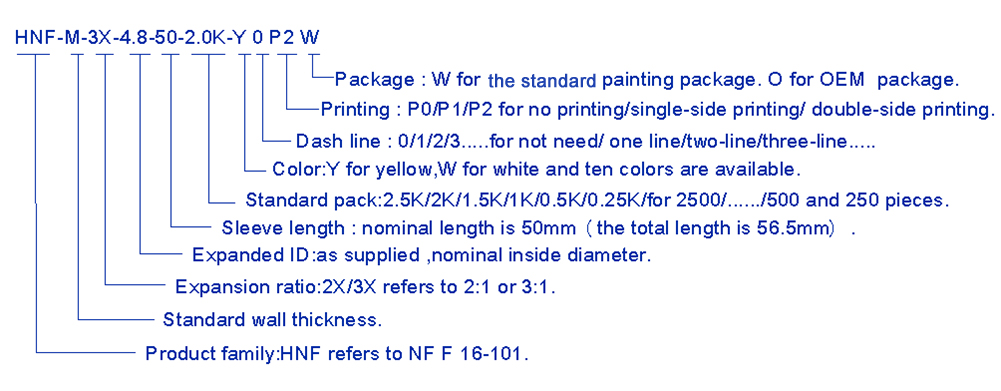

BH-HNF-M-2X-1.6-50-2.5K-Y0P0O

2.00±0.20

3.7±0.3

0.48±0.10

≤0.79

0.45±0.06

BH-HNF-M-2X-2.4-50-2.5K-Y0P0O

2.79±0.20

5.0±0.3

0.48±0.10

≤1.18

0.49±0.06

BH-HNF-M-2X-3.2-50-2.0K-Y0P0O

3.64±0.23

6.3±0.4

0.48±0.10

≤1.59

0.51±0.06

BH-HNF-M-2X-4.8-50-2.0K-Y0P0O

5.26±0.25

8.9±0.4

0.49±0.10

≤2.36

0.54±0.06

BH-HNF-M-2X-6.4-50-1.5K-Y0P0O

6.92±0.28

11.5±0.4

0.50±0.10

≤3.18

0.56±0.06

BH-HNF-M-2X-9.5-50-1.0K-Y0P0O

10.2±0.32

16.7±0.5

0.51±0.11

≤4.75

0.59±0.06

BH-HNF-M-2X-12.7-50-1.0K-Y0P0O

13.5±0.36

21.8±0.6

0.52±0.11

≤6.35

0.60±0.07

BH-HNF-M-2X-19-50-0.5K-Y0P0O

20.1±0.40

32.2±0.6

0.53±0.11

≤9.53

0.62±0.07

BH-HNF-M-2X-25-50-0.5K-Y0P0O

26.7±0.45

42.5±0.7

0.55±0.12

≤12.7

0.63±0.07

BH-HNF-M-2X-38-50-0.5K-Y0P0O

39.8±0.51

63.2±0.8

0.57±0.12

≤19.1

0.64±0.07

BH-HNF-M-2X-51-50-0.25K-Y0P0O

53.0±0.56

83.9±0.9

0.58±0.13

≤25.4

0.64±0.08

BH-HNF-M-2X-76-50-0.25K-Y0P0O

79.4±0.56

125.3±1.0

0.59±0.13

≤38.1

0.64±0.09

 BH-HNF Shrink ratio-3X

Part Number

As Supplied (mm)

After Recovery(mm)

ID(D)

Flatten Width(w)

Double Wall Thickness

ID(d)

Single Wall Thickness

BH-HNF-M-3X-1.6-50-2.5K-Y0P0O

2.00±0.20

3.7±0.3

0.47±0.10

≤0.53

0.52±0.06

BH-HNF-M-3X-2.4-50-2.5K-Y0P0O

2.79±0.20

5.0±0.3

0.47±0.10

≤0.79

0.57±0.06

BH-HNF-M-3X-3.2-50-2.0K-Y0P0O

3.64±0.23

6.3±0.4

0.48±0.10

≤1.06

0.61±0.06

BH-HNF-M-3X-4.8-50-2.0K-Y0P0O

5.26±0.25

8.9±0.4

0.49±0.10

≤1.59

0.67±0.06

BH-HNF-M-3X-6.4-50-1.5K-Y0P0O

6.92±0.28

11.5±0.4

0.50±0.10

≤2.36

0.71±0.06

BH-HNF-M-3X-9.5-50-1.0K-Y0P0O

10.2±0.32

16.7±0.5

0.52±0.11

≤3.18

0.77±0.06

BH-HNF-M-3X-12.7-50-1.0K-Y0P0O

13.5±0.36

21.8±0.6

0.53±0.11

≤4.75

0.80±0.07

BH-HNF-M-3X-19-50-0.5K-Y0P0O

20.1±0.40

32.2±0.6

0.55±0.11

≤6.35

0.84±0.07

BH-HNF-M-3X-25-50-0.5K-Y0P0O

26.7±0.45

42.5±0.7

0.56±0.12

≤8.47

0.86±0.07

BH-HNF-M-3X-38-50-0. 5K-Y0P0O

39.8±0.51

63.2±0.8

0.57±0.12

≤12.9

0.89±0.07

BH-HNF-M-3X-51-50-0.25K-Y0P0O

53.0±0.56

83.9±0.9

0.57±0.13

≤17.2

0.90±0.08

BH-HNF-M-3X-76-50-0.25K-Y0P0O

79.4±0.56

125.3±1.0

0.57±0.13

≤25.8

0.92±0.09



Material

The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound containing no halogens or cadmium in the formulation.

Application range

Industrial environment ; Rail & mass transit; Aerospace & defense; Marine;

Operating temperature range

-40---+125℃

Minimum recovery temperature

+85℃

Maximum storage temperature

+50℃

Shrink ratio

2:1, 3:1

Color

White, Yellow, other color is available if ordered

Printing mode

Single sided printing and Double sided printing formats available

Supplied mode

Either Continuous type or Ladder format type is available

Recommended Printers

Thermal transfer printer

Recommended Ribbons

WO-80500BK resin ribbon, Black, 100mm(width)*300m(length)



identification sleeve



Color code

BL

Br

R

Or

Y

G

Blu

V

Gr

W

Color

Black

Brown

Red

Orange

Yellow

Green

Blue

Violet

Grey

White

 NoteYellow and white are standard, other color is available if ordered.



Ordering Size

Ladder Format Type

Continuous Type

(BH-HNF-M-2X/3X)

A&B-Small Box Packing (PCS/Box)

A-Paper reel Packing (m/reel)

B-Plastic reel Packing(m/reel)

Φ1.6

2500

50

25

Φ2.4

2500

50

25

Φ3.2

2000

100

25

Φ4.8

2000

100

25

Φ6.4

2000

100

25

Φ9.5

1000

100

25

Φ12.7

1000

100

25

Φ19

500

100

25

Φ25

500

100

25

Φ38

500

50

25

Φ51

250

50

25

Φ76

250

50

INSULATE, SEAL, CONNECT

Heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wires, connections, joints and terminals in electrical work.It is widely applied in the field of electronics,telecommunication,power energy,automobile and so on.
